Programmation : programmer les contours
6.4
Contournage : coordonnées cartésiennes
6
192
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013

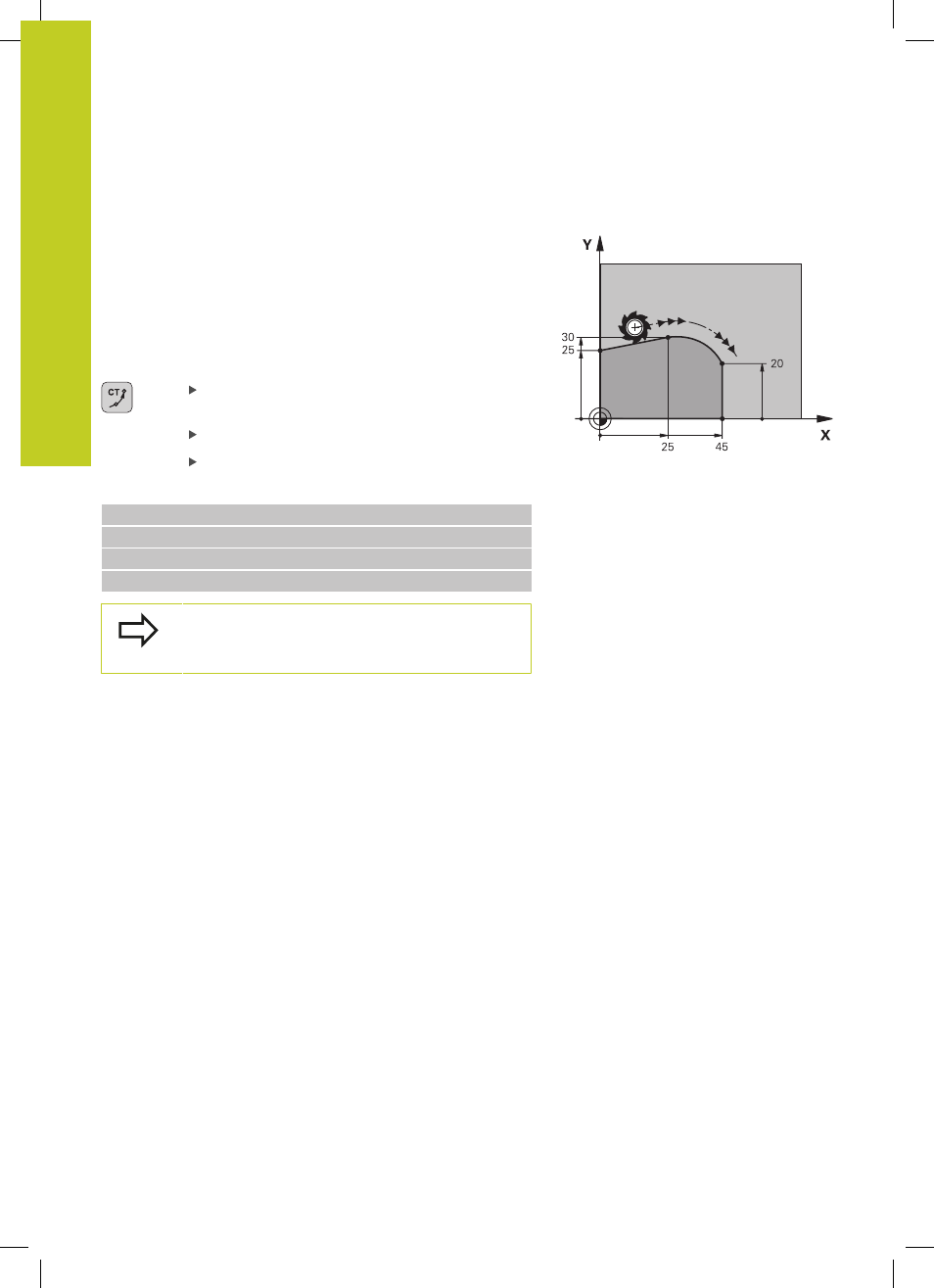

Trajectoire circulaire CT avec raccordement tangentiel
L'outil se déplace sur un arc de cercle tangent à l'élément de
contour programmé précédemment.
Un raccordement est "tangentiel" si aucune discontinuité ni
angle vif n'existent au point de contact des éléments, ceux-ci
s'enchaînant d'une manière continue.
Programmez directement avant la séquence
CT l'élément de
contour auquel se raccorde l'arc de cercle tangent. Pour cela, au
moins deux séquences de positionnement sont nécessaires
Coordonnées du point final de l'arc de cercle, si
nécessaire :
Avance F
Fonction auxiliaire M
Exemple de séquences CN
7 L X+0 Y+25 RL F300 M3
8 L X+25 Y+30
9 CT X+45 Y+20
10 L Y+0
La séquence
CT et l'élément de contour programmé
avant doivent contenir les deux coordonnées du plan
dans lequel l’arc de cercle doit être exécuté !
