Exemple : déplacement circulaire en cartésien – HEIDENHAIN TNC 320 (34055x-06) Manuel d'utilisation
Page 194
![background image](/files/815992/content/doc194.png)
Programmation : programmer les contours
6.4
Contournage : coordonnées cartésiennes
6
194
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013

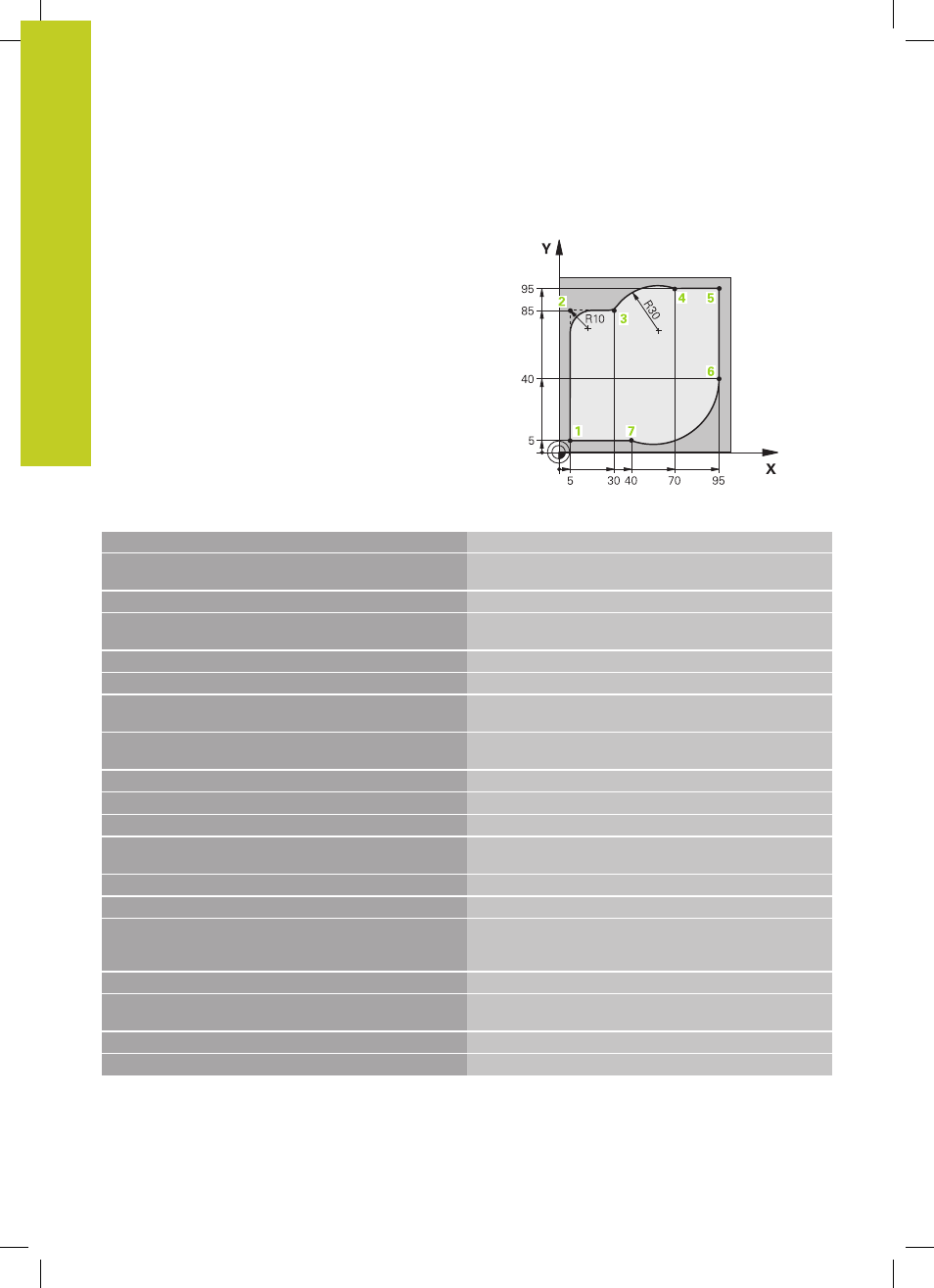

Exemple : déplacement circulaire en cartésien
0 BEGIN PGM CIRCULAIR MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
Définition de la pièce brute pour simulation graphique de
l’usinage
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S4000
Appel d’outil avec axe de broche et vitesse de rotation
broche
4 L Z+250 R0 FMAX
Dégager l’outil dans l’axe de broche en avance rapide FMAX
5 L X-10 Y-10 R0 FMAX
Prépositionner l’outil
6 L Z-5 R0 F1000 M3
Déplacement à la profondeur d’usinage avec l'avance
F = 1000 mm/min.
7 APPR LCT X+5 Y+5 R5 RL F300
Aborder le contour au point 1 sur une trajectoire circulaire
avec raccordement tangentiel
8 L X+5 Y+85
Point 2 : première droite au point 2
9 RND R10 F150
Insérer un rayon R = 10 mm, avance : 150 mm/min.
10 L X+30 Y+85
Aborder le point 3 : point initial du cercle avec CR
11 CR X+70 Y+95 R+30 DR-
Aborder le point 4 : point final du cercle avec CR,
rayon 30 mm
12 L X+95
Aller au point 5
13 L X+95 Y+40
Aller au point 6
14 CT X+40 Y+5
Aller au point 7: point final du cercle, arc de cercle avec
raccordement tangentiel au point 6, la TNC calcule
automatiquement le rayon
15 L X+5
Aller au dernier point du contour 1
16 DEP LCT X-20 Y-20 R5 F1000
Quitter le contour sur trajectoire circulaire avec raccord.
tangentiel
17 L Z+250 R0 FMAX M2
Dégager l'outil, fin du programme
18 END PGM CIRCULAR MM
