La fonction PLANE : Inclinaison du plan d'usinage
(option de logiciel 1)
11.2
11
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
365

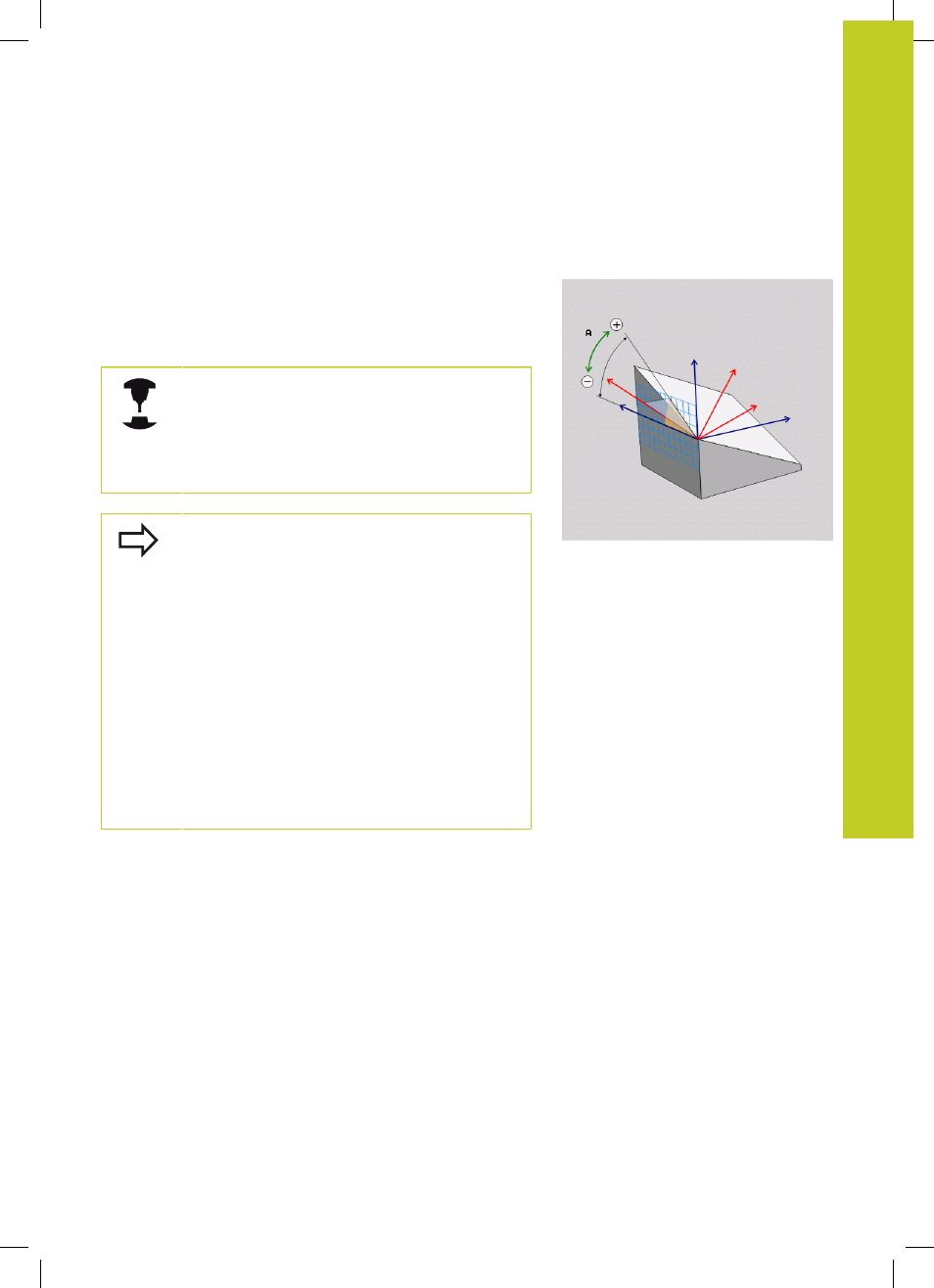

Définir le plan d'usinage avec l'angle de l'axe :
PLANE AXIAL (Fonction FCL 3)
Application
La fonction
PLANE AXIAL définit à la fois la position du plan
d’usinage et les coordonnées nominales des axes rotatifs. Cette
fonction est facile à mettre en œuvre, notamment sur les machines
avec cinématiques orthogonales et avec cinématiques avec un seul
axe rotatif actif.
Vous pouvez aussi utiliser la fonction
PLANE AXIAL si
un seul axe rotatif est actif sur votre machine.
Vous pouvez utiliser la fonction
PLANE RELATIV
après la fonction
PLANE AXIAL si votre machine
autorise des définitions d'angles dans l'espace.
Consultez le manuel de votre machine.
Remarques avant de programmer
N'introduire que des angles d'axes réellement
présents sur votre machine; sinon la TNC délivre un
message d'erreur.
Les coordonnées d’axes rotatifs définies avec
PLANE AXIAL sont modales. Les définitions
multiples se cumulent donc, l'introduction de valeurs
incrémentales est autorisée.
Pour annuler la fonction
PLANE AXIAL, utiliser
la fonction
PLANE RESET. Une annulation en
introduisant 0 ne désactive pas
PLANE AXIAL.
Les fonctions
SEQ, TABLE ROT et COORD ROT sont
inactives avec
PLANE AXIAL.
