Correction du rayon d'outil, Correction d'outil 5.3 – HEIDENHAIN TNC 320 (34055x-06) Manuel d'utilisation
Page 165
![background image](/files/815992/content/doc165.png)
Correction d'outil
5.3
5
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
165

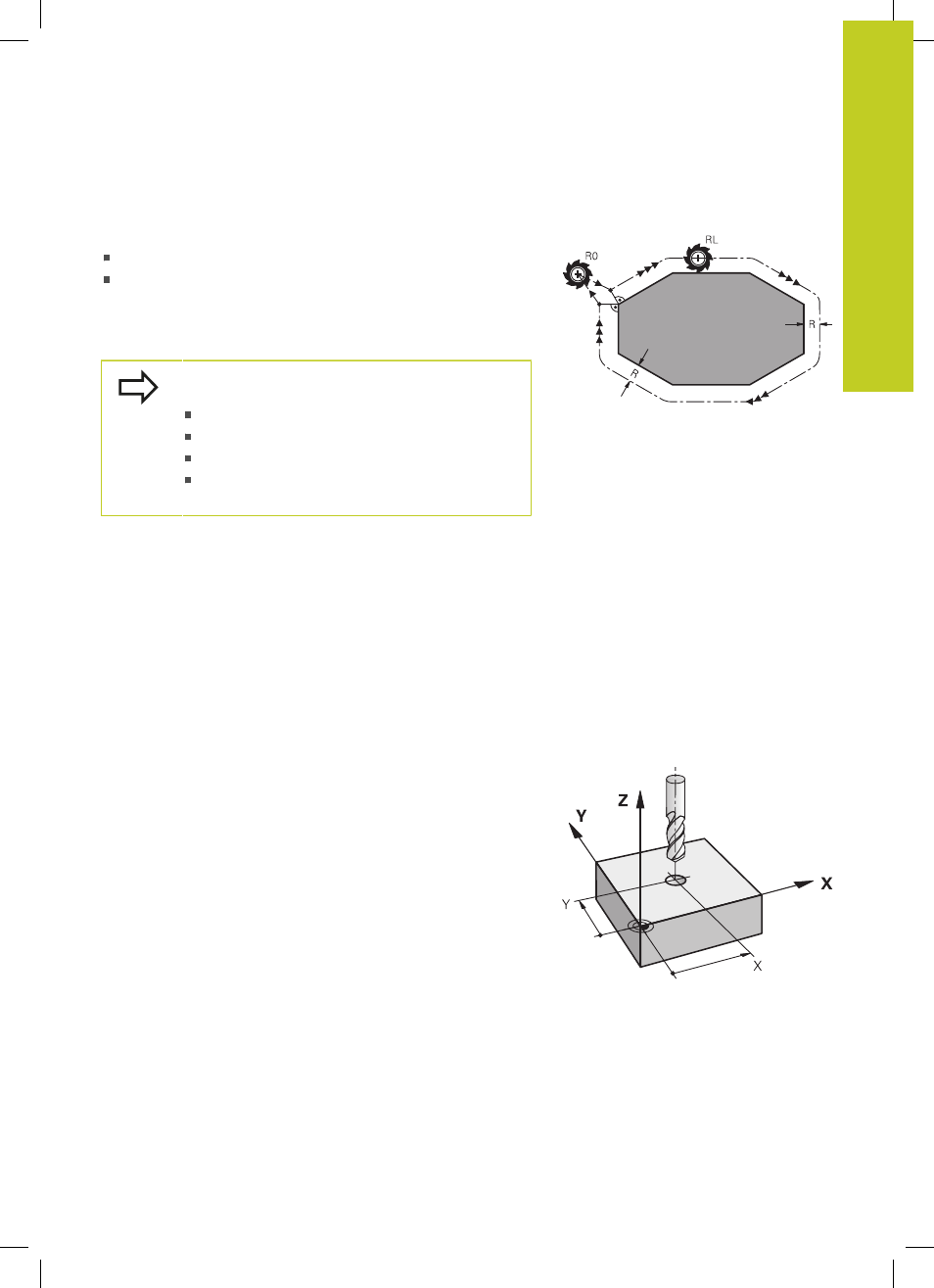

Correction du rayon d'outil
La séquence de programme pour un déplacement d’outil contient :
RL ou RR pour une correction de rayon
R0 si aucune correction de rayon ne doit être appliquée
La correction de rayon est active dès qu’un outil est appelé et
déplacé dans une séquence linéaire dans le plan d’usinage avec
RL
ou
RR.
La TNC annule la correction de rayon dans le cas où
vous :
programmez une séquence linéaire avec
R0
quittez le contour par la fonction
DEP
programmez un
PGM CALL
sélectionnez un nouveau programme avec PGM
MGT
Pour la correction de rayon, la TNC tient compte des valeurs Delta
contenues à la fois dans la séquence
TOOL CALL et dans le tableau
d'outils :
Valeur de correction =
R + DR
TOOL CALL
+
DR
TAB
avec
R :
Rayon d'outil
R de la séquence TOOL DEF ou du
tableau d'outils
DR
TOOL CALL
: Surépaisseur
DR pour rayon de la séquence TOOL
CALL
DR
TAB
:
Surépaisseur
DR du rayon du tableau d'outils
Contournages sans correction de rayon : R0
Dans le plan d'usinage, le centre d'outil suit le contour programmé
ou se positionne aux coordonnées programmées.
Application : perçage, prépositionnement.
