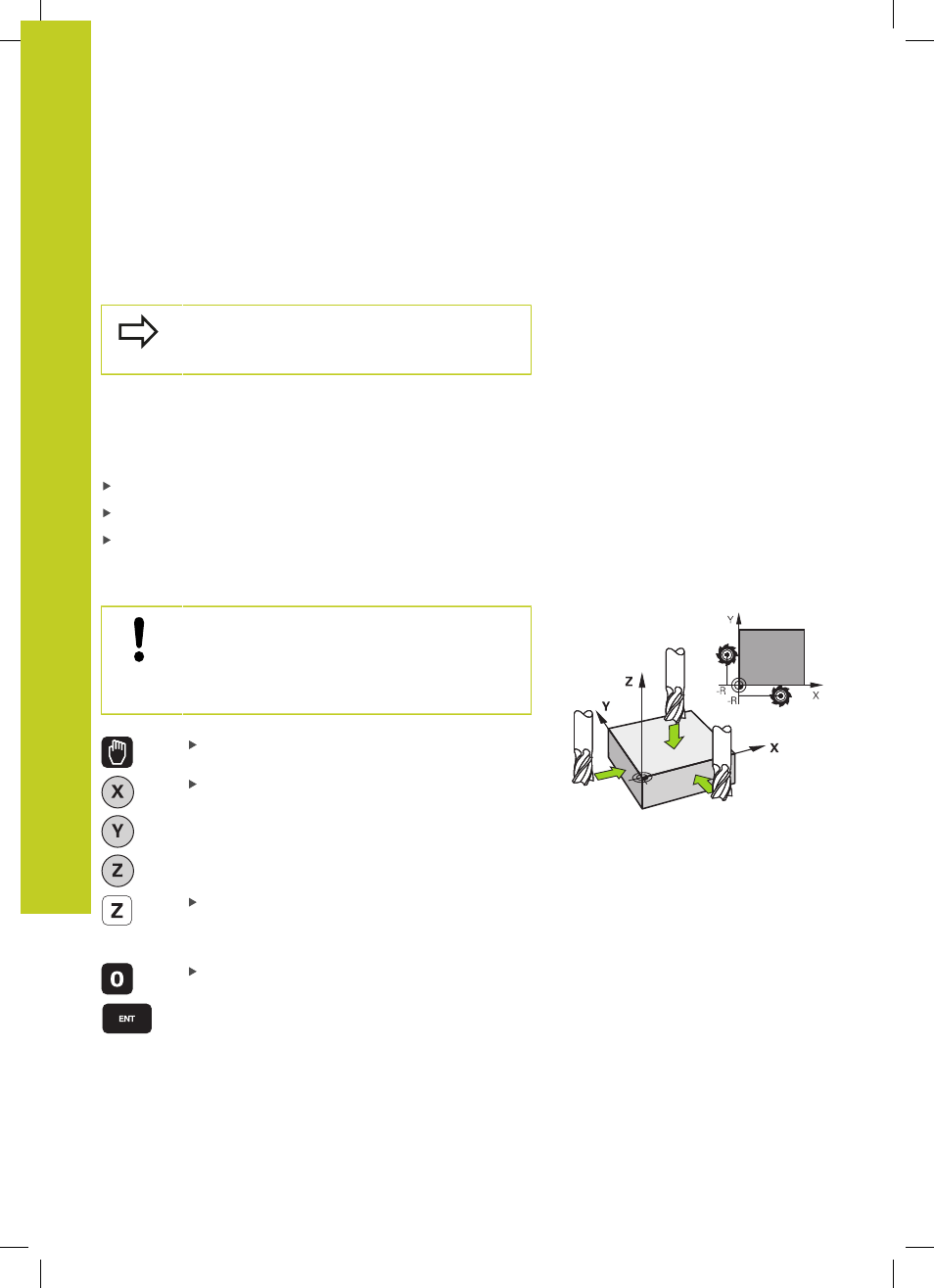

Mode manuel et réglages
12.4 Initialiser le point d'origine sans palpeur 3D
12
394
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
12.4
Initialiser le point d'origine sans
palpeur 3D
Remarque
Initialisation du point d'origine avec palpeur 3D :
voir "Initialiser le point d'origine avec le palpeur 3D
(Option de logiciel Touch probe functions)".
Lors de l'initialisation du point d'origine, vous initialisez l'affichage
de la TNC aux coordonnées d'une position pièce connue.
Opérations préalables
Fixer la pièce et la dégauchir
Mettre en place l'outil zéro dont le rayon est connu
S'assurer que la TNC affiche bien les positions effectives
Initialiser le point d'origine avec les touches d'axes
Mesure de protection
Si l'outil ne doit pas toucher la surface de la pièce,
il faut utiliser une cale d'épaisseur d. Pour le point
d'origine, introduisez une valeur additionnée de
l'épaisseur d de la cale.
Sélectionner le
MODE MANUEL
Déplacer l'outil avec précaution jusqu'à ce qu'il
touche la pièce (l'effleure)
Sélectionner l'axe
INITIALISATION DU POINT D'ORIGINE Z =
Outil zéro, axe de broche : initialiser l'affichage à
une position pièce connue (p. ex.0) ou introduire
l'épaisseur d de la cale. Dans le plan d'usinage :
tenir compte du rayon d'outil
De la même manière, initialiser les points d'origine des autres axes.
Si vous utilisez un outil préréglé dans l'axe de plongée, initialisez
l'affichage de l'axe de plongée à la longueur L de l'outil ou à la
somme Z=L+d.
