HEIDENHAIN TNC 320 (34055x-06) Manuel d'utilisation
Page 355
![background image](/files/815992/content/doc355.png)
La fonction PLANE : Inclinaison du plan d'usinage
(option de logiciel 1)
11.2
11
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
355

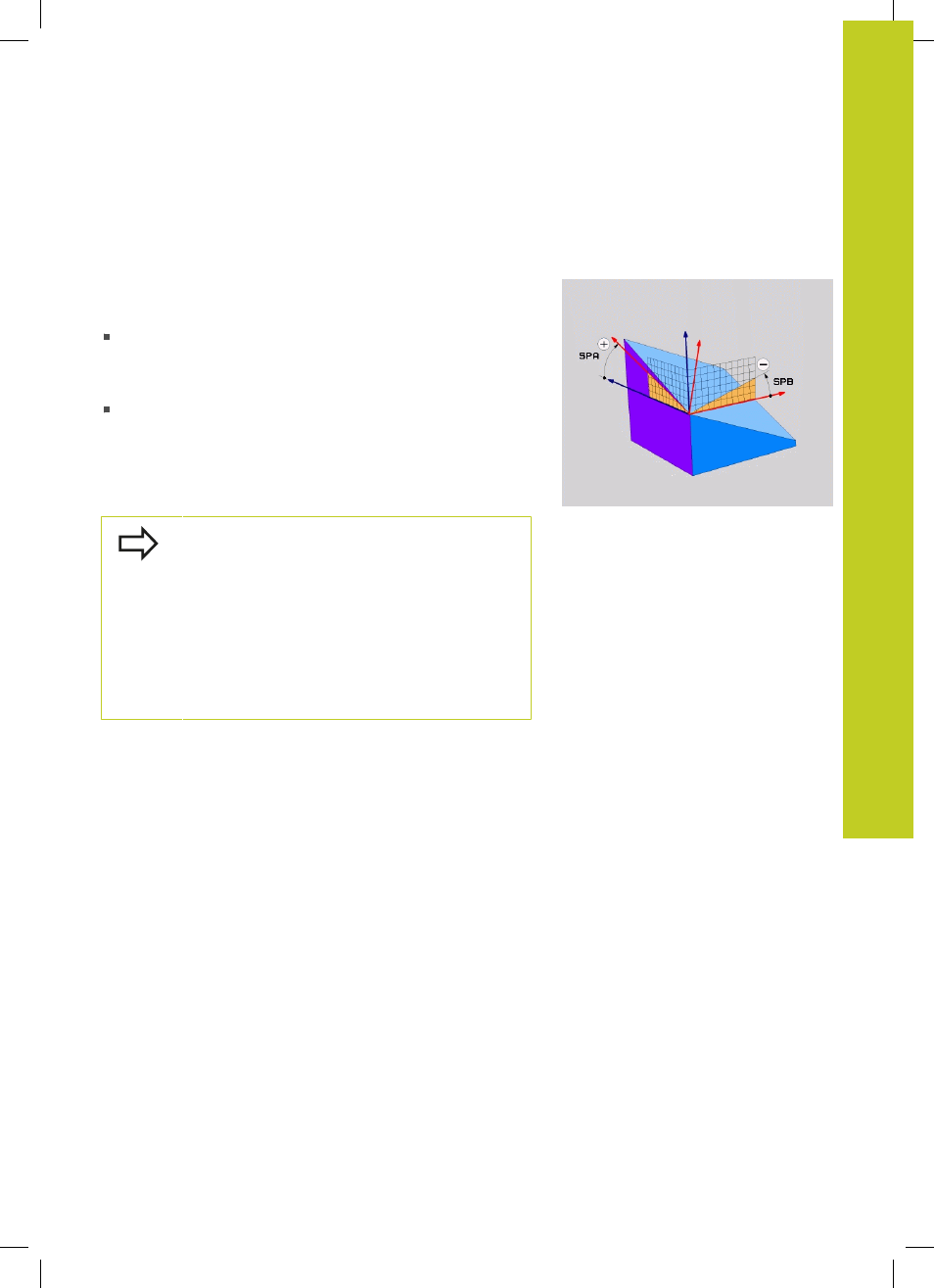

Définir le plan d'usinage via l'angle dans l'espace
PLANE SPATIAL
Application
Un angle dans l'espace défini un plan d'usinage avec jusqu'à
trois rotations du système de coordonnées. Deux méthodes de
construction mènent au même résultat.
Rotations autour du système de coordonnées de la
machine :
Dans l'ordre, il y a d'abord une rotation autour de
l'axe machine C, puis de l'axe machine B et enfin de l'axe
machine A.
Rotations autour du système de coordonnées incliné :
Dans
l'ordre, il y a d'abord une rotation autour de l'axe machine C,
puis de l'axe orienté B et enfin de l'axe orienté A. Ce point
de vue est en général plus compréhensible car le suivi des
rotations du référentiel est plus facile avec des axes rotatifs
fixes.
Remarques avant de programmer
Vous devez toujours définir les trois angles dans
l'espace
SPA, SPB et SPC, même si l'un d'entre eux
est égal à 0.
La méthode correspond au cycle 19, à condition que
les données introduites dans le cycle 19 se réfèrent
aux angles dans l'espace.
