Exemples de programmation
7.6
7
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
235

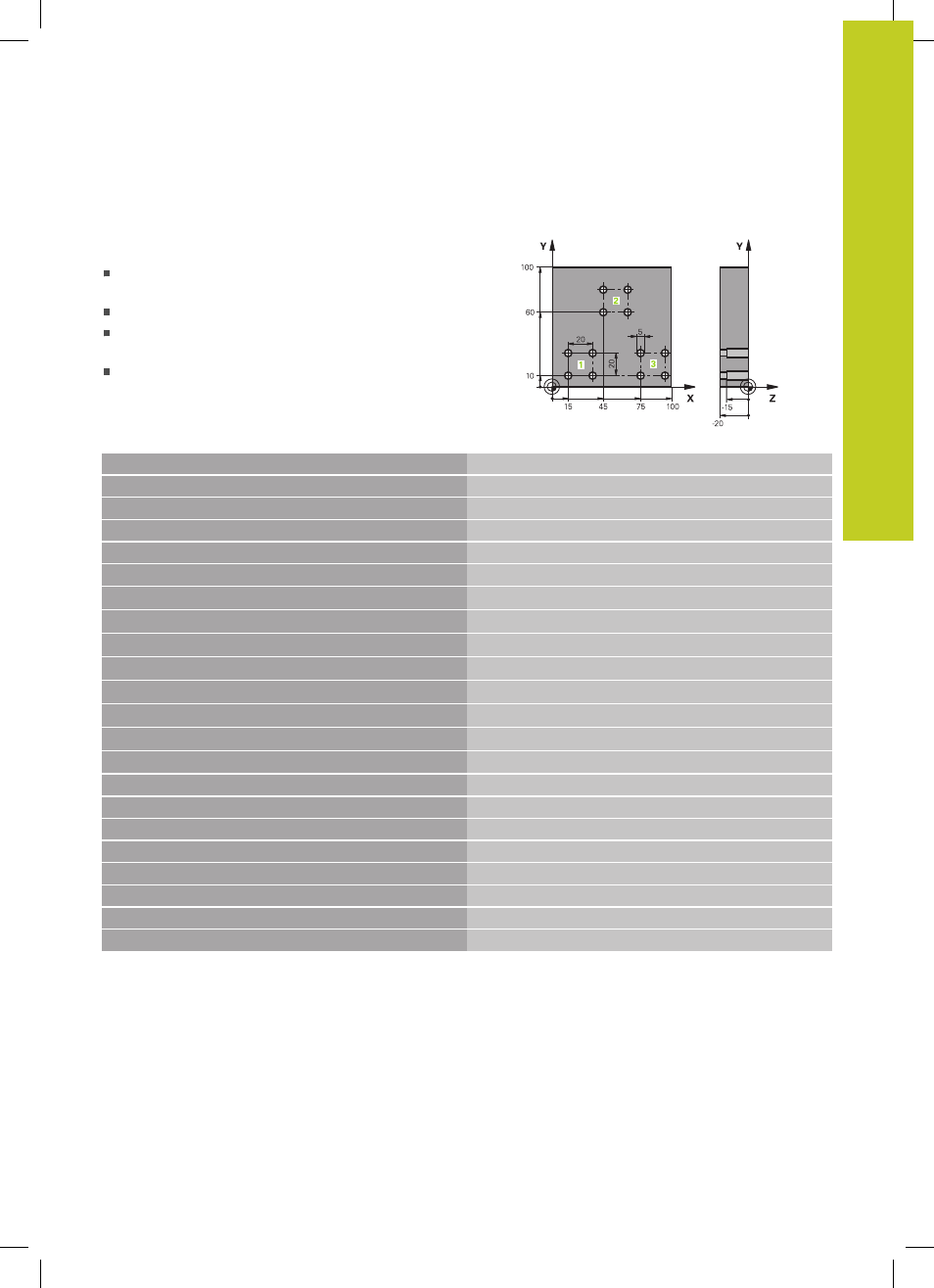

Exemple : groupe trous avec plusieurs outils
Déroulement du programme :
Programmer les cycles d’usinage dans le programme
principal
Appeler le groupe de trous (sous-programme 1)
Aller au groupe de trous dans le sous-programme 1,
appeler le groupe de trous (sous-programme 2)
Ne programmer le groupe de trous qu'une seule fois
dans le sous-programme 2
0 BEGIN PGM SP2 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S5000
Appel d’outil pour le foret à centrer
4 L Z+250 R0 FMAX
Dégager l'outil
5 CYCL DEF 200 PERÇAGE
Définition du cycle de centrage
Q200=2
;DISTANCE D'APPROCHE
Q202=-3
;PROFONDEUR
Q206=250
;F PLONGÉE PROF.
Q202=3
;PROFONDEUR DE PASSE
Q210=0
;TEMPO. EN HAUT
Q203=+0
;COORD. SURFACE PIÈCE
Q204=10
;2. DISTANCE D'APPROCHE
Q211=0.25
;TEMPO AU FOND
6 CALL LBL 1
Appeler sous-programme 1 de la figure de trous complète
7 L Z+250 R0 FMAX M6
Changement d'outil
8 TOOL CALL 2 Z S4000
Appel d’outil , foret
9 FN 0: Q201 = -25
Nouvelle profondeur de perçage
10 FN 0: Q202 = +5
Nouvelle passe de perçage
11 CALL LBL 1
Appeler sous-programme 1 de la figure de trous complète
12 L Z+250 R0 FMAX M6
Changement d'outil
13 TOOL CALL 3 Z S500
Appel d’outil, alésoir
