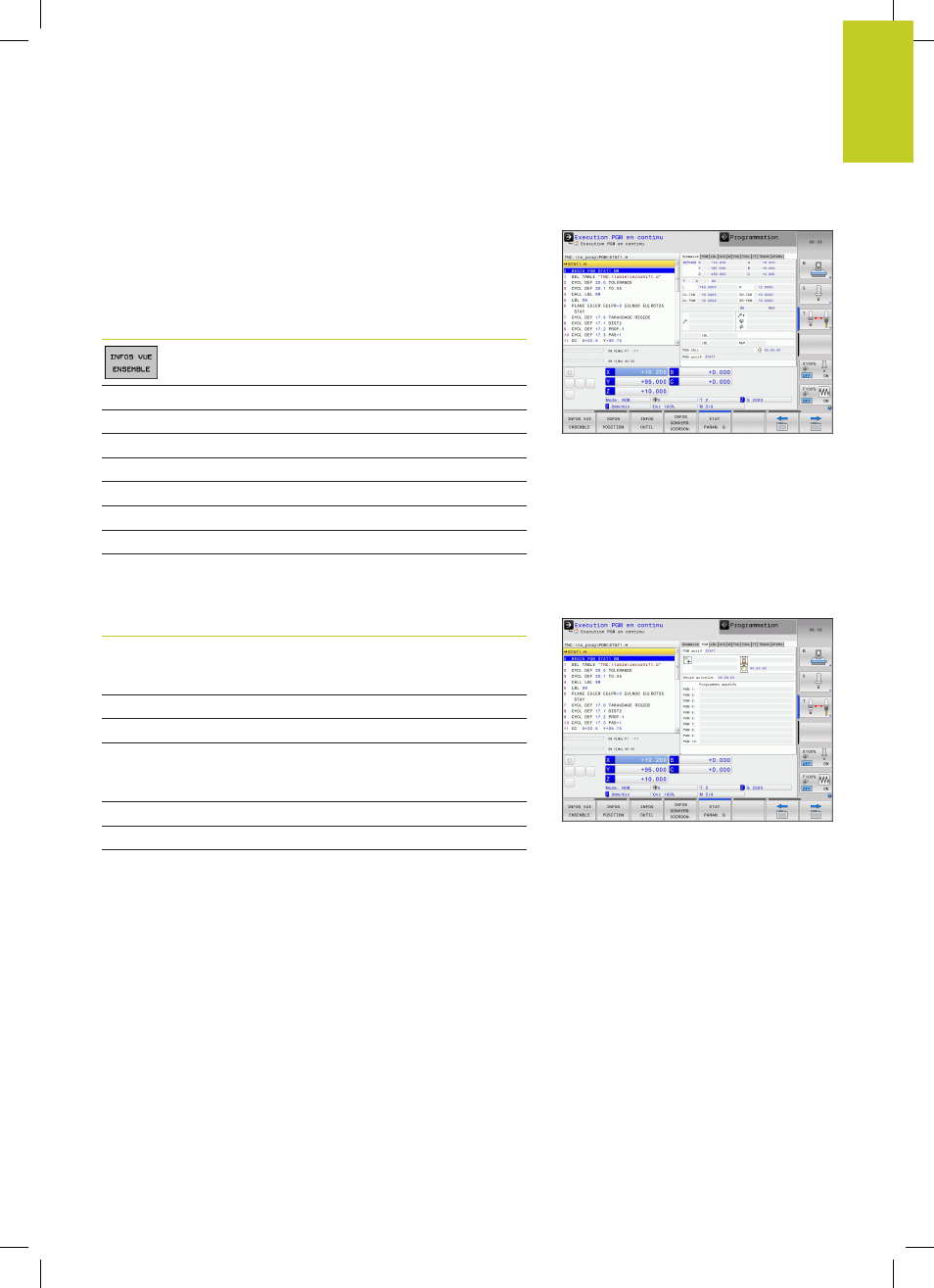

Affichage d'état
2.4
2
TNC 320 | Manuel utilisateur Programmation en DIN/ISO | 7/2014
71
Résumé
Après sa mise sous tension, la TNC affiche le formulaire d'état
Sommaire dans la mesure où vous avez sélectionné le partage
d'écran
PROGRAMME+INFOS (ou POSITION + INFOS). Le formulaire
Sommaire récapitule les principales informations d’état également
disponibles dans les formulaires détaillés.
Softkey
Signification
Affichage de position
Informations sur l'outil
Fonctions M actives
Transformations des coordonnées actives
Sous-programme actif
Répétition de parties de programme active
Programme appelé avec
PGM CALL
Temps d'usinage actuel
Nom du programme principal courant
Informations générales sur le programme (onglet PGM)
Softkey
Signification
Sélection
directe
impossible
Nom du programme principal actif
Centre de cercle CC (pôle)
Chronomètre pour temporisation
Temps d'usinage lorsque le programme a été
complètement simulé dans le mode
Test de
programme.
Temps d'usinage actuel en %
Heure actuelle
Programmes appelés
