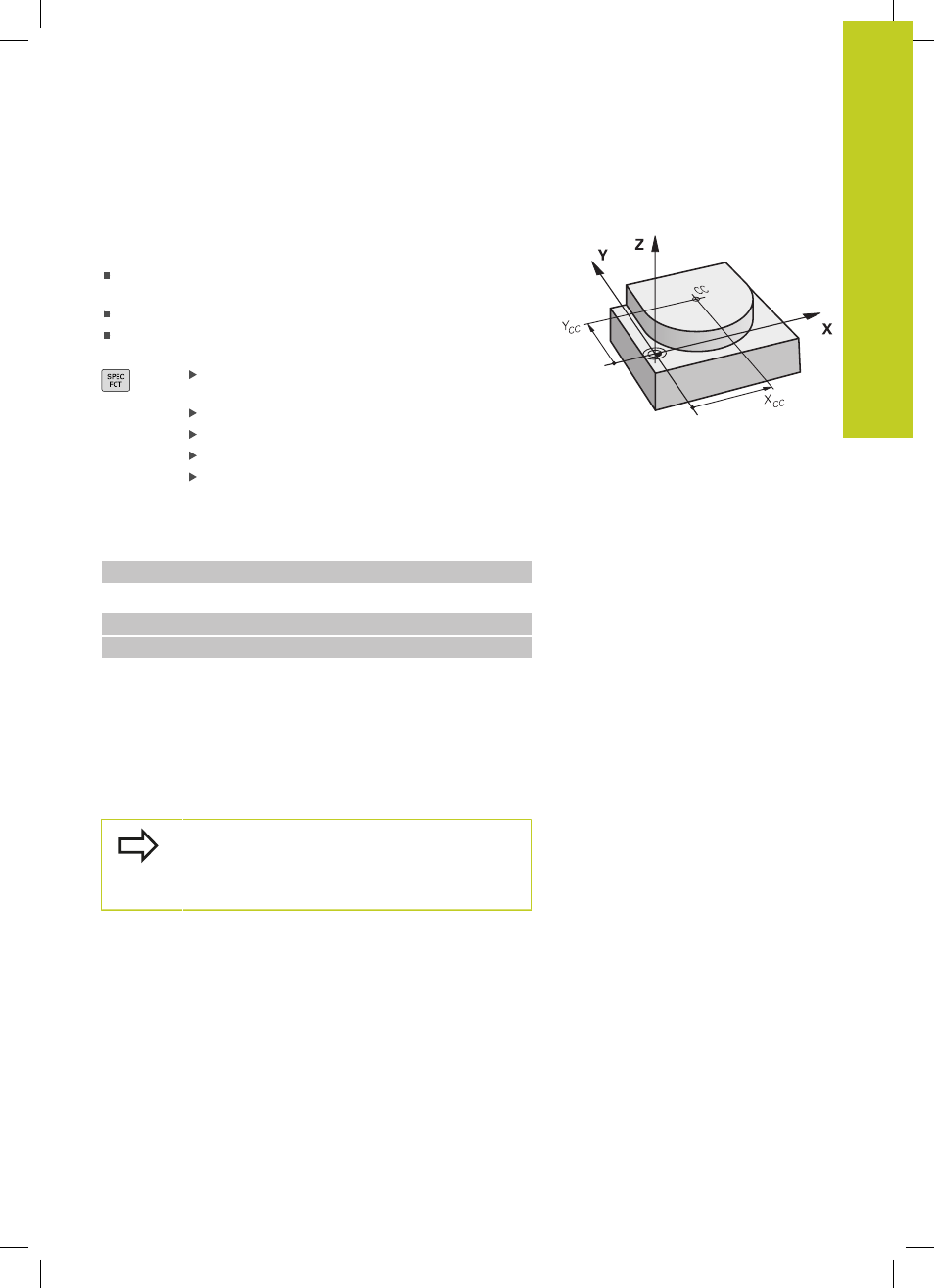

Contournage : coordonnées cartésiennes
6.4
6
TNC 320 | Manuel utilisateur Programmation en DIN/ISO | 7/2014
199
Centre de cercle I, J
Vous définissez le centre du cercle des trajectoires circulaires que
vous programmez avec les fonctions
G02, G03 ou G05. Pour cela :
introduisez les coordonnées cartésiennes du centre du cercle
dans le plan d'usinage ou
validez la dernière position programmée ou
Valider les coordonnées avec la touche "
Validation de la
position effective"
Programmer le centre du cercle : Appuyer sur la
touche SPEC FCT
Choisir la softkey FONCTIONS PROGRAMME
Choisir la softkey DIN/ISO
Choisir la softkey I ou J
Introduire les coordonnées du centre de cercle
ou, pour valider la dernière position programmée,
N'entrer
G29
Exemple de séquences CN
N50 I+25 J+25 *
ou
N10 G00 G40 X+25 Y+25 *
N20 G29 *
Les lignes 10 et 11 du programme ne se réfèrent pas à la figure.
Validité
Le centre du cercle reste valable jusqu'à ce que vous programmiez
un nouveau centre de cercle.
Introduire le centre de cercle en incrémental
Une coordonnée en incrémental du centre du cercle se réfère
toujours à la dernière position d'outil programmée.
Avec
CC, vous désignez une position de centre de
cercle : l'outil ne se déplace pas à cette position.
Le centre du cercle sert également de pôle pour les
coordonnées polaires.
