Voir "exemple – HEIDENHAIN TNC 320 (77185x-01) ISO programming Manuel d'utilisation
Page 204
![background image](/files/816032/content/doc204.png)
Programmation : programmer les contours
6.4
Contournage : coordonnées cartésiennes
6
204
TNC 320 | Manuel utilisateur Programmation en DIN/ISO | 7/2014

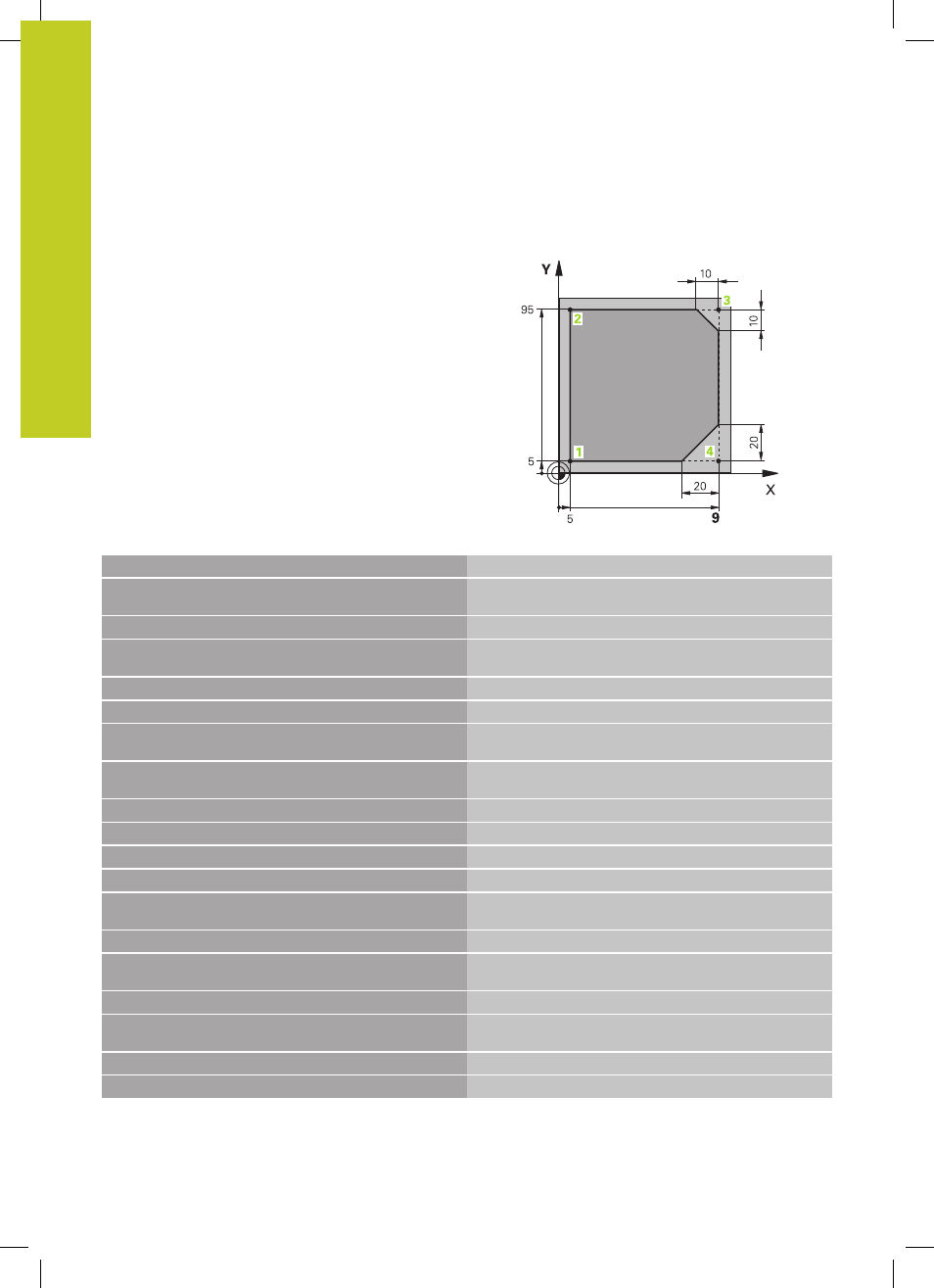

Exemple : déplacement linéaire et chanfrein en
coordonnées cartésiennes
%LINÉAIRE G71 *
N10 G30 G17 X+0 Y+0 Z-20 *
Définition de la pièce brute pour simulation graphique de
l’usinage
N20 G31 G90 X+100 Y+100 Z+0 *
N30 T1 G17 S4000 *
Appel d’outil avec axe de broche et vitesse de rotation
broche
N40 G00 G40 G90 Z+250 *
Dégager l’outil dans l’axe de broche en avance rapide
N50 X-10 Y-10 *
Prépositionner l’outil
N60 G01 Z-5 F1000 M3 *
Déplacement à la profondeur d’usinage avec l'avance
F = 1000 mm/min.
N70 G01 G41 X+5 Y+5 F300 *
Aborder le contour au point 1, activer correction de rayon
G41
N80 G26 R5 F150 *
Approche tangentielle
N90 Y+95 *
Positionnement au point 2
N100 X+95 *
Point 3 : première droite du coin 3
N110 G24 R10 *
Programmer un chanfrein de longueur 10 mm
N120 Y+5 *
Point 4 : deuxième droite du coin 3, première droite du
coin 4
N130 G24 R20 *
Programmer un chanfrein de longueur 20 mm
N140 X+5 *
Accoster le dernier point 1 du contour, deuxième droite du
coin 4
N150 G27 R5 F500 *
Sortie tangentielle
N160 G40 X-20 Y-20 F1000 *
Dégager l'outil dans le plan d'usinage, annuler la correction
de rayon
N170 G00 Z+250 M2 *
Dégager l'outil, fin du programme
N99999999 %LINÉAIRE G71 *
