Multi-Contact MA213 - Manuel (Page 11)

Advanced Contact Technology
www.multi-contact.com 11 / 16
L
2
R
5
39
=
=
L
1
Ø 4,2
L1 = L + 22mm
L2 = L + 33mm
21
C
om
bi
Ta
c
M
C
C
om
biT
ac
M
C
22
*
*
*
*
*

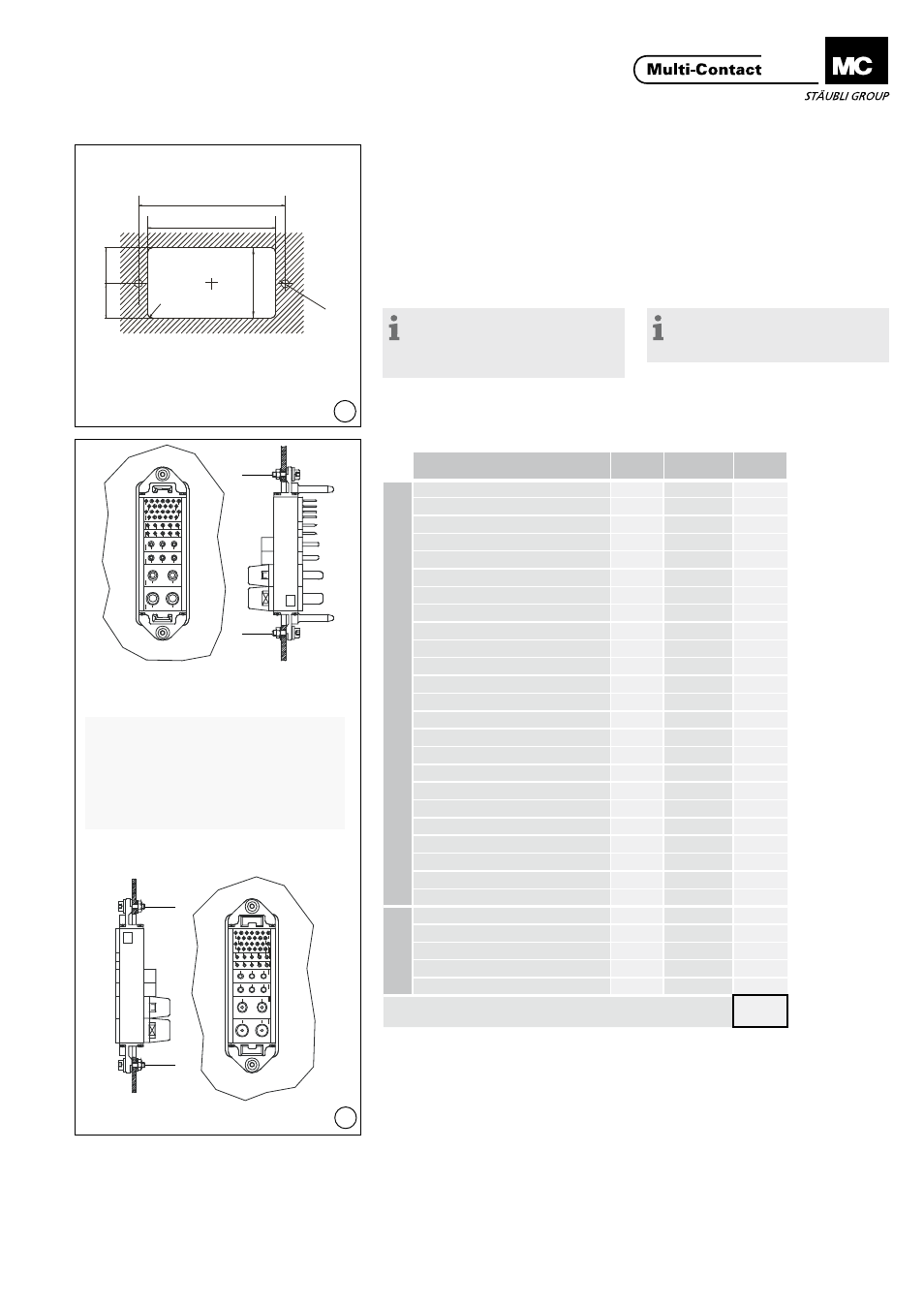

Fixation des connecteurs sur
panneaux Fixing the connectors on
supports
(ill. 21)
Les cotes de découpe et de perçage
des panneaux ont été définies de telle
sorte que les connecteurs peuvent ab-
sorber des écarts de position de 2mm
sur les axes x et y�
(ill. 21)
The recess and borehole diameters
are such that the connecting elements
can absorb positioning errors of 2mm
in the x and y directions�
Remarque:
Longueur minimale L = 18mm.
Si nécessaire, compléter avec des
entretoises.
Note:
Minimal length L = 18mm. If
required fill up with spacers.
Berechnung des Masses L Calculation of dimension L
(ill. 22)
Accessoires de fixation: 1)
■
2 vis M4x16 (DIN 912), (Longueur
des vis pour panneau d’épaisseur
2 – 5mm)
■
2 écrous M4 (DIN 934)
■
2 rondelles M4 (DIN 125A)
(ill. 22)
Securing material: 1)
■
2 screws M4x16 (DIN 912), (Screw
length for panel thickness 2 – 5mm)
■
2 nuts M4 (DIN 934)
■
2 washers M4 (DIN 125A)
1) Non livrés 1) not included
Type
Type
Nombre
Number
Largeur
Width
Support de contacts Contact carrier
s
CT-E8-2 x 18mm =
CT-E8/6-1 x 16mm =
CT-E8/6-PE x 16mm =
CT-E6-2 x 16mm =
CT-E3-3 x 10mm =
CT-E3/PCB x 10mm =
CT-E3-2+PE x 10mm =
CT-E1,5-5 x 6mm =
CT-E1-26/B, CT-E1-26/S x 18mm =
CT-E1-15/B, CT-E1-15/S x 20mm =
CT-E1-6 x 4mm =
CT-E-3POF/B, CT-E-3POF/S x 6mm =
CT-E-2TH+PE/B, CT-E-2TH+PE/S x 6mm =
CT-E8-4/B, CT-E8-4/S x 30mm =
CT-E-UCT06-1 x 18mm =
CT-E-UCT06-2 x 28mm =
CT-E-UCT06-4 x 42mm =
CT-E-UCT08-1 x 22mm =
CT-E-UCT08-2 x 42mm =
CT-E12-1/... x 30mm =
CT-E3-1/HV-... x 18mm =
CT-E3-2/HV-... x 18mm =
CT-E-4GOF x 6mm =
CT-E0,6-20/... x 5,05mm =
Entretoises Spacer
s
CT-DIP1 x 1mm =
CT-DIP2 x 2mm =
CT-DIP3 x 3mm =
CT-DIP4 x 4mm =
CT-DIP4/2 x 4mm =
Somme des largeurs (min. 18mm)
Sum of the widths (min. 18mm) L =
Tolérances: ± 0,1mm
Dimensional tolerances: ± 0,1mm
Tab. 3
* Couple de serrage 2 Nm
* Tightening torque 2 Nm
Recommandation:
Sécuriser avec de la colle anaérobie
frein-filet de résistance moyenne.
Recommandation:
Secure with medium strength anaerobic
screw retention glue.
