35
CARE AND MAINTENANCE
ORIFICE CLEANING:
With the burner removed, remove the orifice and shine a flashlight through the opening to ensure there is no
blockage. Use a needle to clear any debris. Be extremely careful not to enlarge the hole or break off the needle.
See Fig. 65.
Note:

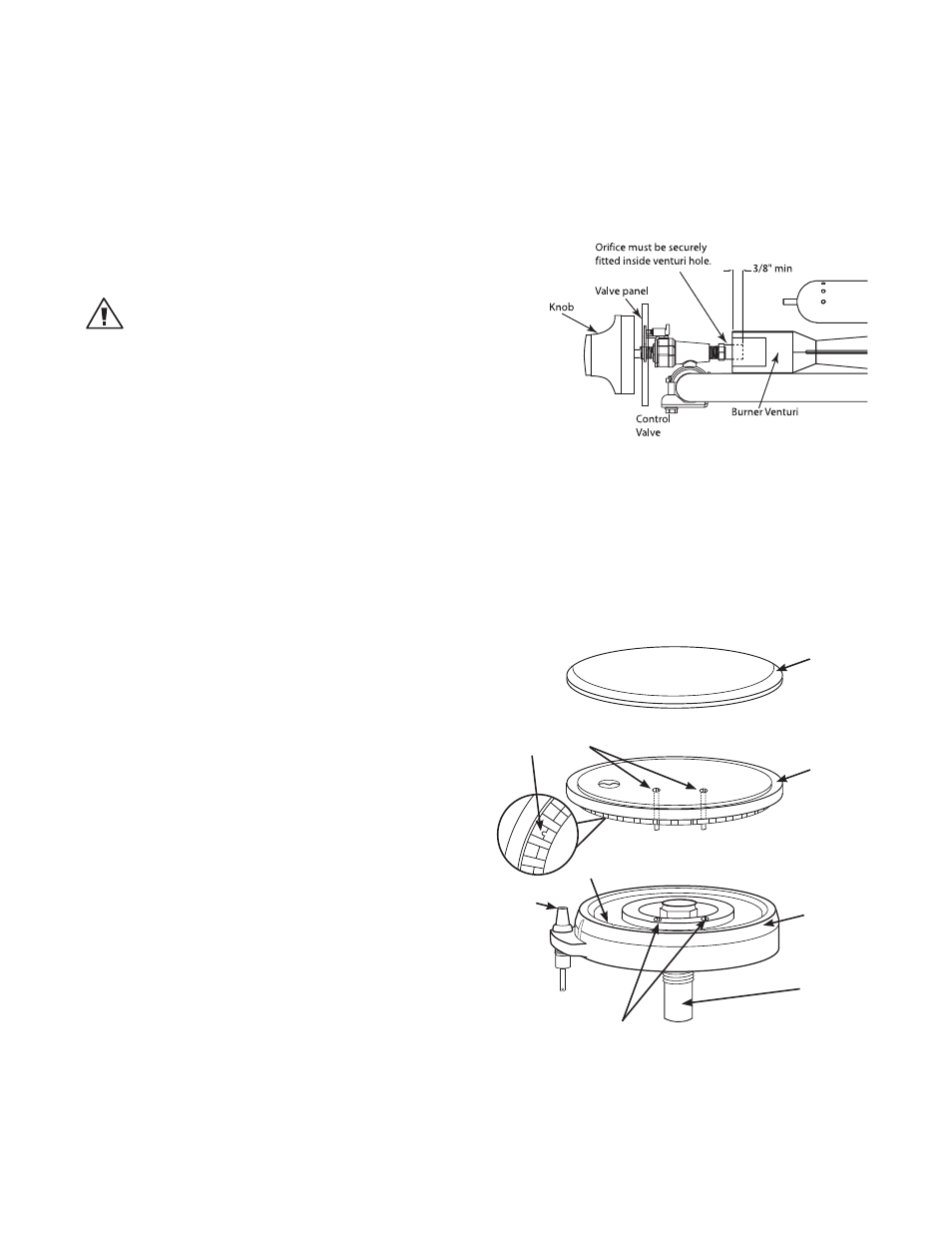

When replacing grill burners or orifices following cleaning, con-
firm orifice penetration into burner as shown in Fig. 66.
WARNING:
IT IS EXTREMELY IMPORTANT TO CENTER THE BURNER ON
THE ORIFICE PROPERLY TO PREVENT A FIRE HAZARD OR
EXPLOSION (FIG. 66).
Be careful not to upset the air shutters’ original position
(unless readjusting). Lower the rear of the burner into the
cutouts on the support channel at the rear of the burner
box. Make sure it is level and does not rock. Light all of the
burners and check for proper flame characteristics. If adjustments are necessary, refer to page 22. Do this prior
to using the appliance.
The side burner will give you years of trouble free service if properly maintained. Burner hangers are made from
non-rusting high grade stainless steel. The burner is heavy duty cast iron and brass. The venturi tube is brass.
SIDE BURNER GRATE
The side burner grate is porcelain enamel over cast
iron for durability. To avoid burns, do not clean a hot
grate . They may be wiped while in place with hot,
soapy water, rinsed and wiped dry thoroughly. Never
immerse a hot grate in water. Due to rapid tempera-
ture changes the porcelain may pop off the edges
of the grates. If the grates develop chips, do not be
concerned as the base metal, cast iron, soon darkens
to blend with the porcelain enamel. Use care when
wiping areas where the enamel has popped off, the
edges may be sharp. If cleaning necessitates grate
removal, care should be taken in lifting them. They
are very heavy. Be sure to place them on a protected
surface.
SIDE BURNERS
For proper lighting and performance, keep the burn-
ers clean. It is necessary to clean the burners if they
do not light even though the igniter clicks, if there
has been a severe boil over, or when the flame does
not burn blue. Be certain all burner knobs are in
the “OFF” position before attempting to clean the
burners. The burners have been designed for ease
of cleaning. When the grate and burners are cool,
remove the grate. The burner cap and the brass port
ring can easily be lifted off. Wash these parts in hot
soapy water, rinse and dry thoroughly. The burner
Fig. 67
Brass Ring Locating
Pins
Electrode
Main
Burner
Port Ring
Locating Notch
Burner
Base
Venturi
Cap
Locating Holes
Fig. 66
