INSTALLATION
SINK
FAUCET INSTALLATION
1. Attach the faucet to the sink as shown in Fig. 42 and 42a.
CAUTION:
Finger tight first, then use a 1” wrench.
2. Insert drain plug into the drain hole Fig. 43.
WARNING!
The sink is intended for hand washing and cleaning activities. The sink should not be used for potable water or food
preparation activities unless installed by a certified plumber and per local codes.
SINK INSTALLATION
Permanent Water/Drain Installation (Island Installation)
Use a certified plumber to connect and install water supply and drain system per local code requirements.
Make sure you have the drain connections in accordance with local codes.
Sink water inlet connection is 1/2 male NPS. .
Sink water drain connection is 1-1/2 male NPS.
Sink Water Installation on Cart CAD-30
An optional Sink Drain Accessory Kit Model #70855 is available from your local dealer.
1. Set the burner box securely on a table and attach (installer provided) water supply hose through the hole at the
bottom of the burner box, and attach it to the faucet using a wrench.

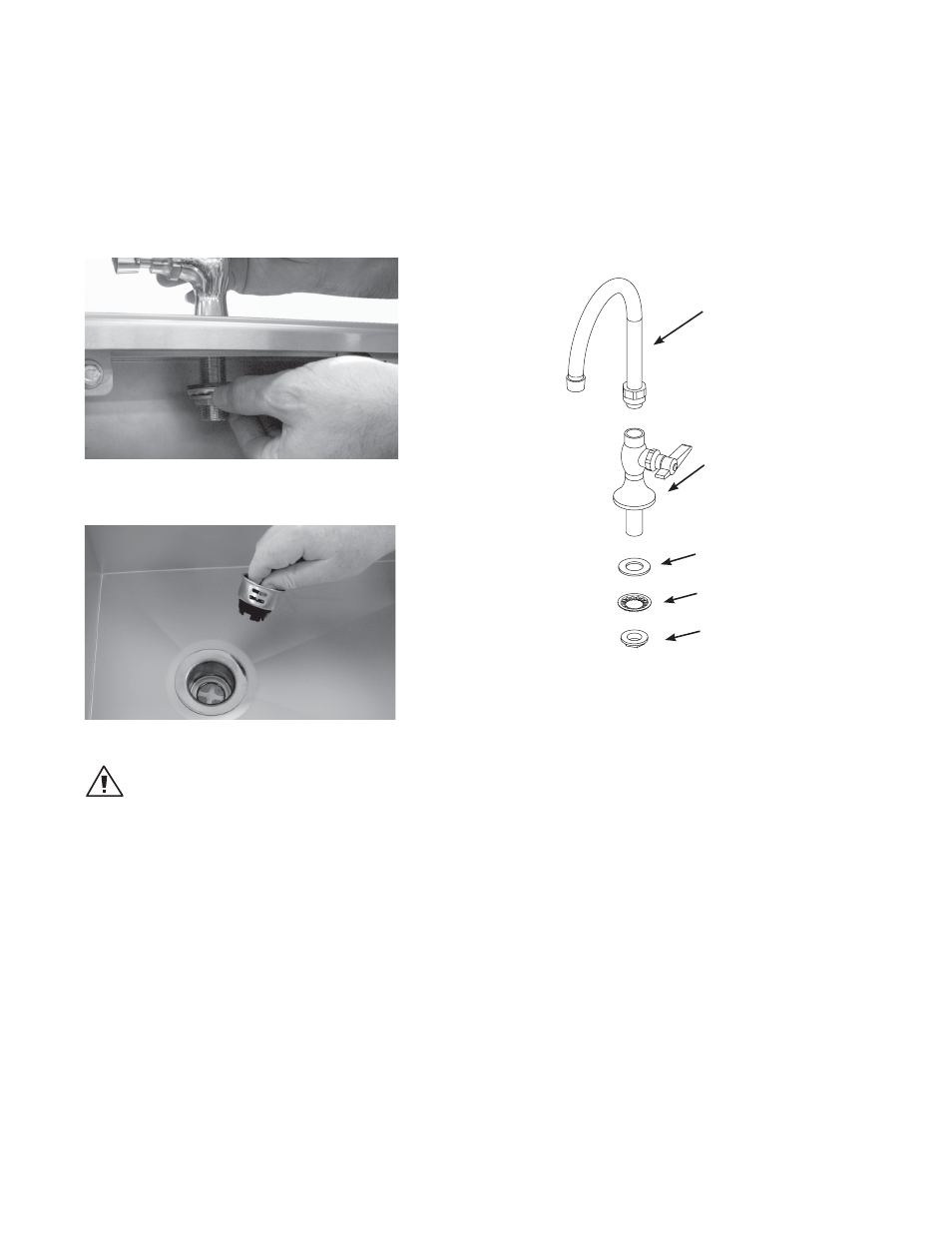

Fig. 42
Fig. 43
Faucet stem
Valve
Rubber gasket
Lock washer
Nut
Fig. 42a
