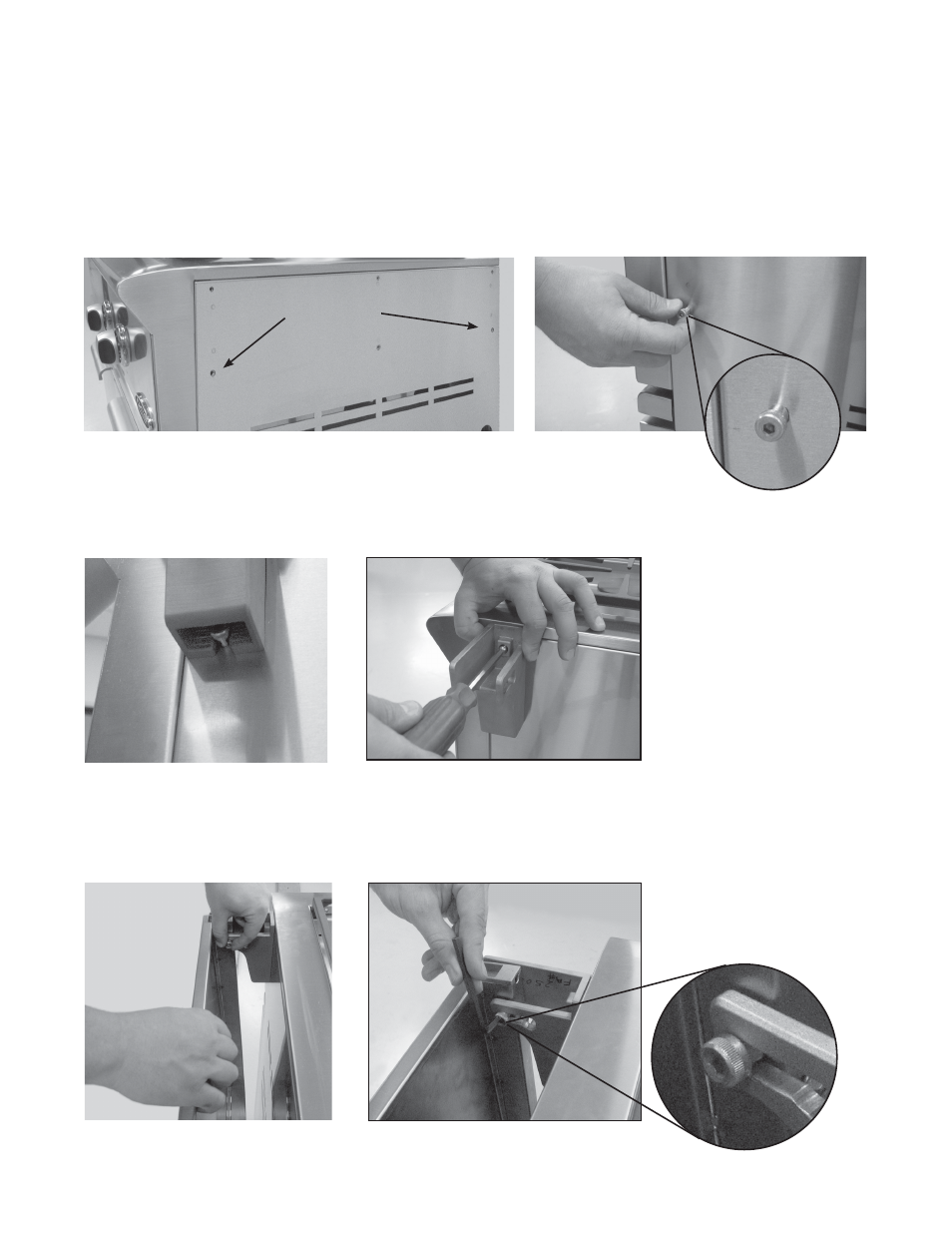

Attach Side Shelf Accessory on Either Side. Side shelf Model CAD-SK can be installed with the head already on
the cart.
1. Screw shoulder bolts (2) into the bottom screw holes on the side of the cart only (Fig. 44 and 45). Tighten with
5/32 Allen wrench.
INSTALLATION
SIDE SHELF (Optional accessory)
Fig. 44 Fig. 45
SHOULDER BOLT
SCREW HOLES
2. Slide left and right side shelf brackets over the shoulder bolt (Fig. 46) and install top screw attaching the side shelf
brackets onto the cart (Fig. 47). Tighten with Phillips screwdriver.
3. Holding the side shelf, install 2 shoulder bolts into the slot and screw into the side shelf tray (Fig. 48). Tighten
with a 3/16 Allen wrench (Fig. 49).
Fig. 48 Fig. 49
Fig. 46 Fig. 47
