10
grill
exhaust
12" (to combustible construction)
10-1/16"
22-3/4"
25-1/2"
3/4" 2"
Standard layout for non-combustible enclosure:
NOTE: See page 9 for ventilation notes.
28-1/2"
Bottom of
support flange
28"
34-7/8"
23-3/4"
3-1/2" 18-1/2"
20"
11-1/8"
35-1/2"
Max.
opening for access doors/drawers
(see page 9 for ordering information)
4" x 4" opening
for gas supply line
opening for access doors
(see page 9 for ordering information)
4" x 4" opening
for gas supply line
22-3/4"
18-1/2"
20"
10-1/8"
35-1/2"
Max.
Layout for insulated jacket only - combustible enclosure:
NOTE: See page 9 for insulated jacket
part ordering information.
28"
3"
12" min.
INSTALLATION

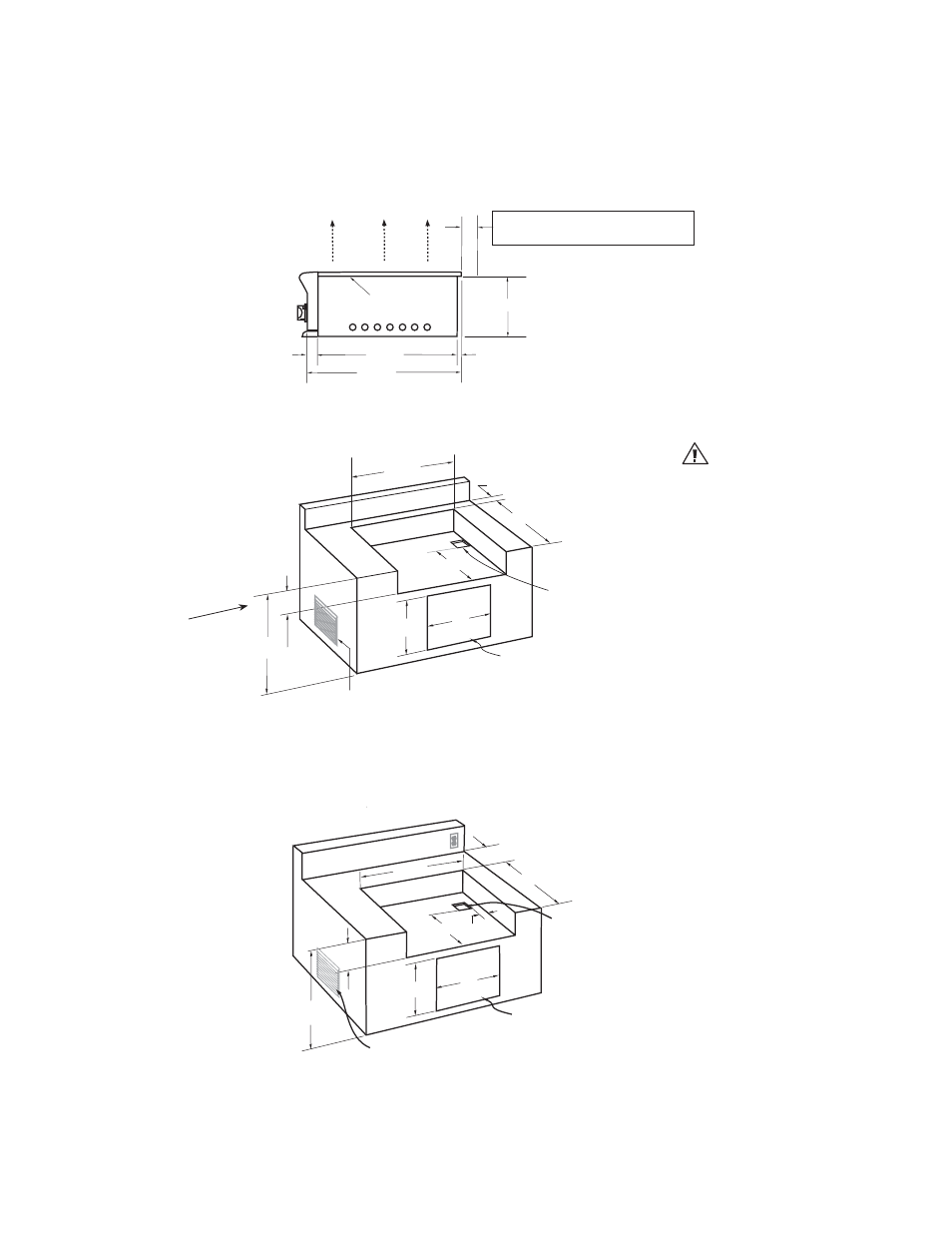

BUILT–IN CONSTRUCTION DETAILS
Fig. 03
WARNING!
If installing the grill
into a non-combustible
enclosure, all combustible
construction must still be
outside the 12 inch clear-
ance zone. If your island
is made of stucco over the
top of wooden studs, the
wood can not be inside the
12 inch clearance zone to
combustible, even though
the stucco is what is touch-
ing the grill area.
NOTE: See page 9 for ventilation notes.
