26
o Specified clearances main-
tained to combustibles.
o Verified proper enclosure
ventilation.
o All internal packaging
removed.
o Knobs turn freely, bezels
centered.
o Each burner lights satis-
factorily, individually or
with adjacent burner lit.
o Air shutters adjusted.
o Adjustable low setting
satisfactory.
o Drip pan in place properly
and sliding freely.
o Pressure regulator con-
nected and set for 4.0”
W.C. Natural, 11.0” W.C. LP
gas.
o Manual shut-off valve
installed and accessible.
o Unit tested and free of
gas and water leaks .
o User informed of gas
supply shut-off valve
location.
o All radiants are assembled
and put in place.
n
PLEASE LEAVE THESE
INSTRUCTIONS WITH THE
USER.
n
USER, PLEASE RETAIN
THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
INSTALLATION
SIDE SHELF (Optional accessory)

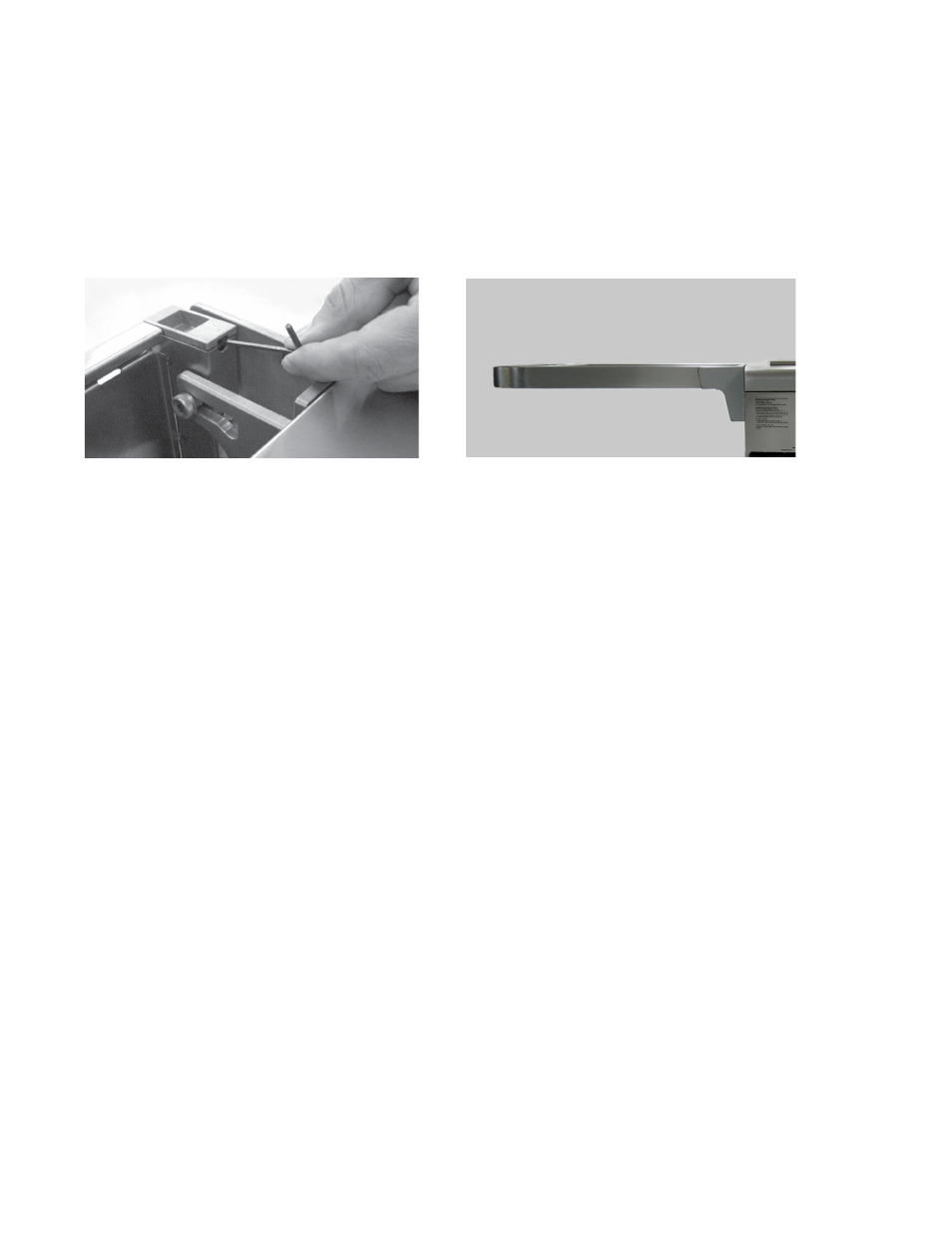

Fig. 50 Fig. 51
CHECK LIST
4. Place shelf in the up position and check that it is level.
If shelf is not level, adjust side shelf set screw. Set screws can be adjusted using a 3/32 Allen wrench (Fig. 50).
Turn the Allen wrench clockwise to raise the shelf. Turn 1/4 turn and review to see if the shelf is level. The set
screws in the left and right bracket should be adjusted equally to ensure the shelf sits level (Fig. 51).
