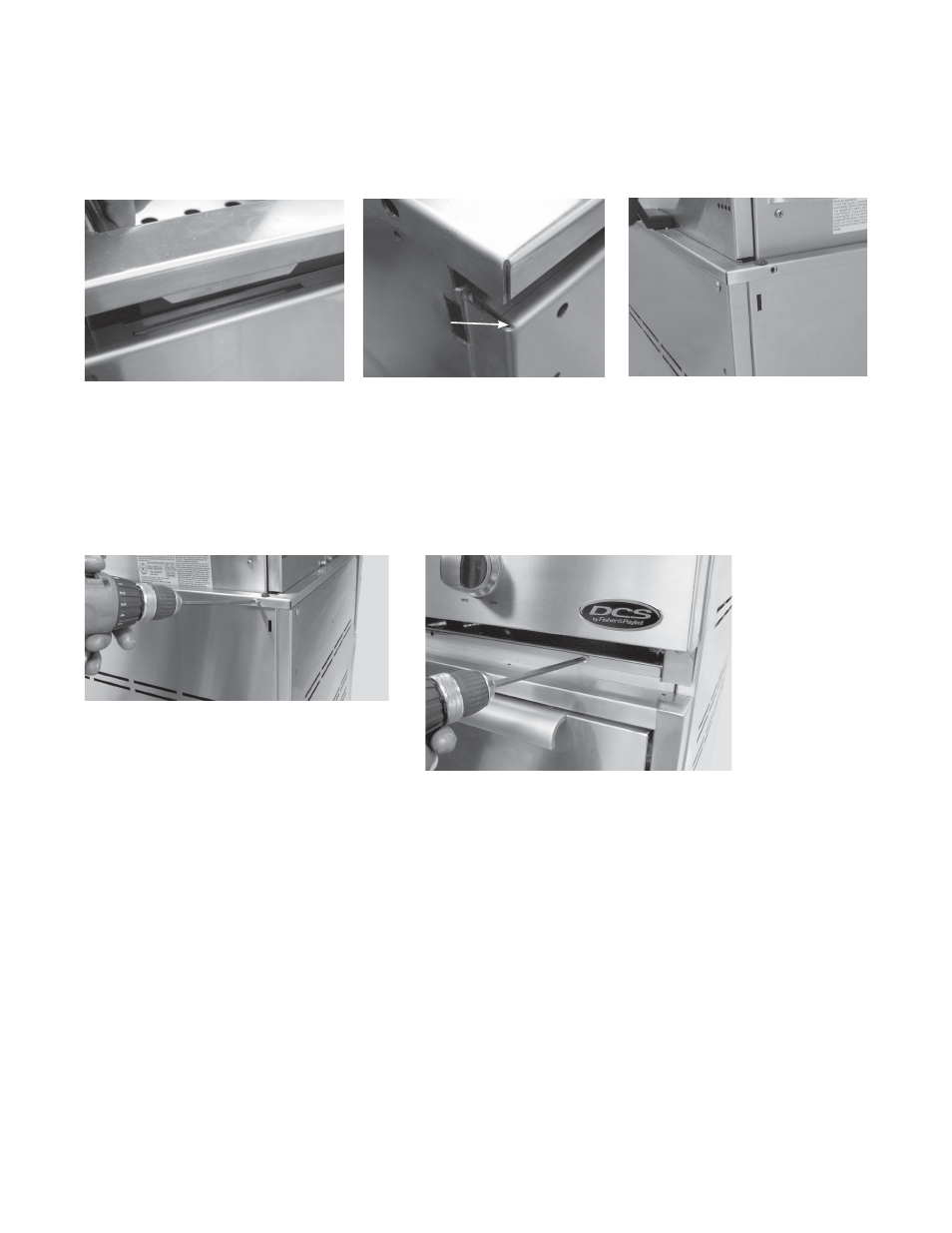

3. Position tabs on side bracket to fit into slots on the cart (be aware of pinch points)(Fig. 12-13). When complete,
the leading ledge should sit flush on the top of the cart (no gap)(Fig. 14).
4. Secure the head to rear of cart (Fig. 15) with (2) Phillips-head screws provided (10-24 x 1/2”).
5. Install remaining (3) screws (10-24 x 1/2”) into the front of head to the cart (Fig. 16).
6. Slide drip tray/pan back into place and reinstall parts removed in Step 3, #1.
14
Fig. 16
INSTALLATION
CART ASSEMBLY INSTRUCTIONS
Fig. 14
PINCH POINT
Fig. 15
Fig. 12
Fig. 13
