Step 2
Outdoor Appliance Head Preparation
1. First you will need to remove the angle brackets from the side
of the unit and replace them with cart mount brackets
(Fig. 06). Unit is shipped prepared for island installation.

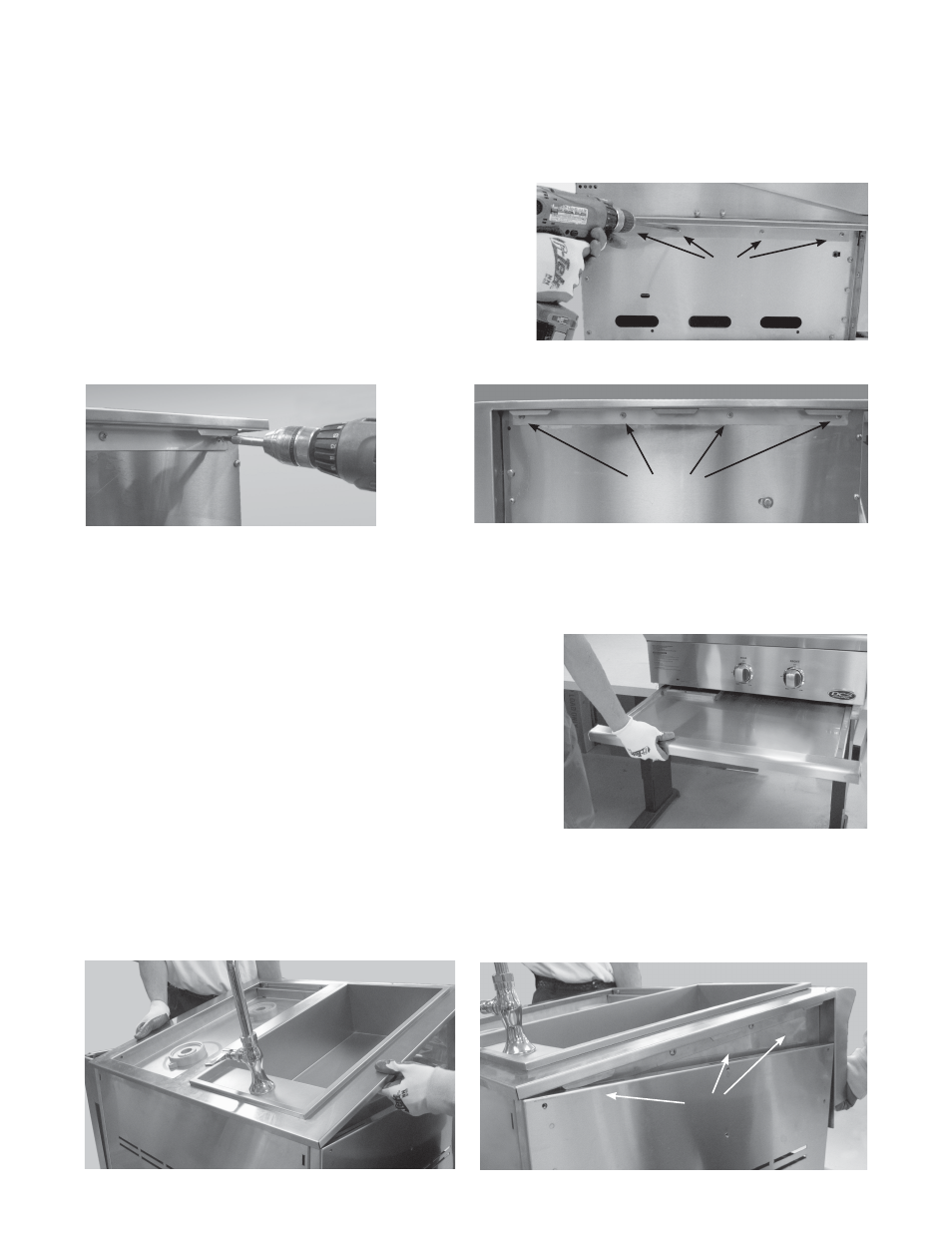

2. Install the bracket tab on both sides of the appliance head
using 8 of the 10-24 x 1/2” screws. Install each bracket with 4
screws on each side of the outdoor appliance head
(Fig. 07 and 08).
Fig. 06
Fig. 07
Fig. 08
SCREWS
SCREWS
Step 3
Head Placement onto Cart (2 Persons Required)
1. Remove drip tray/pan (Fig. 09) and other removable components
(to lighten the load) such as grates, top burner caps and
components, and griddle flue cover, radiant tray and grill burner
for easier handling.
2. Two persons required to lift head (sink module shown).
Placing head on cart, place rear of head over the rear of the cart
first (Fig. 10). Then allow the rear side tabs to first locate in
the slots on the top of the cart sides. The other tabs will locate in
the middle and front slots as the head is lowered into position on
the cart (Fig. 11).
3. Position tabs on side bracket to fit into slots on the cart (be aware
of pinch points)(Fig. 11 -13). When complete, the leading ledge should sit flush on the top of the cart (no gap).
4. Secure the head to rear of cart (Fig. 14) with (2) Phillips-head screws provided (10-24 x 1/2”)(p/n 211242).
Fig. 09
Fig. 10 Fig. 11
