186 Chapter 3 - OCP 42/OCP 50 Maintenance
Access to the various units
B1500M24LA
September 2000
THOMSON OCP 42/OCP 50
User manual
3.1.2 - Removing the monocontrol mechanism (OCP 42)
Remove the cover.
1. Removing the monocontrol knob
• Remove the ring from the bottom part of the knob.
• Loosen the screw in the groove.
• Extract the monocontrol button.
2. Removing the monocontrol mechanism
• Disconnect the monocontrol cable from connector J13 on the MPU BOARD.
• Disconnect the cable connecting connector DC IN of connector J 12 of the MPU BOARD.
• Unscrew the 3 screws attaching the monocontrol mechanism.

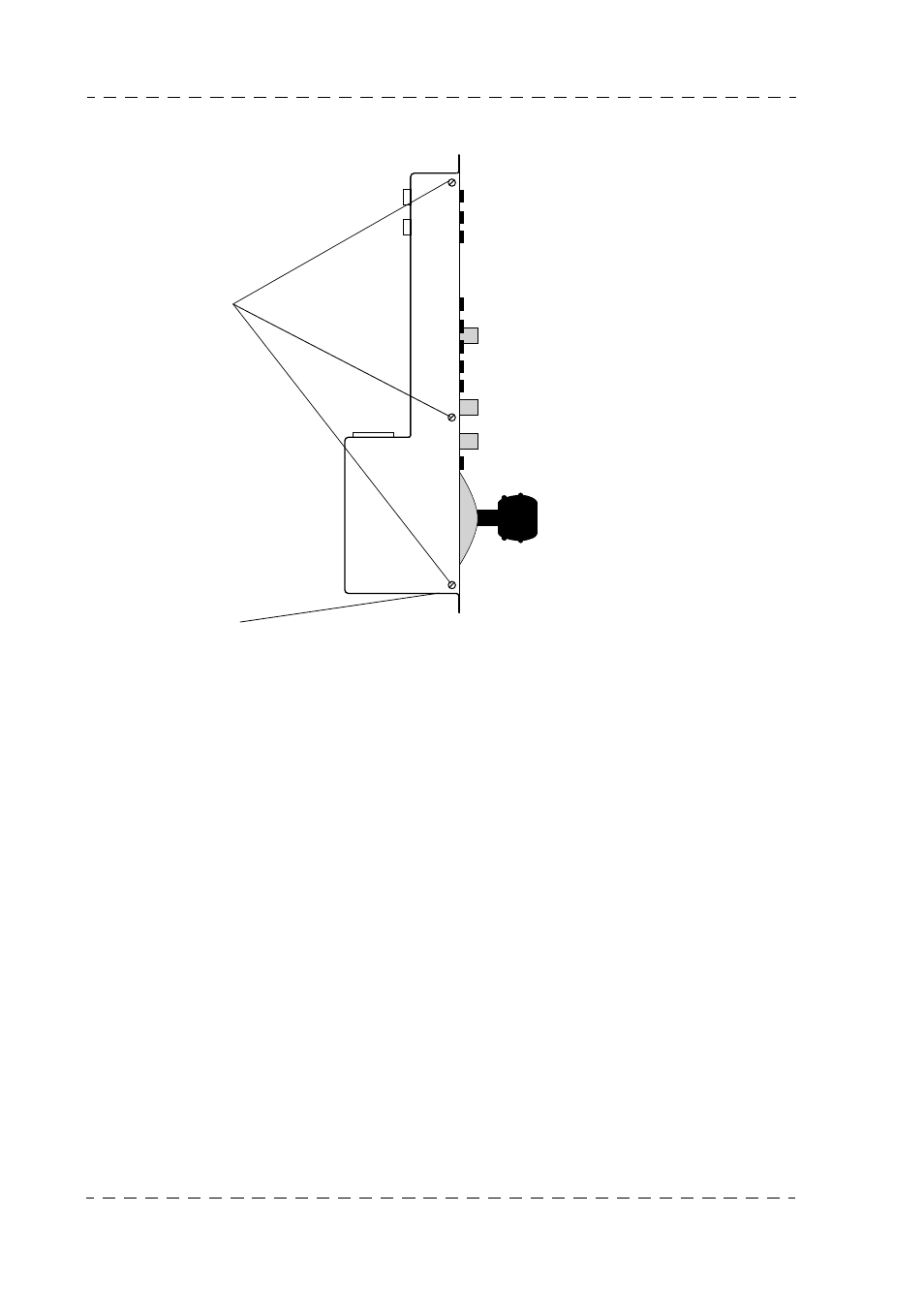

3 side attaching
screws
Monocontrol mechanism
attaching screw
