Chapter 2 - OCP 42/OCP 50 Operating Instructions 167
Description of rest pages
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000
2.6 - DESCRIPTION OF REST PAGES
The rest pages inform the operator of the various operational states of the equipment. These are
displayed if there is no range selected. The rest CUSTOM page permit the modification of 4
operating adjustments.
Press NEXT to display the various pages.
There are 2 types of rest pages:
1. The «STATUS» page(s) (2 maximum) indicating:
• The non-standard states of the panel
• The Detail value
• The Iris position.
2. The «VALUES» page, indicating:
• The control values: partial Gains, partial Blacks, Detail, Master Ped, Saturation.
• Iris aperture.
3. The «CUSTOM» page:
Configurable (refer to the INSTALLATION chapter, 1.7.3.1 - The CUSTOM rest page para-
graph) the CUSTOM rest page permits a fast access to the 4 frequently used operating adjust-
ments.
X X X X X X X X X X
X X X X X X X X X X
ND 1 6 3 d B 6
S T A R C L C S 2 0 1 . 2
X X F I N E F X X . ± X F
D E T A I L 1 / 2 F X . X
KN E E O F F AB L
D F Z
GAMMA 1 . 0 0
2 / 2
GA I N 5 0 5 0
B L ACK 5 0 5 0 5 0
5 0 8 2 S A T 1 0 0
DET A I L P E D F 5 . 6

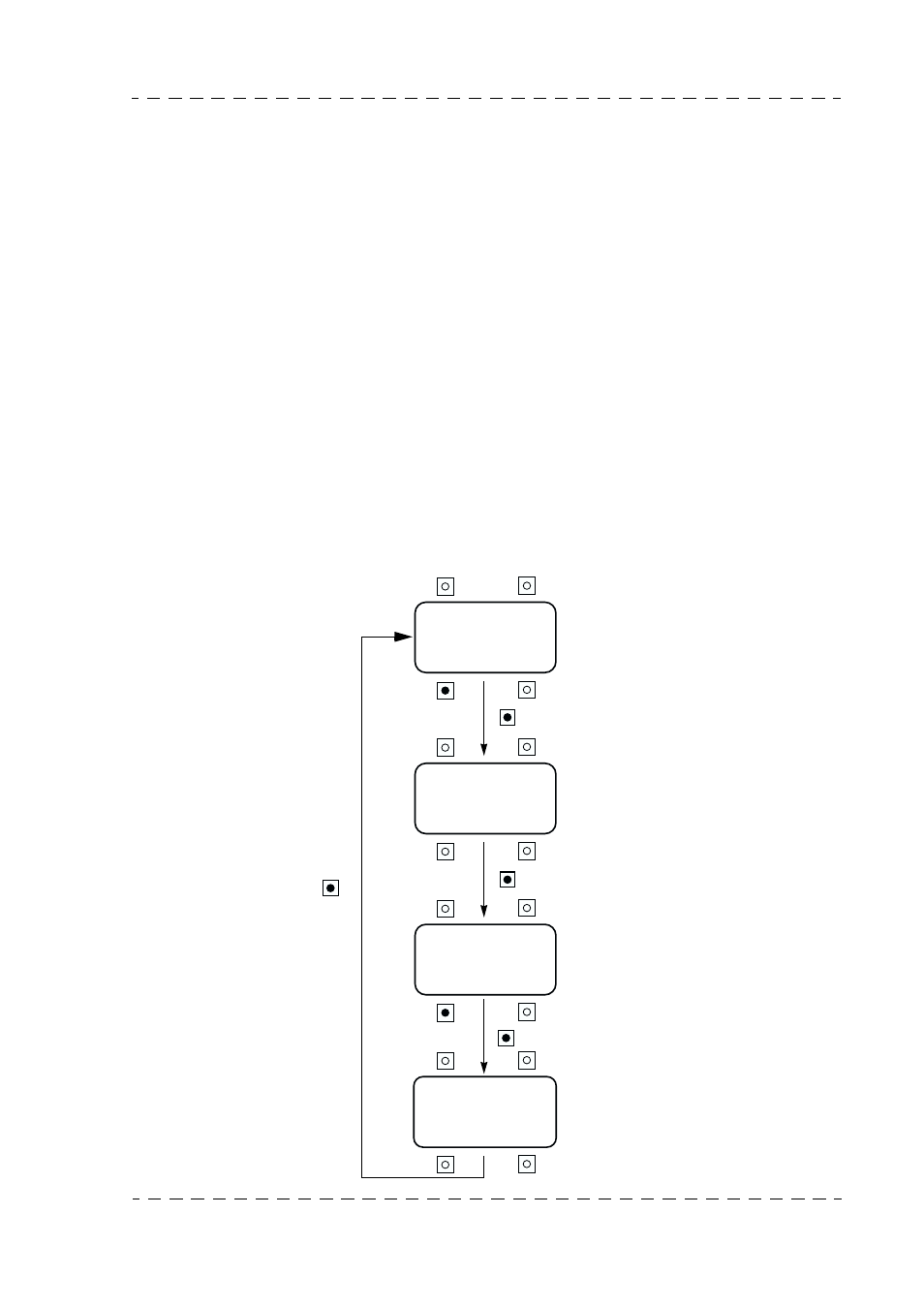

STATUS 1
STATUS 2
(conditional)
VALUES
NEXT
NEXT
CUSTOM
NEXT
NEXT
