140 Chapter 2 -OCP 42/OCP 50 Operating Instructions

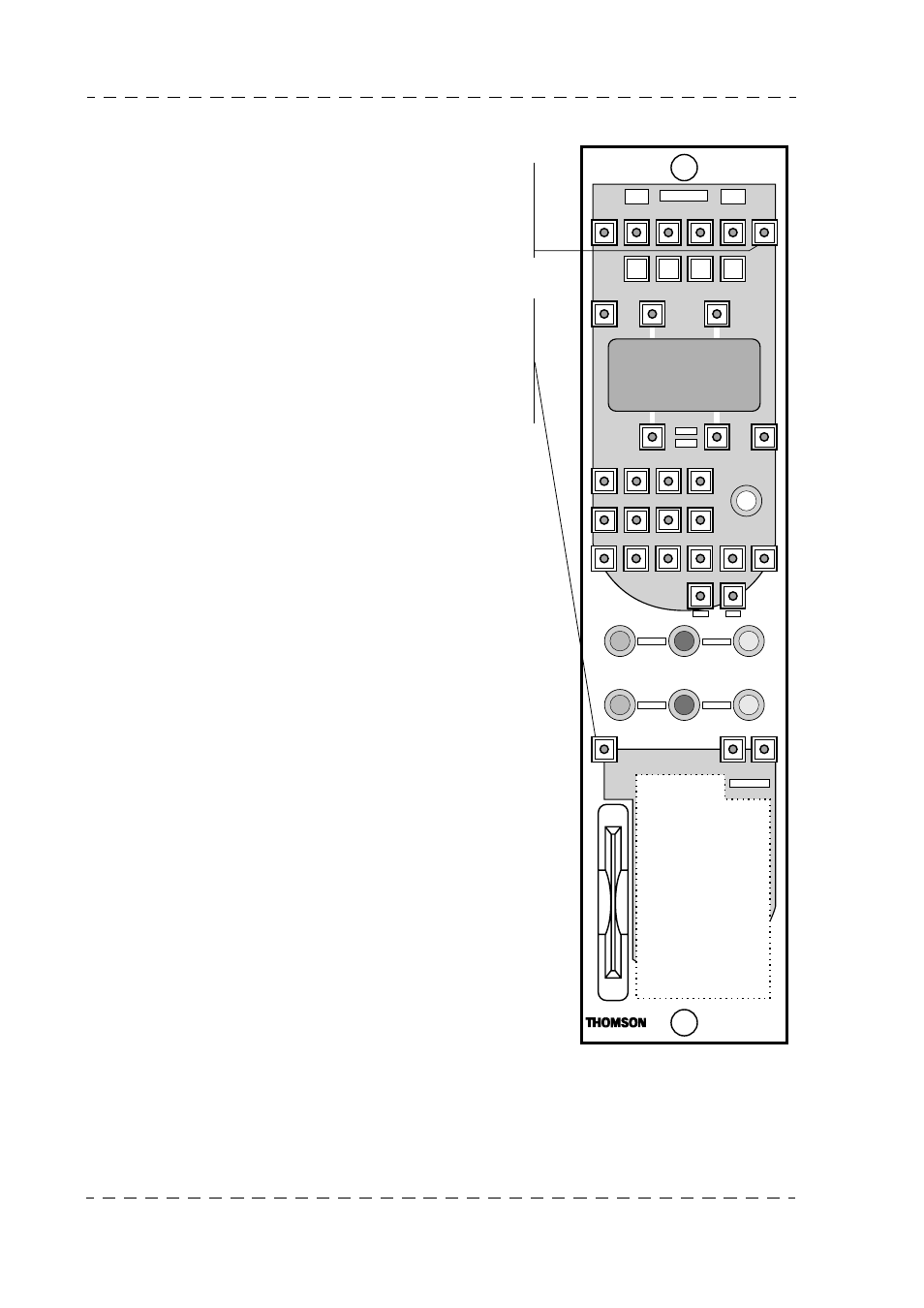

Description of pushbuttons
B1500M24LA
September 2000
THOMSON OCP 42/OCP 50
User manual
2.2.7.5 - CALL button
Pressing this button calls the cameraman.
A call from the cameraman lights the button indicator light.
Pressing of the button while the indicator light is lit extin-
guishes the light.
2.2.7.6 - ENABLE button
• Indicator light lit: the joystick IRIS, MASTER PED,
AUTO IRIS button, FINE ADJUST range controls are
enabled.
• Indicator light off: The IRIS, MASTER PED, AUTO
IRIS button, FINE ADJUST range controls are disabled.
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
EXTENDER
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
IRIS
BLACK
LEVEL
FINE
ADJUST
MEMORY SKIN
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
OCP 42
