2.2.7.8.2 - Display configuration storage
This function is used to instantaneously recall a setting
(particularly useful if a parameter is to be modified
frequently).
Four memories are available. The STORE button is asso-
ciated with programmable buttons F1, F2, F3 and F4.
To store a display setting, simultaneously press STORE
and one of buttons F1, F2, F3, F4 (depending on the button
number assigned to this page).
Note: A review of the configuration is obtained by
simply pressing one of buttons F1, F2, F3 or F4.
2.2.7.9 - RECALL button
The RECALL button is used to call the operational settings
(Scene file) stored using the STORE button.

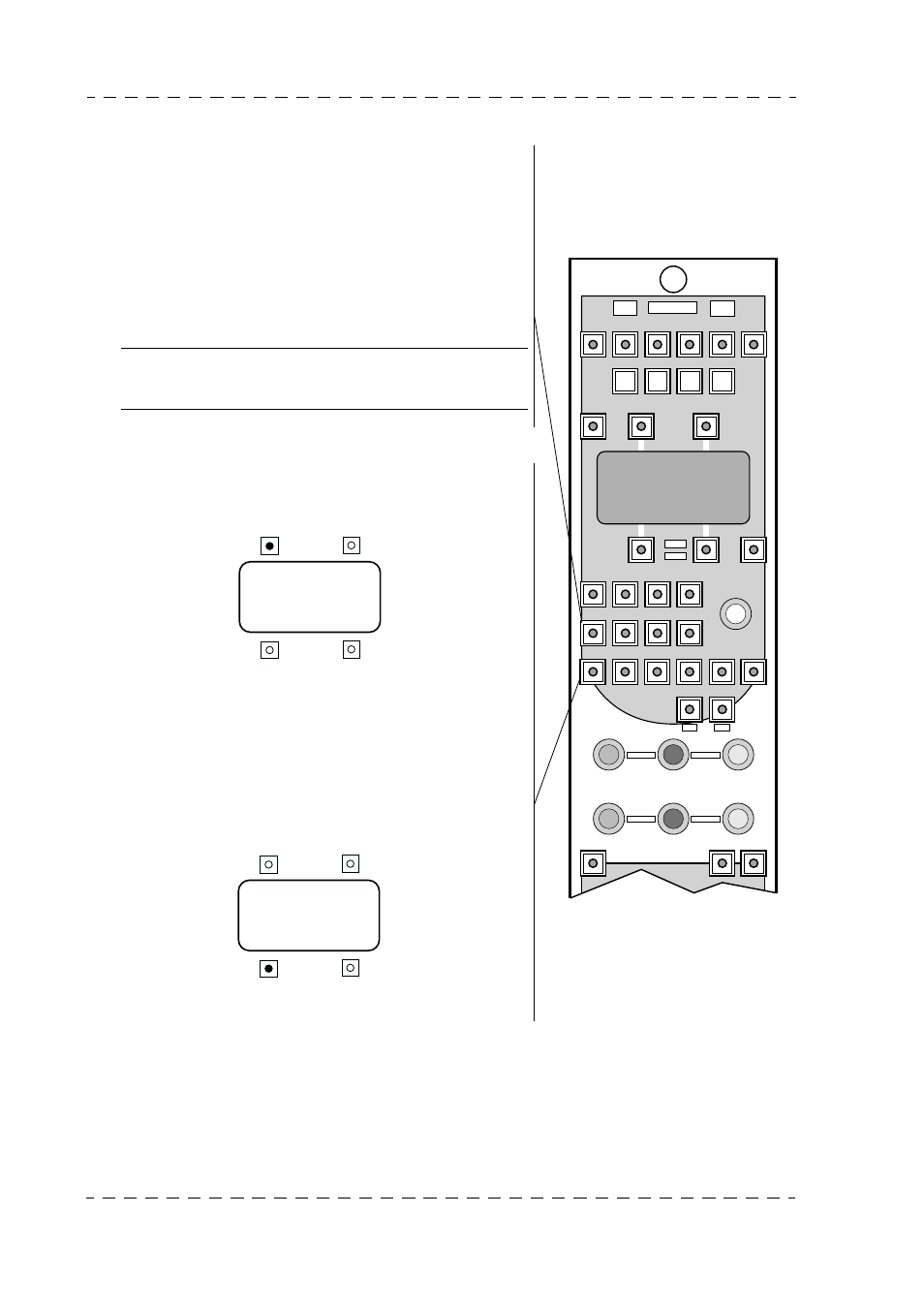

Operation of the button displays the following page:
• When one of the operational buttons is lit, it indicates the
last Scene file recalled. If any modification to the setting
has been performed since the recall, RECALLED is
displayed opposite the number (if not, MODIFIED is
displayed).
• To recall an operational memory, press the button above
the number desired. The selected button indicator light
lights and the RECALLED indication is displayed.
! "
1 2
R E CA L L E D
3 4
