Description of pushbuttons
B1500M24LA
September 2000
THOMSON OCP 42/OCP 50
User manual
In this page:

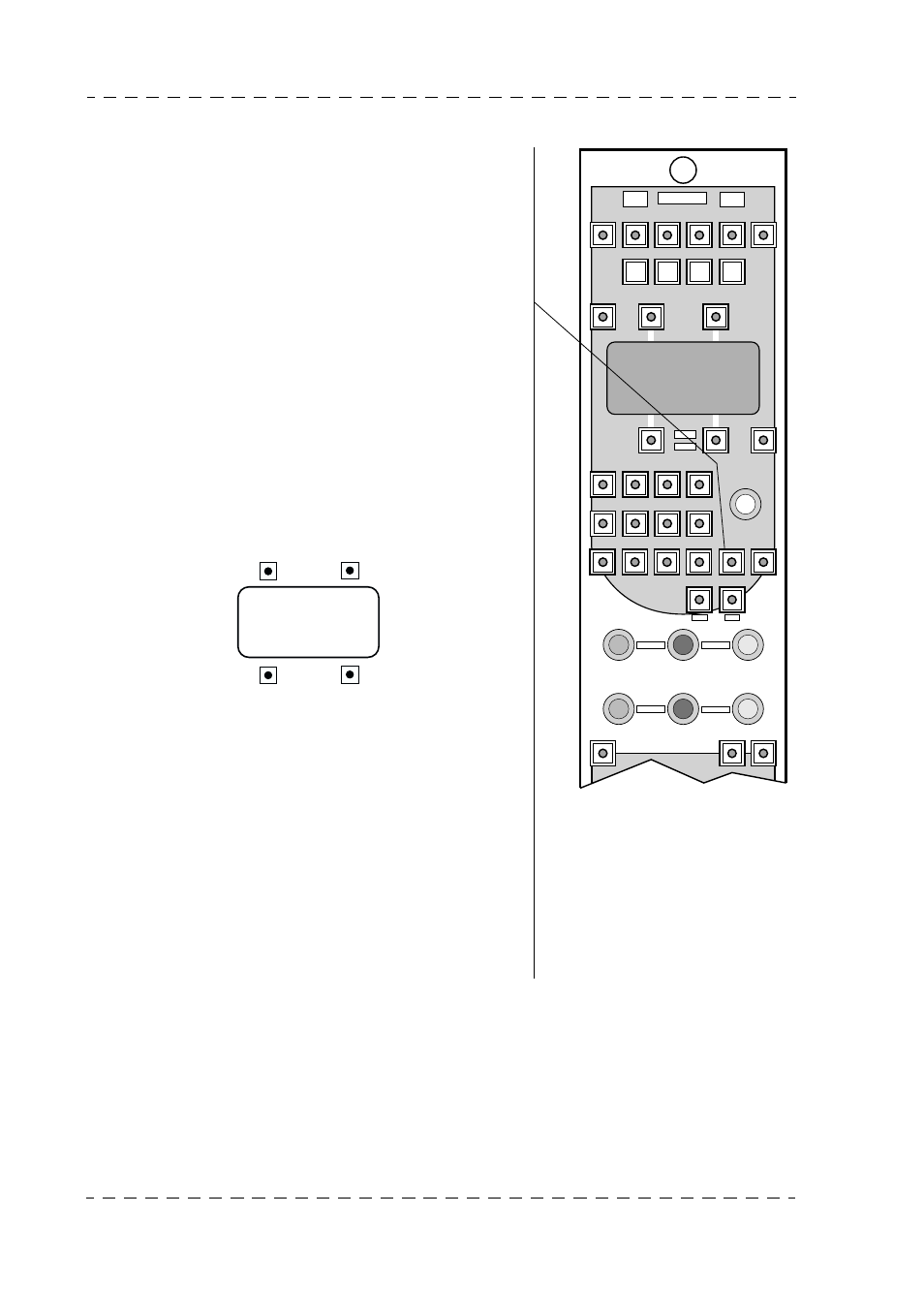

• SKIN IND: Operation of the button under SKIN 1 IND:
- Displays on the viewfinder an acquisition rectangle.
The colour within the rectangle will be the reference
colour for automatic acquisition.
- The picture on ALL THE equipment VIDEO
OUTPUTS is B/W and only the colour areas selected
by SKIN are displayed in colour (refer to paragraph
2.3.11.2: Use of SKIN).
• EXIT: Pressing the button under EXIT enables return to
SKIN automatic setting page.
• SKIN DET: Pressing the button under «SKIN 1 DET»
starts an automatic acquisition of the colour present on the
viewfinder in the acquisition rectangle. The picture areas
selected by the system are in colour on the equipement
video outputs and indicated by zebras on the viewfinder.
From the SKIN 1 automatic setting page, press NEXT to
display the SKIN 1 manual adjustment page:
• COLOUR R1, COLOUR B1: Manual adjustment of the
SKIN 1 colour. In this case, the R and B partial gain
adjustments are made respectively to COLOUR R1 and
COLOUR B1. If SKIN IND is set to ON, the areas of the
picture selected by the manual settings are displayed in
colour.
• ACCUR R1, ACCUR B1: Manual adjustment of the area
around the colour set by COLOUR R1 and COLOUR B1 of
the SKIN 1 function. In this case, the R and B partial black
adjustments are respectively assigned to ACCUR R1 and
ACCUR B1. If SKIN IND is set to ON; the areas of the
image selected by the manual adjustments are displayed in
colour.
