Chapter 2 - OCP 42/OCP 50 Operating Instructions 161

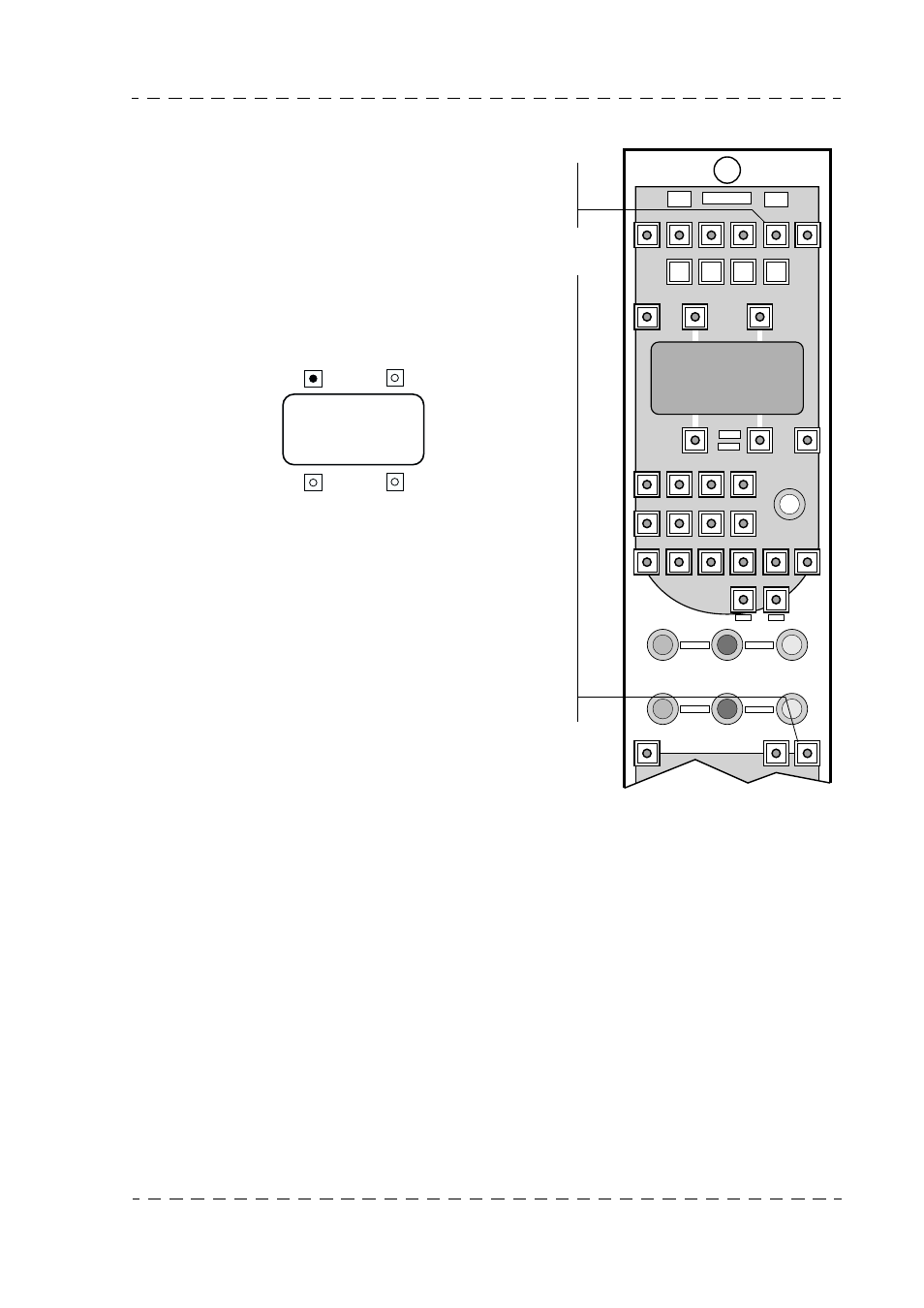

Description of pushbuttons
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000
2.2.8.12 - SETTING button
Used to set up the OCP, the Channel Control Unit and the
camera. This range is described in the INSTALLATION
chapter.
2.2.8.13 - FINE ADJUST button
This button is used to make the FINE ADJUST range
adjustments. This function offers very high iris control
precision by increasing joystick sensitivity.
Press the button to display the following page:
This page is used to modify the following parameters:
• RANGE: Iris working range adjustment.
• SENSITIVITY: Control sensitivity adjustment.
• FINE IRIS:
- ON: Function on.
- OFF: Function off.
ON/OFF switching is made directly using the
corresponding button.
RA NGE S E N S I T I V I T Y
F X . X F : ± X
O F F
F I N E I R I S
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
FINE
ADJUST
SKIN MEMORY
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
