Chapter 2 - OCP 42/OCP 50 Operating Instructions 165
Description of indicator lights
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000

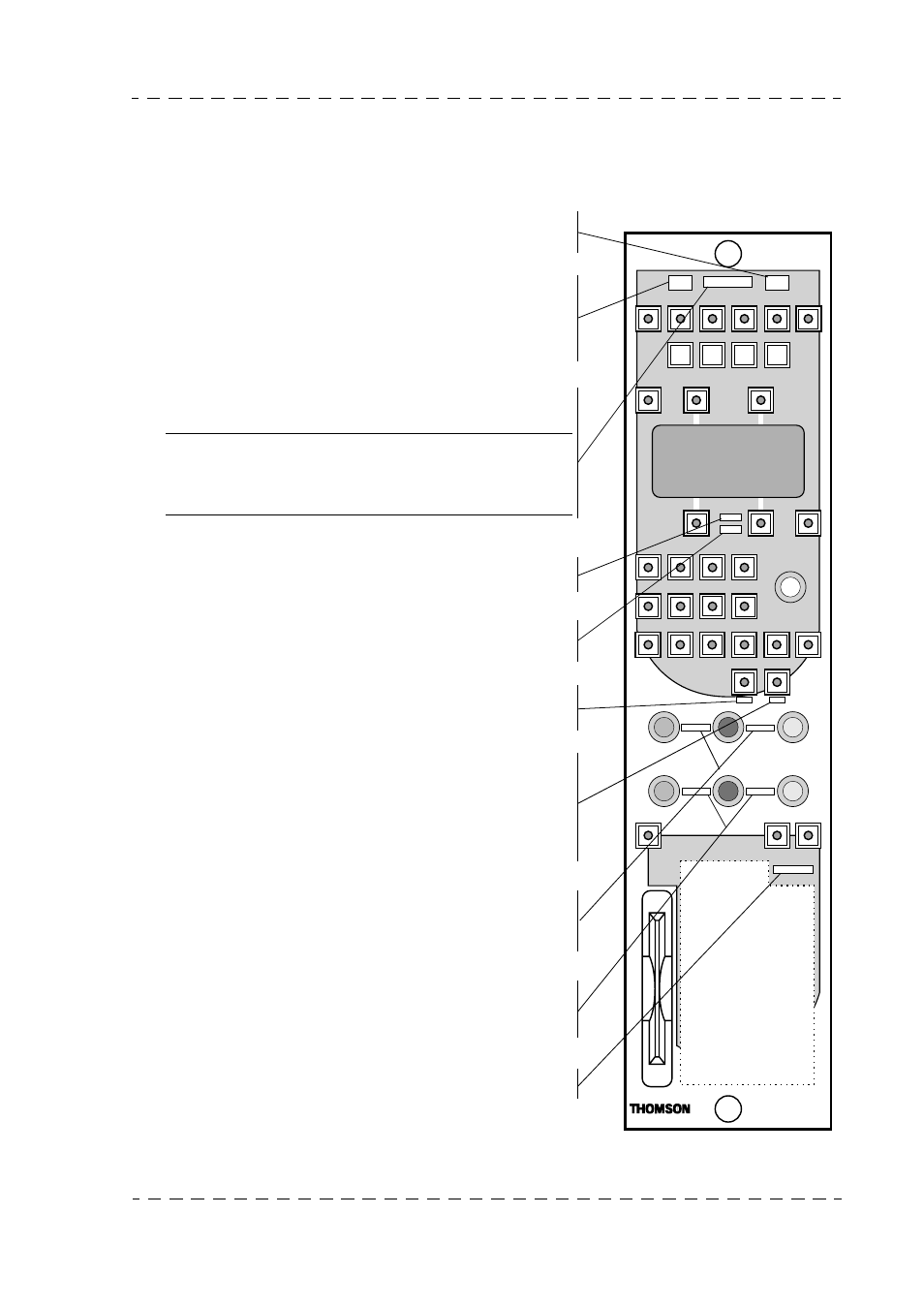

2.4 - DESCRIPTION OF INDICATOR
LIGHTS
ON AIR 2: Lights when the equipment is on the secondary
antenna.
PREVIEW: Lights when the equipment video is selected
on the technical control room (engineer’s) screens (via
external preselector). Refer to connector PREVIEW/AUX
in the Installation chapter of this manual.
ON AIR 1: Lights when the equipment is on the main
antenna.
NOTE: There are two operating modes for the panel
controls when ON AIR 1 is lit. Refer to the panel
setting up and installation chapter of this manual.
CTRL: Lights on an operator control if the latter is
accepted.
DIAG: Lights on an operator control if this is not accepted
(inoperative).
LIMIT: Lights subsequent to execution of a black balance,
if this is defective.
LIMIT: Lights:
• Subsequent to execution of a white balance (WHITE
BAL) if the latter is defective.
• Momentarily during white balance execution,
permanently if white balance defective.
ASSIGNED: Lit when the partial gain controls are assi-
gned to another function. E.g.: R, B GAMMA if the
GAMMA range is displayed.
ASSIGNED: Lit when the partial black controls are assi-
gned to another function. E.g.: R, G, B FLARE if the
BLACK range is displayed.
EXTENDER: Lights when the focal length multiplier on
the lens is other than x1.
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
EXTENDER
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
IRIS
BLACK
LEVEL
FINE
ADJUST
MEMORY SKIN
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
OCP 42
