Chapter 2 - OCP 42/OCP 50 Operating Instructions 145

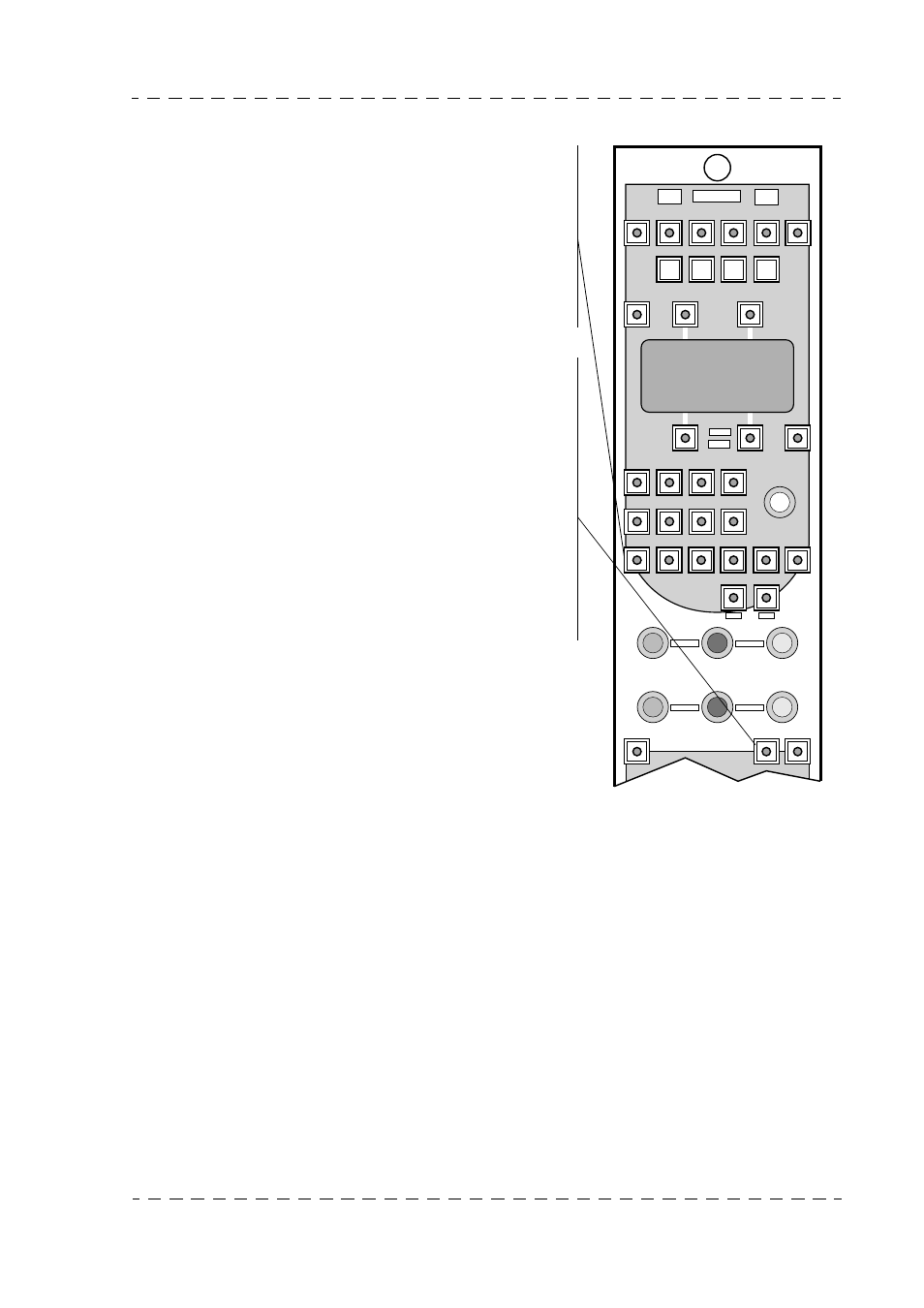

Description of pushbuttons
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000
• Return to the rest page is made after a period defined in
the panel settings (refer to the Installation part of this
manual) or by pressing the EXIT button.
• Pressing RECALL again while the corresponding page is
already displayed causes permanent display of this page.
The display is cleared:
- either by selecting another page.
- or by pressing the EXIT button.
2.2.7.10 - AUTO IRIS button
Selection of IRIS operating mode: AUTO or MANUAL.
• Indicator light off: Iris is operating in the MANUAL
mode (the operator controls a complete range of lens
aperture (diaphragms).
• Indicator light lit: The Iris operates in the AUTOMATIC
mode. However, the operator can modify the iris aperture
by ± 1 DIAPH, as defined by the automatic device.
• If the CATCH IRIS = ON operating mode is selected
(refer to Installation chapter: camera configuration), the
indicator light flashes on changeover from AUTO to
MANU as long as the Iris control has not the true aperture
value of the lens Iris.
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
FINE
ADJUST
SKIN MEMORY
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
