164 Chapter 2 -OCP 42/OCP 50 Operating Instructions
Description of linear controls
B1500M24LA
September 2000
THOMSON OCP 42/OCP 50
User manual

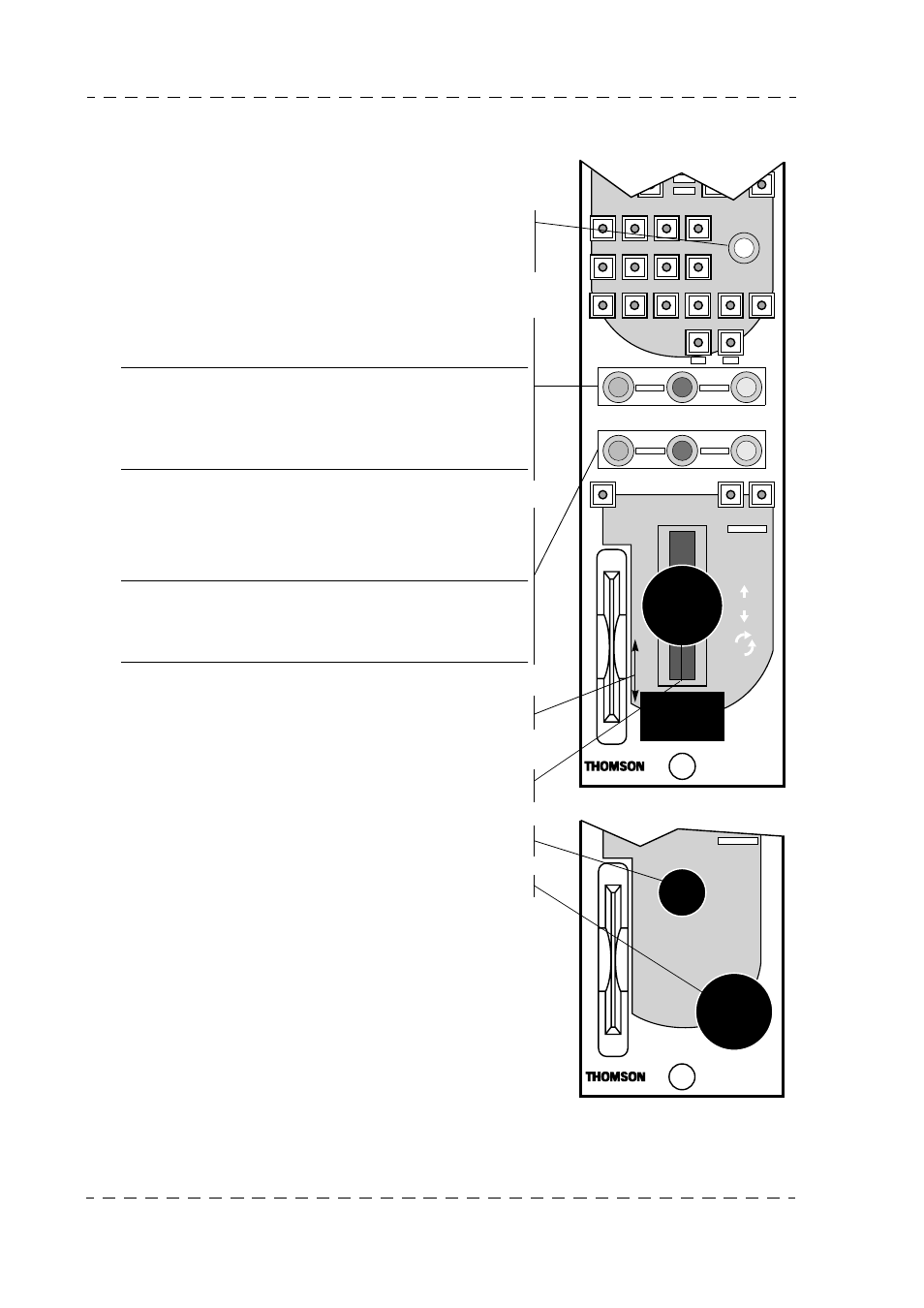

2.3 - DESCRIPTION OF LINEAR CON-
TROLS
ADJUST: Adjusts the value of the parameter displayed
and, on the display, selects whether the control is gradual
(corresponding operation key lit).
R, G, B PARTIAL GAINS: R, G, B video amplitude
adjustment.
NOTE: If the ASSIGNED lights are lit, these controls
become the settings for the displayed range parameter.
E.g.: R, B GAMMA if the GAMMA range is
displayed.
R, G, B PARTIAL BLACKS: R, G, B video black level
adjustment. Refer to INSTALLATION chapter, 1.7.3 -
Setting up the OCP paragraph.
NOTE: If the ASSIGNED lights are lit, these controls
become the settings for the displayed range parameter.
E.g.: R, G, B FLARE if the BLACK range is displayed.
IRIS: Iris aperture (diaphragm) adjustment
.
MASTER BLACK: Master black adjustment.
MASTER BLACK: Master black adjustment (OCP 50).
IRIS: Iris aperture (diaphragm) adjustment (OCP 50).
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
EXTENDER
CTRL
DIAG
IRIS
BLACK
LEVEL
FINE
ADJUST
MEMORY SKIN
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
OCP 42
EXTENDER
OCP 50
BLACK
LEVEL
IRIS
