2.2.8.9 - SHUTTER button

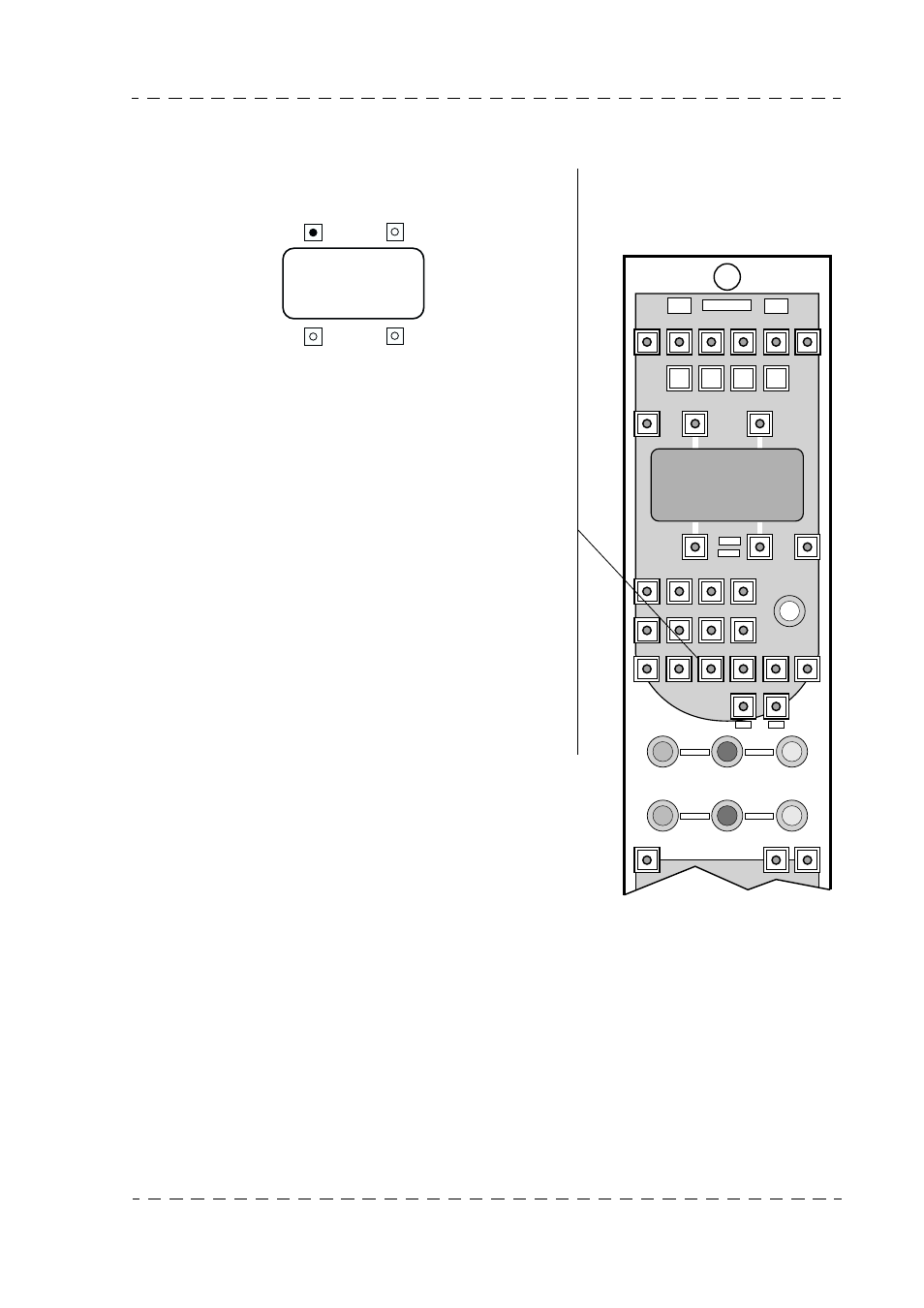

Used to adjust the SHUTTER range. Press this button to
display the following page:
This page is used to modify the following parameters:
• SHUT SPEED: Selection of exposure time so as to seize
fine details of fast-moving objects.
• CS SPEED: Choice of exposure time to obtain a
uniformly exposed picture when shooting images obtained
from a monitor which is not synchronised to the camera, for
example data processing information.
• SHUTTER :
- ON: The SHUTTER is in service.
- OFF: The SHUTTER is out of service.
ON/OFF switching is made directly using the
corresponding button.
• CLEAR SCAN :
- ON: CLEAR SCAN in service.
- OFF: CLEAR SCAN out of service.
ON/OFF switching is made directly using the
corresponding button.
