Principes de base pour les coordonnées de positions
10
Guide de l'utilisateur
POSITIP 855

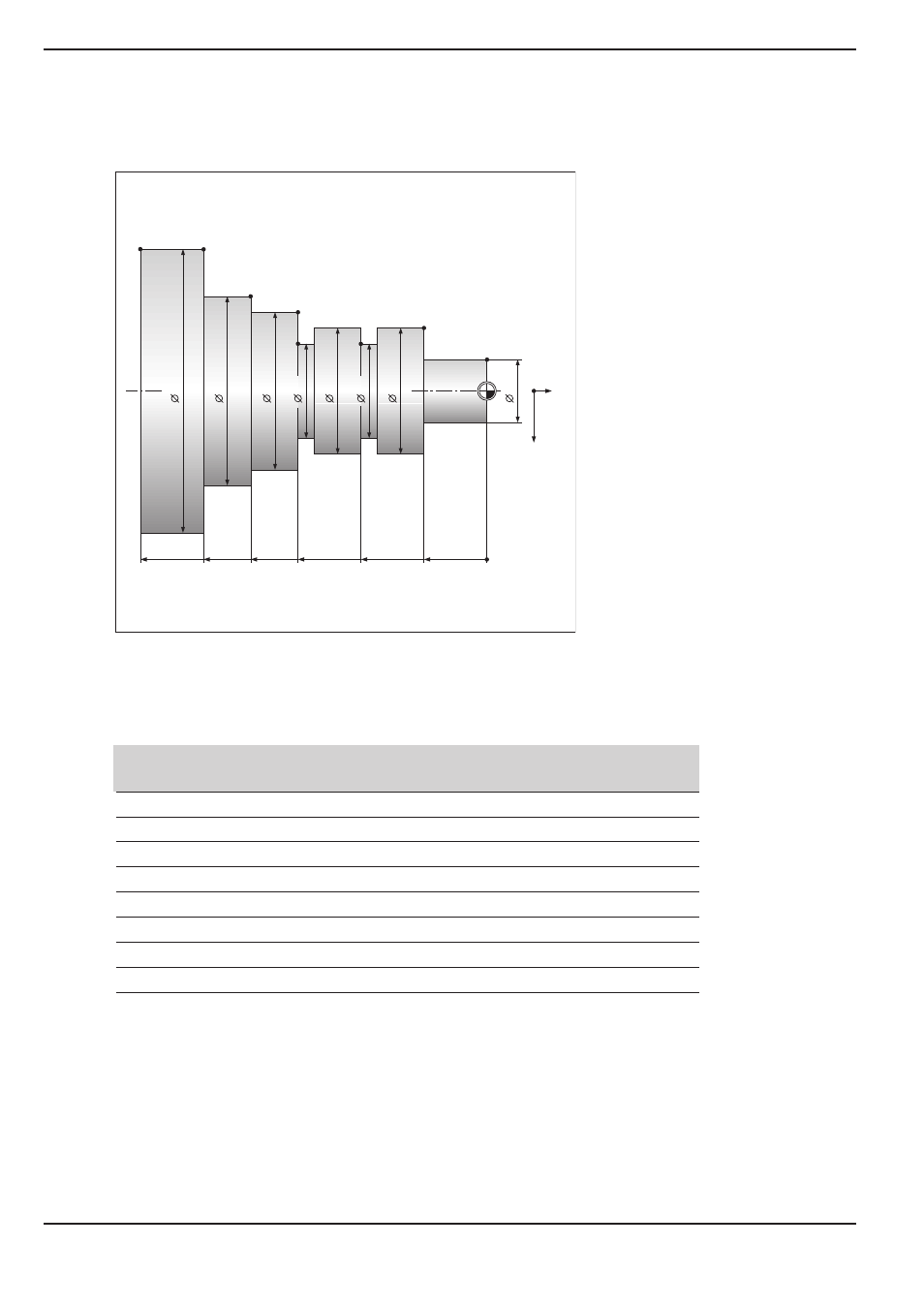

Exemple: Plan d'une pièce avec cotation en valeur absolue
(selon DIN 406, chap. 11)
Principes de base pour les coordonnées de positions
Une liste de coordonnées correspondant à cet exemple présente des
avantages lors d'un usinage en mode
MEMORISATION DE PROGRAMME
.
Toutes les coordonnées en X comportent des données de diamètre.
Coordonnées
X
∅
∅
∅
∅
∅
Z
Remarques
de
[mm]
[mm]
P0
40
0
Surface frontale
P1
80
– 40
P2
60
– 80
Plongée
P3
60
– 120
Plongée
P4
100
– 120
P5
120
– 150
P6
180
– 180
P7
180
– 220
40
Z
X
80
60
80
60
100
120
180
220
180
150
120
80
40
0
P
0
P
1
P
2
P
3
P
4
P
5
P
6
P
7
