Page 57: Montage et raccordement électrique
![background image](/files/815697/content/doc057.png)
II - 1 Montage et raccordement électrique
POSITIP 855
Informations techniques
59
II - 1

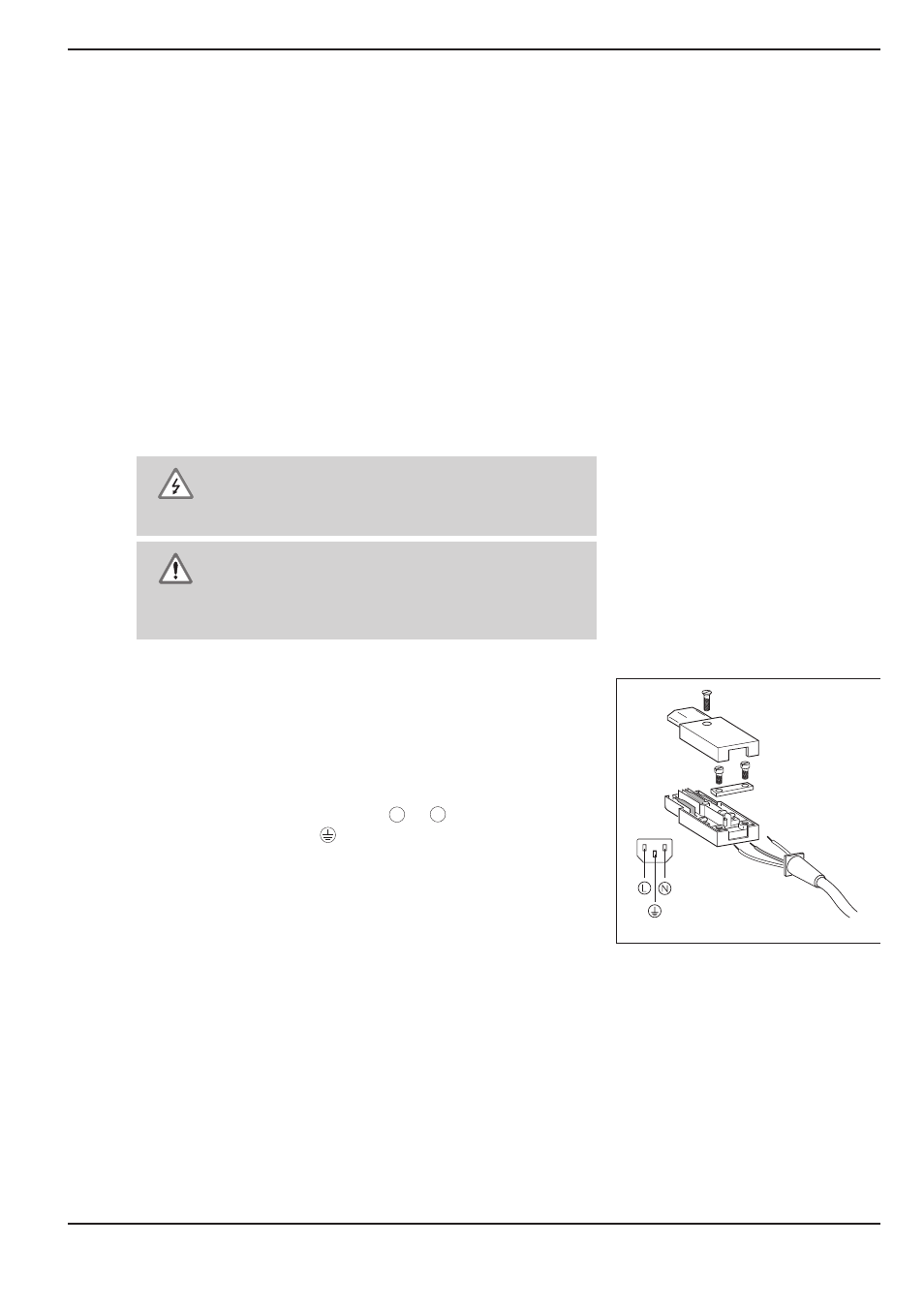

Fig. 30: Câblage de la prise secteur
Montage et raccordement électrique
Contenu de la fourniture
•
Visualisation de cotes POSITIP 855
•
Prise secteur
•
Manuel de l'utilisateur
Pose et fixation du POSITIP
Le POSITIP peut être fixé sur un pied orientable HEIDENHAIN à
partir de la face arrière de l'appareil et au moyen de vis M4
(Id.-Nr. 281 619 01).
Distance entre les trous de fixation: se reporter aux cotes
d'encombrement (cf. chapitre II -8).
Raccordement électrique
Risque de décharge électrique!
Avant d'ouvrir l'appareil, retirer la prise secteur!
Relier à la terre!
La mise à la terre ne doit pas être interrompue!
Danger pour composants internes!
Ne brancher ou débrancher les connecteurs qu'après
mise hors tensin de l'appareil!
N'utiliser que des fusibles de rechange conformes aux
fusibles d'origine!
Raccordement secteur
Vous pouvez raccorder le POSITIP à une tension comprise
entre 100 V et 240 V (48 Hz à 62 Hz).
Vous n'avez pas à régler le POSITIP sur la tension.
Câblage de la prise secteur
Cf. fig. 30:
Raccordement secteur aux contacts
L
et
N
Mise à la terre au contact
Section min. du câble secteur: 0,75 mm
2
