II - 1 Montage et raccordement électrique
POSITIP 855
Informations techniques
61
X3
X2
X1
X4
Les interfaces X1, X2, X3 et X4 sont conformes à
l'„isolation électrique du secteur“ selon VDE 0160, 5.88.
Première mise sous tension
Lors de la première mise sous tension suivant la livraison du
POSITIP, celui-ci affiche l'écran représenté à la fig. 34.
Sélectionnez maintenant l'application choisie pour le POSITIP en
appuyant sur la touche.
POSITIP pour tournage:
➤
➤
➤
➤
➤ Appuyez sur la touche 1.
POSITIP pour fraisage:
➤
➤
➤
➤
➤ Appuyez sur la touche 0.
Le POSITIP vous propose automatiquement les fonctions
nécessaires à l'application choisie.
Si nécessaire, vous pourrez changer ultérieurement d'application
par modification du paramètre P 99.

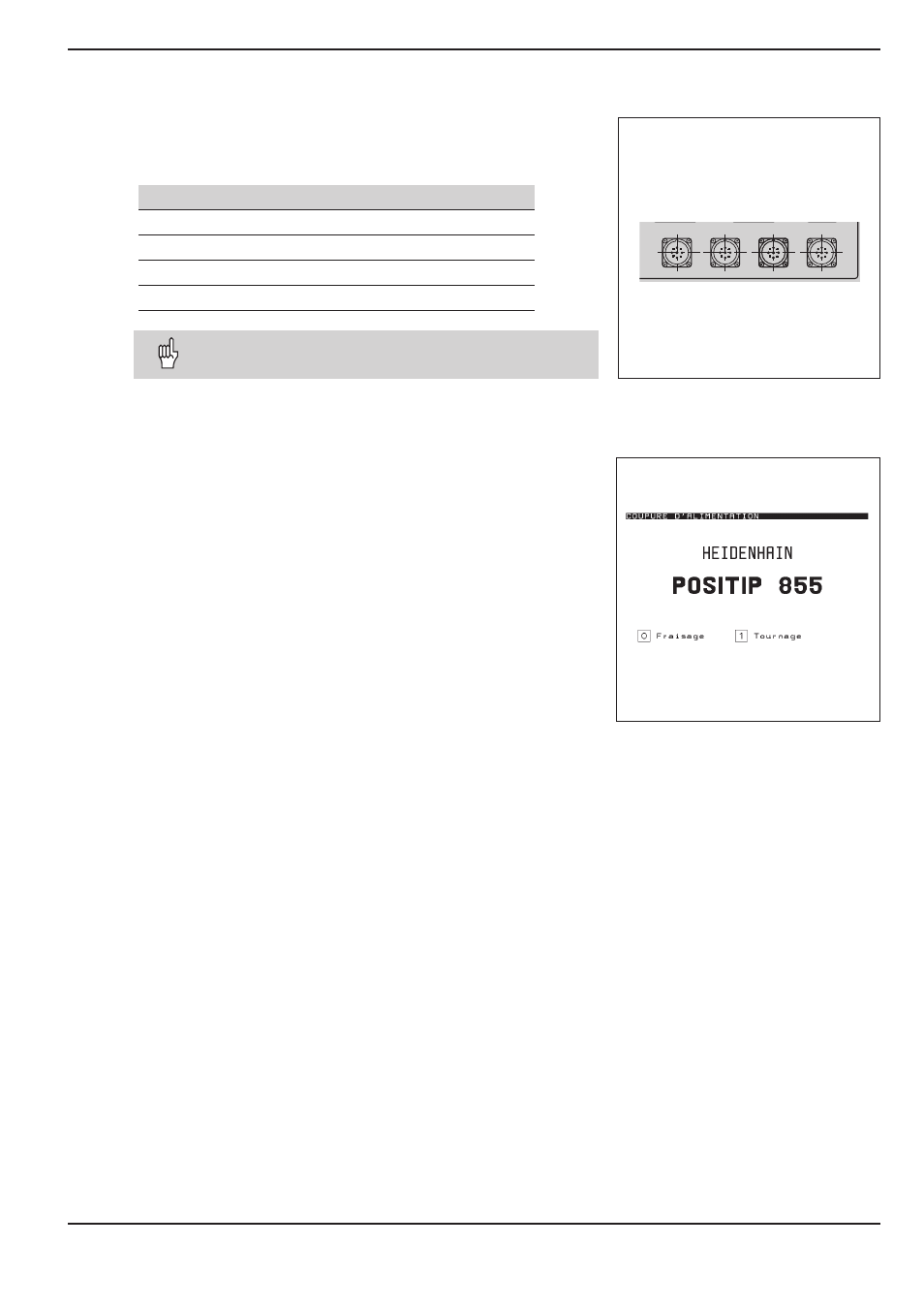

Fig. 34: L'écran du POSITIP après la première
mise sous tension
Fig. 33: Raccordement des systèmes de
mesure sur le POSITIP
Les raccordements des systèmes de mesure sont attribués pour
les 4 axes. Le paramètre P49.
∗
vous permet de définir la dési-
gnation des axes, par ex. axe 1 = axe X, axe 3 = axe Z.
Axe
Raccordement systèmes de mesure
1
X1
2
X2
3
X3
4
X4
