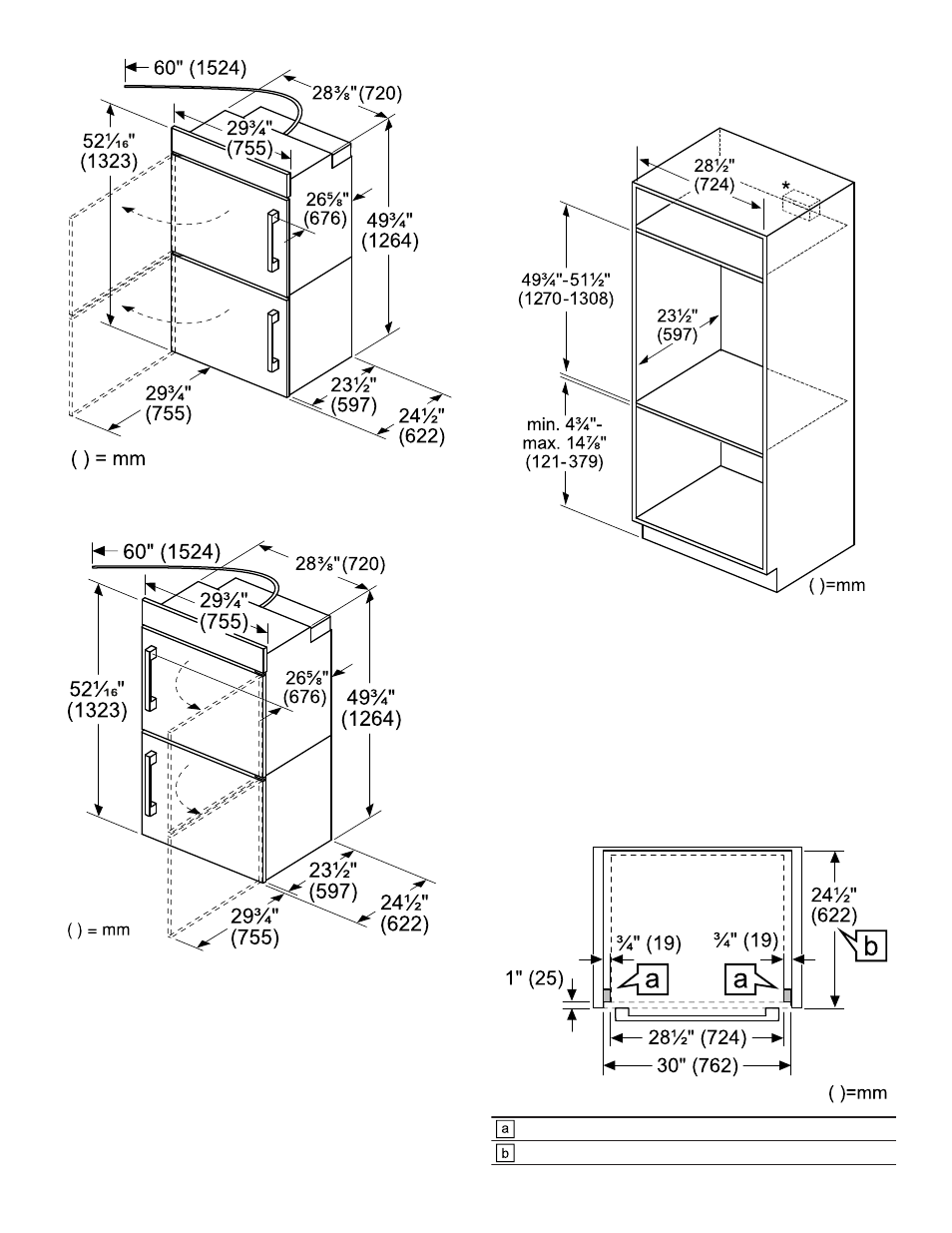

30" Double oven dimensions en-us
9
Allow ¾" (19 mm) gap to nearest cabinet front for door
swing.
Allow ¾" (19 mm) gap to nearest cabinet front for door
swing.
6.2 30" Double oven traditional installation
*Junction box location: above, left or right of the unit within
reach of the flexible conduit.
Control panel overlap: min. 3/8" (10mm) to max.
2" (51mm).
6.3 30" Double oven flush mount installation
Flush installation requires two side cleats to be attached
inside the cabinet frame, recessed from the front.
Top view bottom hinged door
Reveal cleats
Flush inset depth
