Prior to installation
en-us
15
¡
Remove the bottom hinge oven door prior to installation
to access the necessary lifting points and to significantly
reduce the unit weight. For double ovens with bottom
hinge doors, you can remove both oven doors.
"Removing the oven door from bottom hinge conven-
¡
The oven can be difficult for two people to handle during
installation. It is recommended to have three or more
people available to assist with lifting the unit into place.
¡
There is a ridge across the top front of the oven cavity.
Lift by grasping this ridge with one hand while placing
the other hand on the back of the unit. If a third helper is
lifting from the front, both hands should lift by holding
this ridge area.
¡
The recommended lifting method depends on the oven
door type.

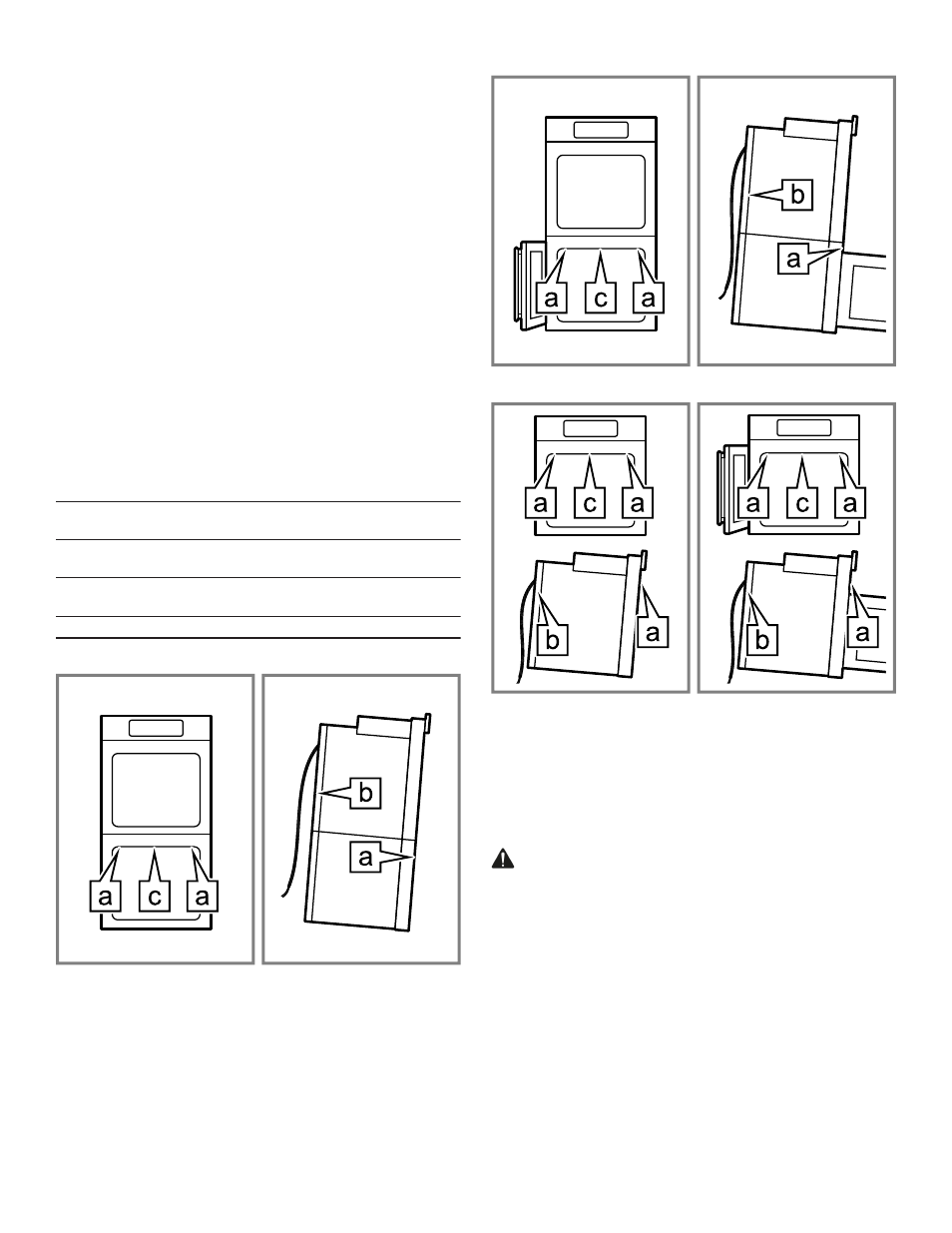

Lifting points
The persons lifting the appliance should stand on either
side of the oven, using the lifting points specified in the
chart and illustrations. A third person helping to lift the unit
should stand in front of the oven, facing the oven cavity.
Note: The lifting points are shown with the door removed
for bottom hinge door and lower door opened to 90° -
110° for side hinge doors.
Lifting
points
Description
a
Front location of the hand for the helpers lift-
ing from the sides of the unit
b
Back location of the hand for the helpers lift-
ing from the sides of the unit
c
Location for a third person to help lift the unit
Double or combination ovens with bottom hinge door
Double or combination ovens with side hinge door
Single ovens with bottom or side hinge door
10.2 Connecting the speed oven or steam
convection oven conduit to the lower
oven
The power cable of the upper unit of a combination oven
must be properly attached to the junction box mounted on
the lower oven.
WARNING
Confirm that the oven is not yet connected to the electrical
power outlet when you connect the upper and lower oven
unit.
