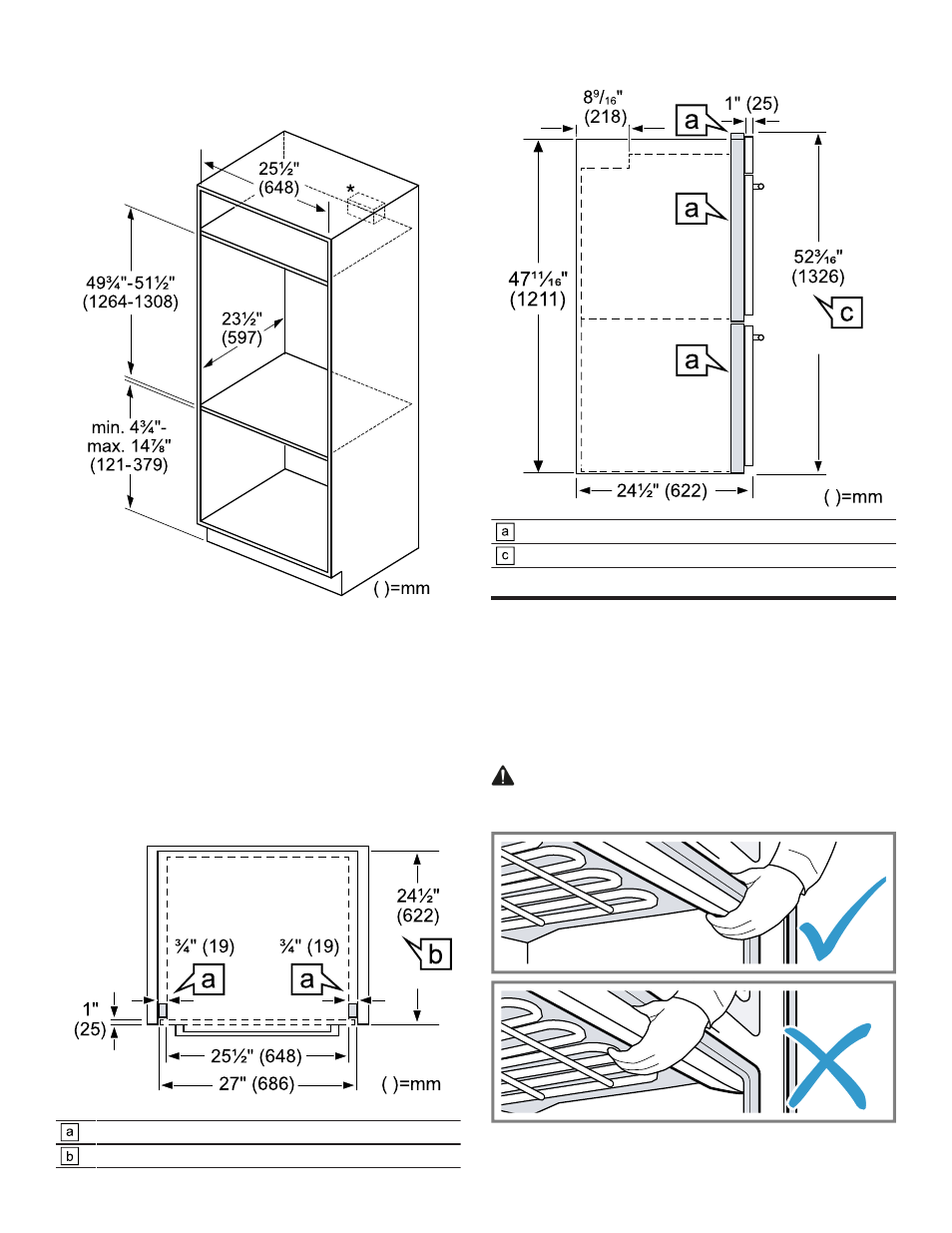

9.2 27" Double oven traditional installation
*Junction box location: above, left or right of the unit within
reach of the flexible conduit.
Control panel overlap: min. 3/8" (10mm) to max.
2" (51mm).
9.3 27" Double oven flush mount installation
Flush installation requires two side cleats to be attached
inside the cabinet frame, recessed from the front.
Top view
Reveal cleats
Flush inset depth
Side view
Reveal cleats
Flush cutout height
Prior to installation 10 Prior to installation
Prior to installation Carry out these steps to prepare your appliance for instal-
lation.
10.1 Lifting the appliance
Follow these recommendations to prevent injury and dam-
age to the appliance during lifting.
CAUTION
DO NOT attempt to lift the unit by holding the oven's upper
heating element.
