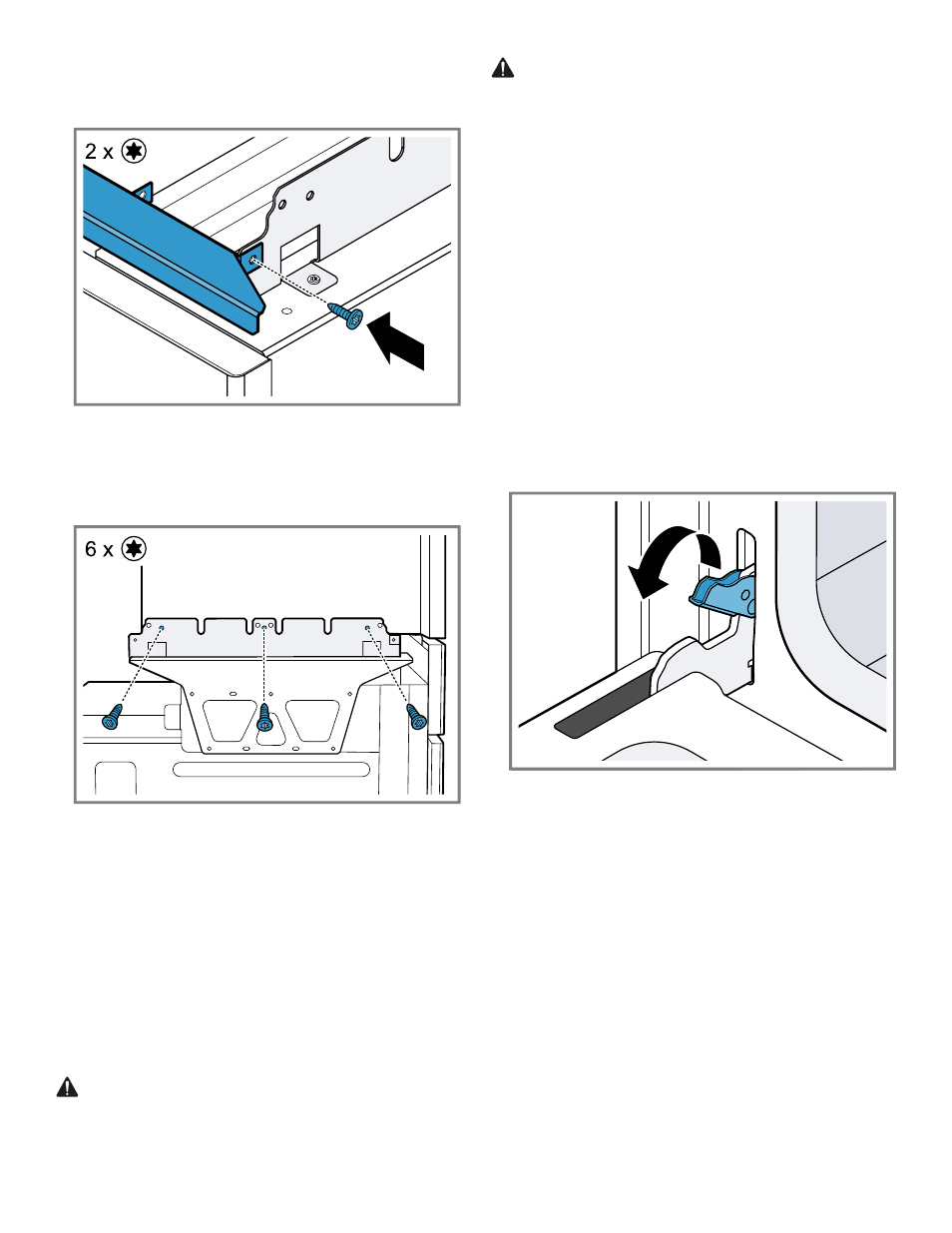

2. Align the outer flanges with the outside of the universal
brackets. Fasten with one (1) screw each into the end
hole of each universal bracket. Tighten the screws se-
curely, but do not overtighten.
Securing the upper unit on top of the lower oven
▶
Place the steam convection, speed or microwave oven
on top of the universal connector brackets and fasten it
in place using three (3) screws per side. Tighten the
screws securely, but do not overtighten.
The existing screws in the upper unit's base help with
alignment. When lowering the upper unit into place on
the universal connector brackets, allow these screw
heads to slide into the slots. The screw nearest the front
of the upper unit should slide into the base of the slope
at the front of the bracket.
10.5 Removing the oven door from bottom
hinge conventional ovens
It is recommended to remove the bottom hinge door of
conventional ovens to reduce the weight of the appliance
and to facilitate its handling and installation. For double
ovens with bottom hinge doors you can remove both oven
doors. Side hinge doors cannot be removed.
CAUTION
Do not try to remove the speed, steam or microwave oven
door. This might damage the appliance and lead to mal-
function later on.
WARNING
Failure to follow these instructions when removing the
oven door may lead to personal injury or product damage.
▶
Make sure oven is cool and power to the oven has been
turned off before removing the door. Failure to do so
could result in electrical shock or burns.
▶
The oven door is heavy and parts of it are fragile. Use
both hands to remove the oven door.
▶
The door front is glass. Handle it carefully to avoid
breakage.
▶ Grasp only the side of the oven door. Do not grasp the
handle. It may swing in your hand and cause damage or
injury. Failure to grasp the oven door firmly and properly
could result in personal injury or product damage.
▶
To avoid injury from hinge bracket snapping closed, be
sure both levers are securely in place before removing
the door.
▶
Do not force the door open or closed. The hinge could
be damaged and cause damage or injury.
▶
Do not lay the removed door on sharp or pointed ob-
jects as this could break the glass. Lay it on a flat,
smooth surface, positioned so that the door cannot fall
over.
1.
Open the oven door to its fully open position.
2.
Flip levers on hinges toward you.
If necessary, use a tool, such as a screwdriver, to gently
pry the upper part of the lever away from the housing.
Take care to avoid scratching the housing.
3. Bring both door hinge levers to their fullest down posi-
tion. The left and right door hinges differ slightly but op-
erate in the same manner.
