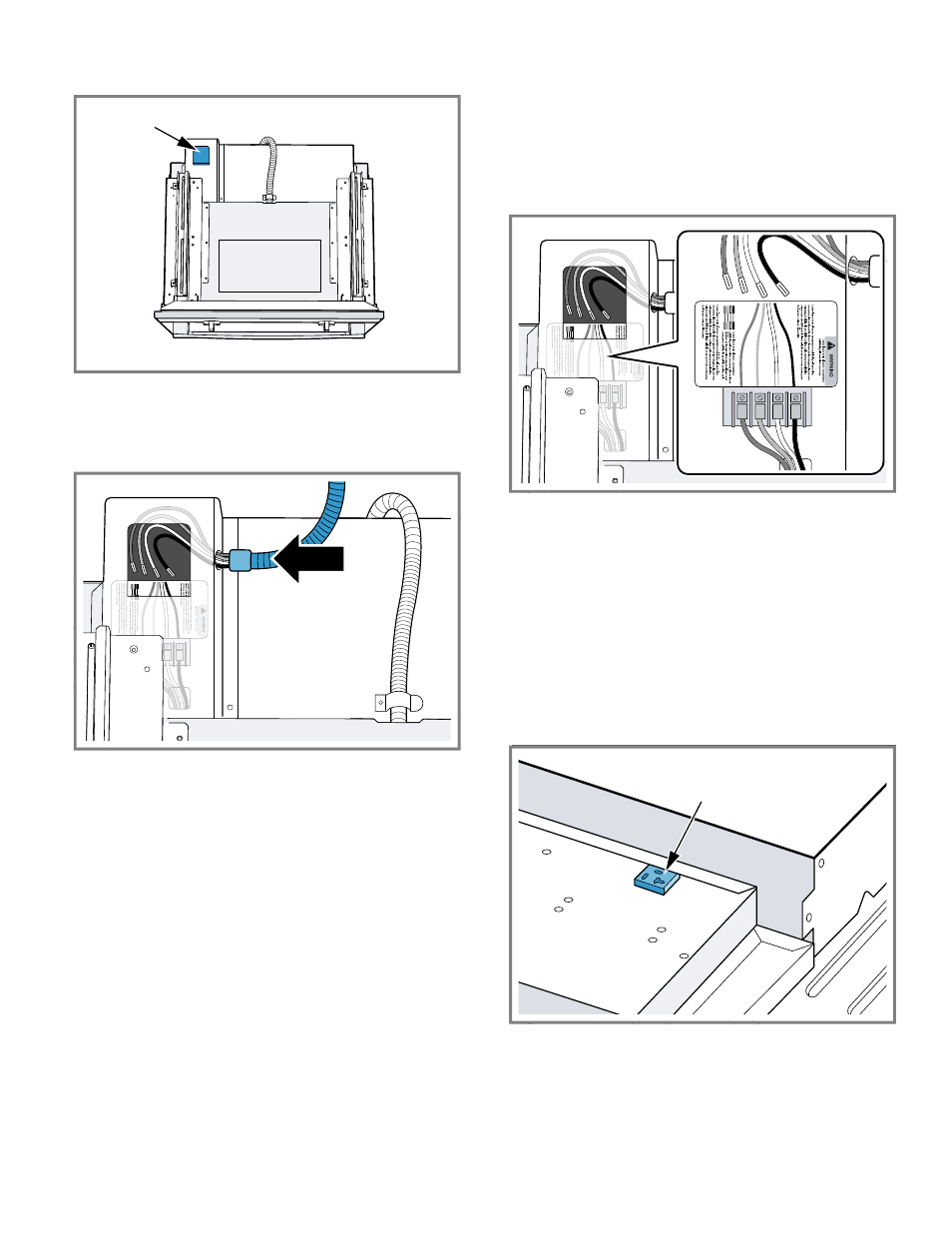

1. Remove the oven-mounted junction box cover located
on the top rear of the oven.
2.
Remove the cap from the conduit access hole in the
side of the oven-mounted junction box.
3.
Guide the wires from the conduit cable coming from the
speed oven or steam convection oven through the hole
in the oven-mounted junction box.
4. Snap the conduit connector into the hole by pressing it
in until it clicks into place.
5. Follow the wiring diagram label; tighten securely, but do
not overtighten.
‒
Match and connect each wire by color to the wires at-
tached to the wiring block inside the oven-mounted
junction box.
‒
Push the bare end of the wire until it is snug in the
wiring block then tighten down the retaining screw on
each wire.
‒
There are four wires coming from the speed oven.
6. Replace the oven-mounted junction box cover and
tighten the two screws holding it in place. Tighten se-
curely, but do not overtighten.
10.3 Connecting the microwave to the lower
oven
The power plug of the upper microwave oven of a combi-
nation oven must be plugged into the socket on the lower
oven.
1.
For microwave combination models HBL57M52UC and
HBL87M53UC and speed oven combination model
HBL8753UC: Plug the 120 V plug from the microwave
into the receptacle on the top rear of the lower oven.
2. For independent microwave model HMB50152UC or
speed oven model HMC80152UC: Connect the 120 V
plug from the microwave into a dedicated 120 V mi-
crowave/speed oven circuit. Refer to the installation
manual of the appliance.
