Bosch 500 Series 30 Inch Double Speed Combination Electric Wall Oven Installation Instructions - Manuel (Page 17)

Prior to installation en-us
17

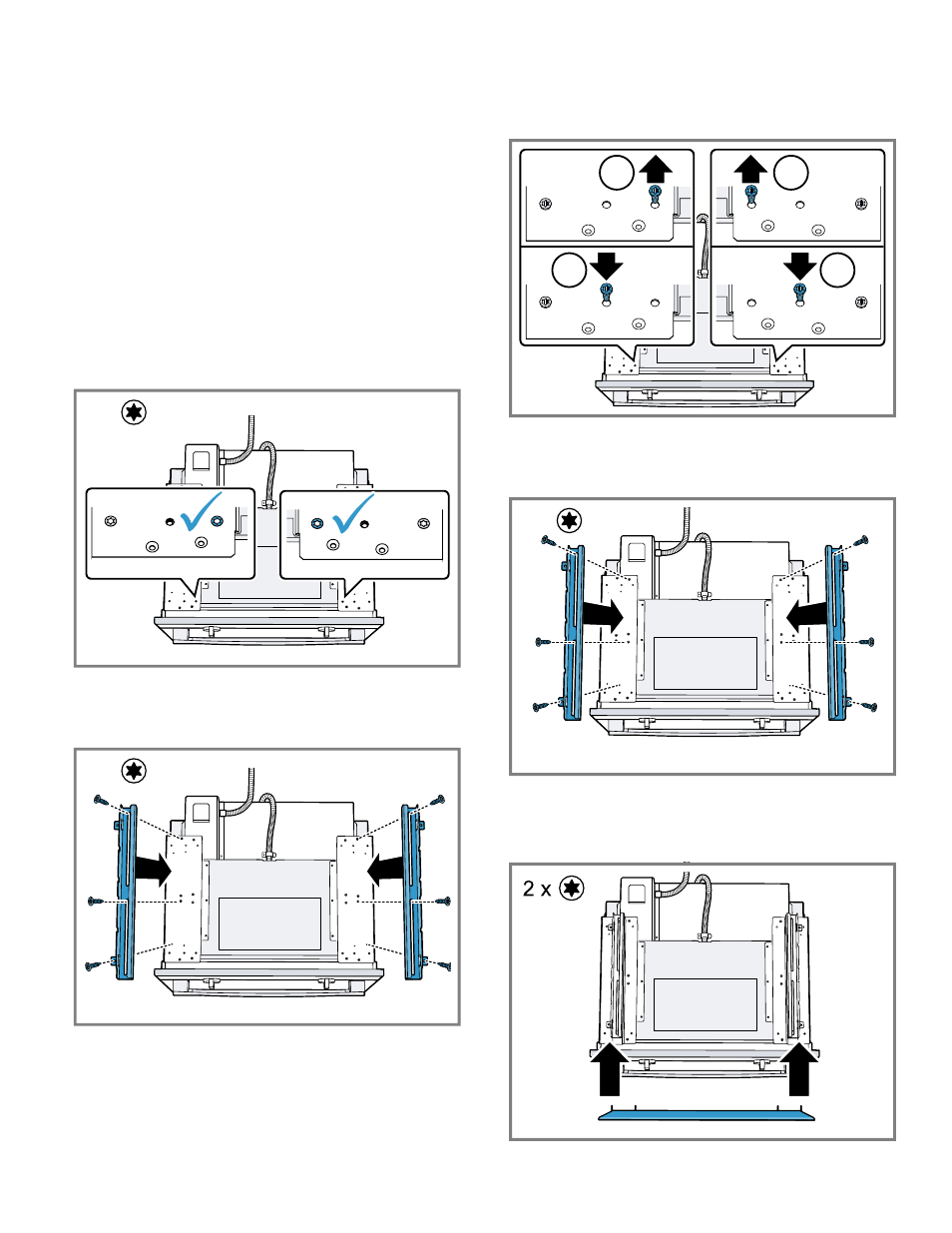

10.4 Assembly of the two combination oven
units
Secure the microwave, speed oven or steam convection
oven on top of the lower oven, before you place the oven
into the wall cabinet.
¡ Prepare the required installation parts.
→ "Additional parts included for combination ovens",
Page 5
¡ The universal connector brackets are interchangeable
for the left and right sides of the oven. Be sure the taller
vertical edge of the bracket is positioned to the outside
of the oven.
Attaching the connector brackets for a microwave
or speed oven
1.
Ensure that the two (2) screws closest to the front of the
support are on the inner and outer positions. The
screws are in this position on delivery.
2 x
2. Install both universal connector brackets on the outer
set of holes on top of the lower oven using six (6) of the
screws provided. Tighten screws securely, but do not
overtighten.
6 x
Attaching the connector brackets for a steam
convection oven
1. Ensure that the two (2) screws closest to the front of the
support are on the two outermost positions.
1
2
1
2
2.
Use a T-20 star bit screwdriver to install both universal
connector brackets on the inner set of holes on top of
the lower oven using six (6) of the screws provided.
Tighten screws securely, but do not overtighten.
6 x
Installing the decorative trim
1.
Position the decorative trim piece so that the flanges
with the holes face to the rear of the oven.
