Multi-Contact MA564 - Manuel (Page 3)

Advanced Contact Technology
www.multi-contact.com 3 / 6
1
2
3
4

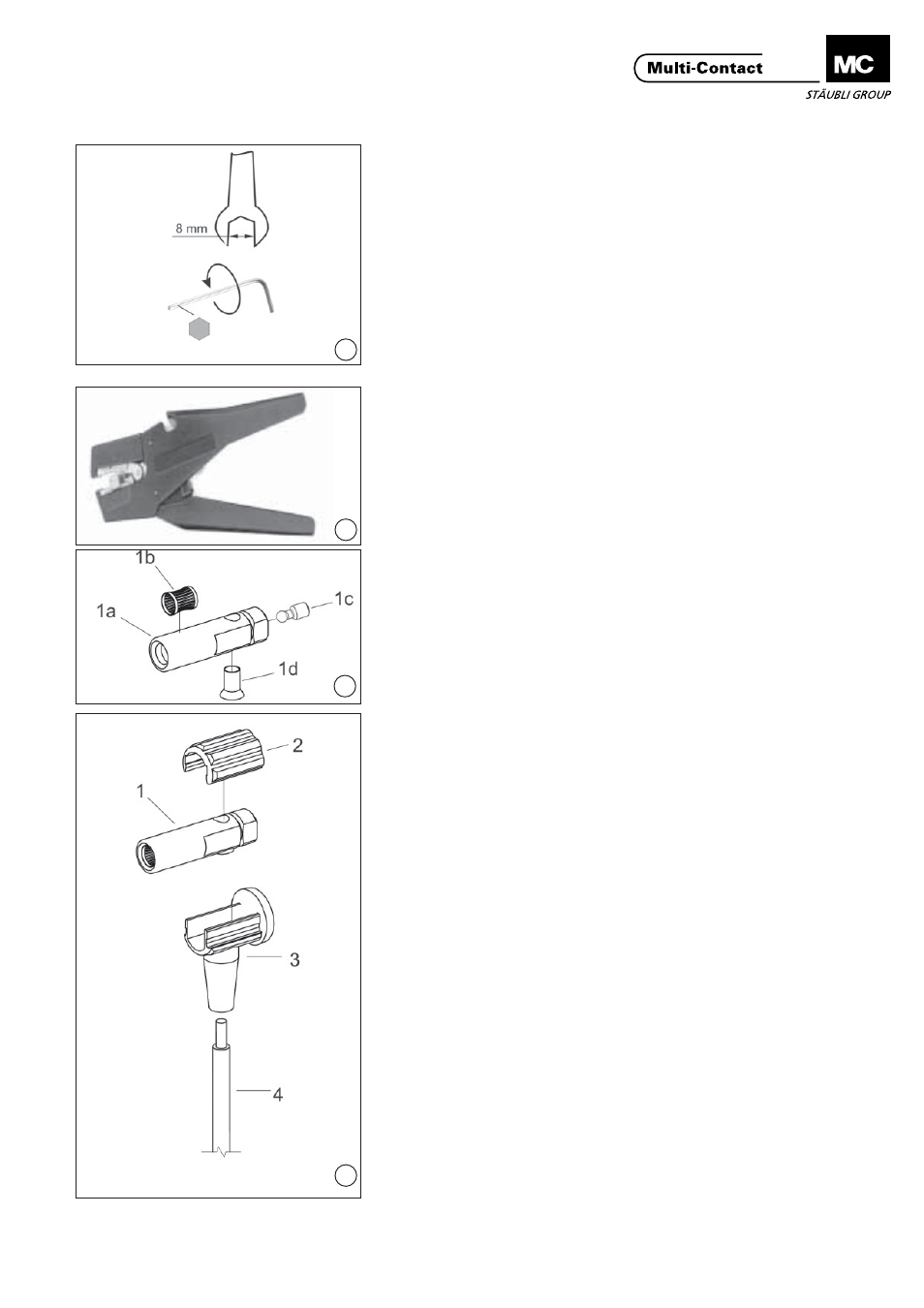

Outillage nécessaire Tools required
(ill. 1)
Clй а fourche (8mm)
Clé mâle à six pans (HOP2) (ill. 1)
Open spanner (8mm)
Hexagonal wrench (HOP2)
(ill. 2)
Pince à dénuder (ill. 2)
Insulation stripping pincers
Vue d’ensemble Overview
(ill. 3 et 4)
1 Connecteur femelle, assemblée en
usine, comprenant :
- prise femelle (1a)
- lamelle de contact (1b)
- vis sans tête (1c)
- embout (1d)
2 Parties supérieures d‘isolation
(vertes)
3 Parties inférieures d‘isolation
(jaunes)
4 Fils multi-brins (non fournis)
Diamètre extérieur :
- POAG-KBT6-EC/4: 4,8mm
- POAG-KBT6-EC/6: 5,9mm
Section du câble :
- POAG-KBT6-EC/4: 4,0mm²
- POAG-KBT6-EC/6: 6,0mm²
(ill. 3 and 4)
1 Socket, pre-assembled by the manu-
facturer, consisting of:
- Socket body (1a)
- Multilam (1b)
- Grubscrew(1c)
- Cable end sleeve (1d)
2 Upper part of insulator (green)
3 Lower part of insulator (yellow)
4 Stranded wire (not supplied)
Outer diameter:
- POAG-KBT6-EC/4: 4.8mm
- POAG-KBT6-EC/6: 5.9mm
Lead cross section:
- POAG-KBT6-EC/4: 4.0mm²
- POAG-KBT6-EC/6: 6.0mm²
