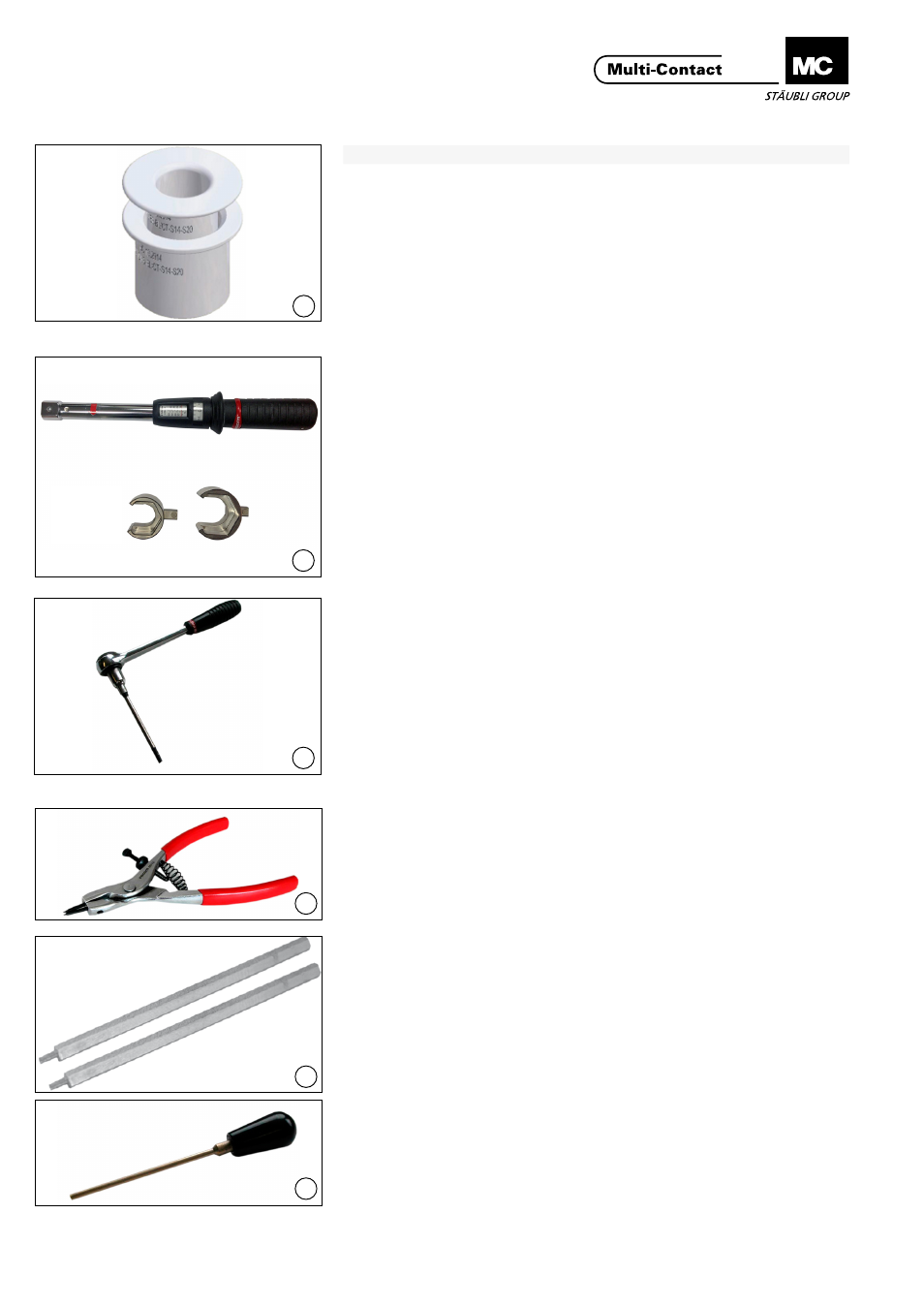

2. Montage des circlips 2. Retaining rings mounting
(ill. 2)
pour contacts 19.2236, 19.2237 et
19.2238
+ anneau de rétention 19.2625
Outil de montage des anneaux de
rétentionpourcontactØ14 mmet
Ø20 mmMPC-B
Type:MPC-TO/BS-BL/CT-S14-S20
No� de Cde� 19�2914
(ill. 2)
for contacts 19.2236, 19.2237 and
19.2238
+ retaining ring 19.2625
Mounting tool for retaining ring for
malecontactØ14 mmandØ20 mm
MPC-B
Type:MPC-TO/BS-BL/CT-S14-S20
Order No� 19�2914
(ill. 3)
Clédynamométrique(nonfourniepar
MC)etinserts:
B-MPC-TO/CGM-B/2,19.2927(M32)
C-MPC-TO/CGM-C/2,19.2928(M40)
(ill. 3)
Torquewrench(notprovidedbyMC)
and inserts:
B-MPC-TO/CGM-B/2,19.2927(M32)
C-MPC-TO/CGM-C/2,19.2928(M40)
(ill. 4)
Douille tournevis 1/2” pour vis CHC
M8(côtesurplat6 mm)
Longueur140 mm
Coupledeserrageentre12et13 Nm
(ill. 4)
Socket screwdriver 1/2” for hexagonal
M8metricsocketheadscrews(flat
sideon6 mm)
Length140 mm
Torquewrench(from12to13 Nm)
Outils de démontage Tools for dismounting
(ill. 5)
Pince à fermeture pour anneaux de
rétention(exemple:FACOMref469)
Type:MPC-TO/PL-CL
No� de Cde� 19�2934
(ill. 5)
Closingpliersforretainingrings(ex-
ample:FACOMref469)
Type:MPC-TO/PL-CL
Order No� 19�2934
(ill. 6)
Extension longue droite pour pince
d‘anneau de rétention
Type:MPC-TO/PL-LES
No� de Cde� 19�2935
(ill. 6)
Longstraightextensionforretaining
ring pliers
Type:MPC-TO/PL-LES
Order No� 19�2935
(ill. 7)
Outil de démontage des pions de
codage, de marquage et de bloquage
Type:MPC-TO/LP-CP-MP
No� de Cde� 19�2930
(ill. 7)
Dismounting tool for coding pin,
marking pin and locking pin
Type:MPC-TO/LP-CP-MP
No� de Cde� 19�2930
