8 9

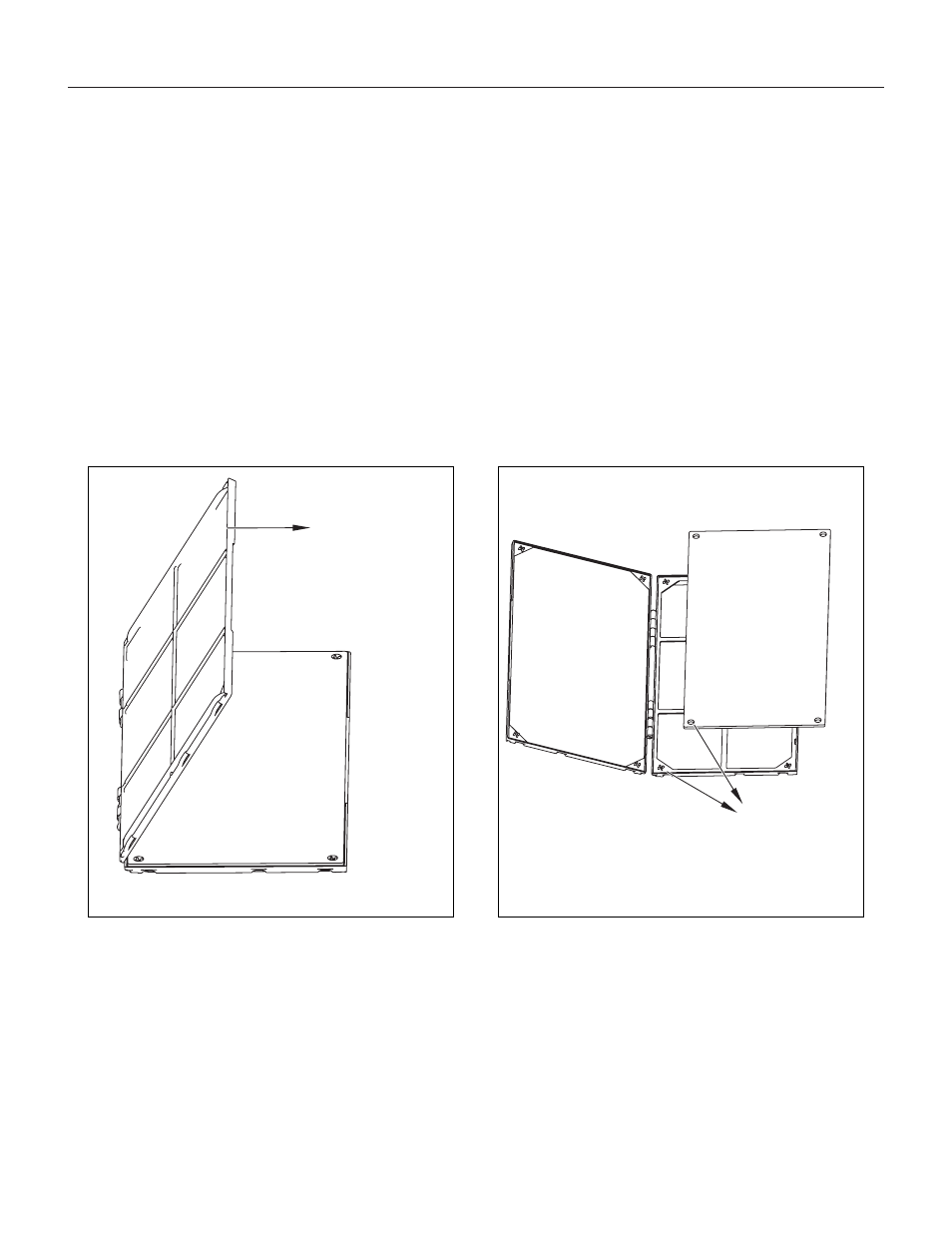

FRONT FRAME WITH
MESH FILTER
ALIGN HOLES WITH
PROTRUSION
Premium Carbon Filter Installation Instructions
STEP 4. Place the new carbon filter on the top of the back filter frame.
The carbon filter has been cut to the correct dimension and
should fit within the frame as shown in Figure 7.
NOTE: The carbon filter is not a reusable filter, and needs to be replaced
every three months for optimum efficiency.
STEP 5. Slide the filter handle back on to hold the frames together
and slide the assembly into the unit as per the instructions
on the door.
NOTE: The filter handle slides into the frame in only one direction. If the
tab in the frame stops the handle from sliding in, slide the handle
from the other direction. DO NOT FORCE THE HANDLE INTO
THE FRAME.
Figure 6
FRR050
STEP 1. Remove the filter from the unit as per the instructions on the
inside of the filter door.
STEP 2. Hold the filter at the top and slide the grip out as shown in
Figure 4.
STEP 3. If you already have a carbon filter installed remove the dirty filter
by laying the filter down and swinging open the front frame as
shown in Figure 6.
NOTE: Make sure the frame with the mesh is facing toward you.
Figure 7
FRR051
