28 29
SECURE THROUGH TOP
OR BOTTOM/ SIDE SCREW
HOLE USING EITHER THE 1 /
2
"
SCREWS (ITEM E: BLUE BAG)
OR THE 1 1 /
4
" SCREWS
(ITEM F: GREY BAG)
If you desire a more permanent installation, you can secure your curtains
using both screw holes and your unit sleeve directly to the lower window
stool using the instruction Steps 5.1 – 5.3 shown next. If you choose
the standard installation already covered in Steps 1 – 5, then you can
proceed to Step 6 on Page 31.
NOTE: WHEN REMOVING UNIT FROM SLEEVE AND CARRYING
OR HANDLING UNIT, OBTAIN ASSISTANCE OR HELP
AS NECESSARY TO SUPPORT UNIT FROM BOTTOM
(BASEPAN), MAINTAINING CLEARANCE FROM ALL
OBSTACLES (Figure 59).

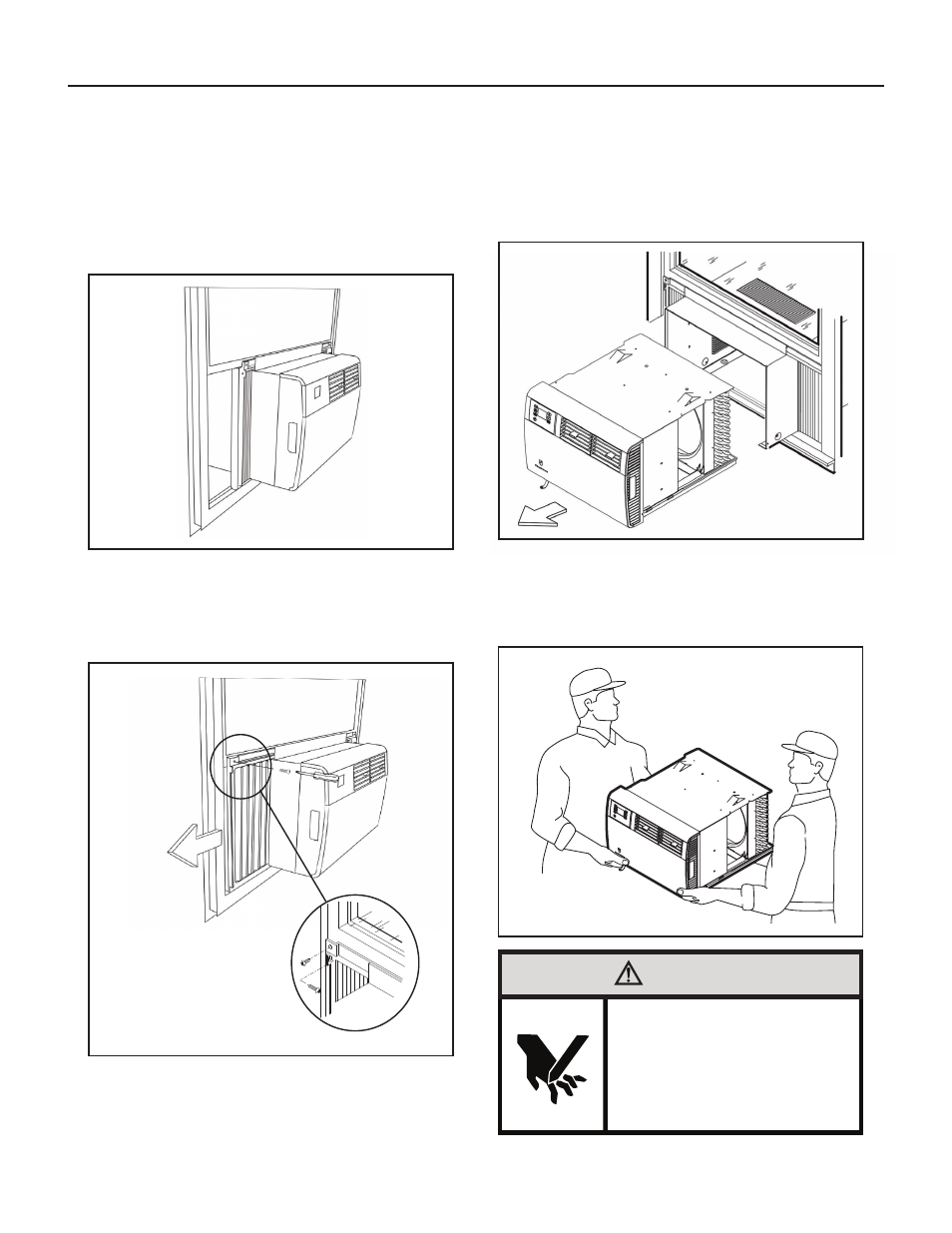

STEP 4. Place unit in window with the bottom support rail up against
the back edge of the window sill. Center and close window
sash onto upper support rail. The unit should be level or slightly
tilted outside (Figure 56). NOTE: Depending on the type of
window, install the appropriate security lock as recommended
by manufacturer.
STEP 5. Extend side curtains to fill window. Secure outer top corner of
each curtain (left and right) to window jamb and/ or window sash
using supplied screws. Two sizes of screws (E and F in parts
list) and 2 different screw hole locations have been provided to
accommodate varying window types (Figure 57).
STEP 5.1. Pull unit from sleeve, using the side handles located on either
side of the decorative front. Obtain assistance as needed.
Place unit out of the way on a secure, flat surface (Figure 58).
Figure 56
Figure 57
CAUTION
Cut/Sever
Although great care has been
taken to minimize sharp edges
in the construction of your unit,
use gloves or other hand
protection when handling unit
Failure to do so can result in minor
to moderate personal injury.
Figure 58
Figure 59
Standard Window Installation continued
