CIRCUIT PROTECTION - If the air conditioner is circuit protected by
a fuse, use a "TIME DELAY” fuse or HACR type circuit breaker due to
momentary high current demand when your air conditioner is started.
Before operating your unit, verify the ampere rating of the time-delay
fuse or circuit breaker which protects your unit. The ampere rating of the
time-delay fuse or circuit breaker shall be 15 amps.
Cord Routing Change
Unplug unit.
Your Kühl Q unit will come with the power cord already installed and
routed to the left side of the unit.
For convenience and optimum appearance the direction of the power
cord can be changed from left to right by following the procedure below.
Select the exit location on the left or right based on proximity to the power
outlet (Figure 63).
EntryGard ™ Security Lock
For additional safety, your unit is equipped with EntryGard ™ protection, a
feature that helps prevents kick-in intrusions. To engage this feature, use
2 supplied 1 /
2
" screws (E in parts list) to secure decorative front cover to
sleeve. See the top image in Figure 63 for screw hole locations.

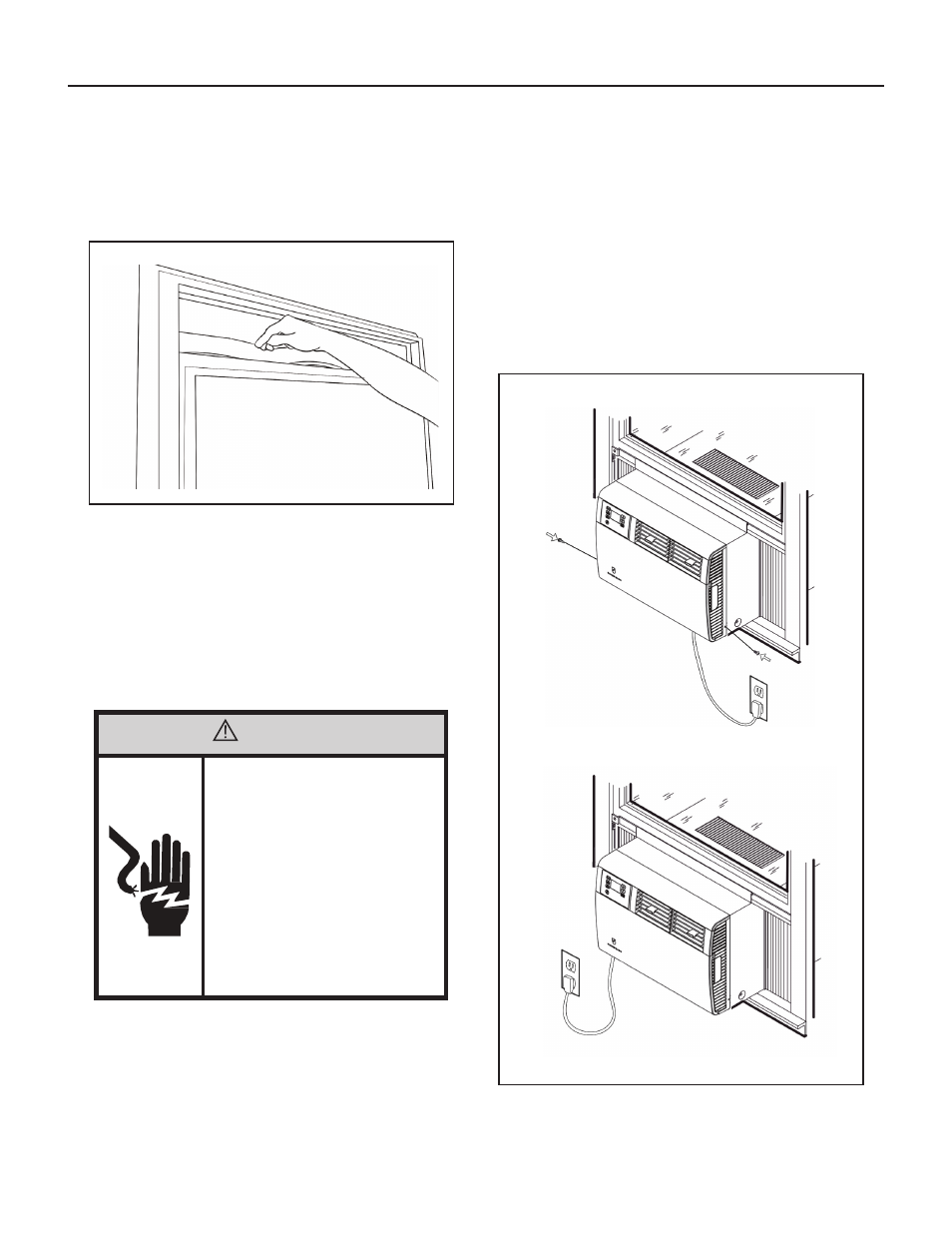

STEP 6. Cut the window seal gasket (C in parts list) to match the window
width and insert it between the window sashes as shown in
Figure 62.
Standard Window Installation continued
Figure 62
STEP 7. Plug in unit.
Now that installation is complete, your unit is ready to operate! Simply
plug in the power cord and follow the operation steps outlined in this
manual or your QuickStart Guide.
WARNING
Electrical Shock Hazard
Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.
Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.
Always plug into a grounded 3 prong outlet.
Failure to follow these instructions can result
in death, fire, or electrical shock.
Figure 63
A.
B.
