34 35
Figure 68
STEP 1
Figure 69
STEP 2
Figure 70
Thru-the-Wall Installation
WARNING
Falling Object Hazard
Not following Installation Instructions
for mounting your air conditioner can
result in property damage, injury, or
death.

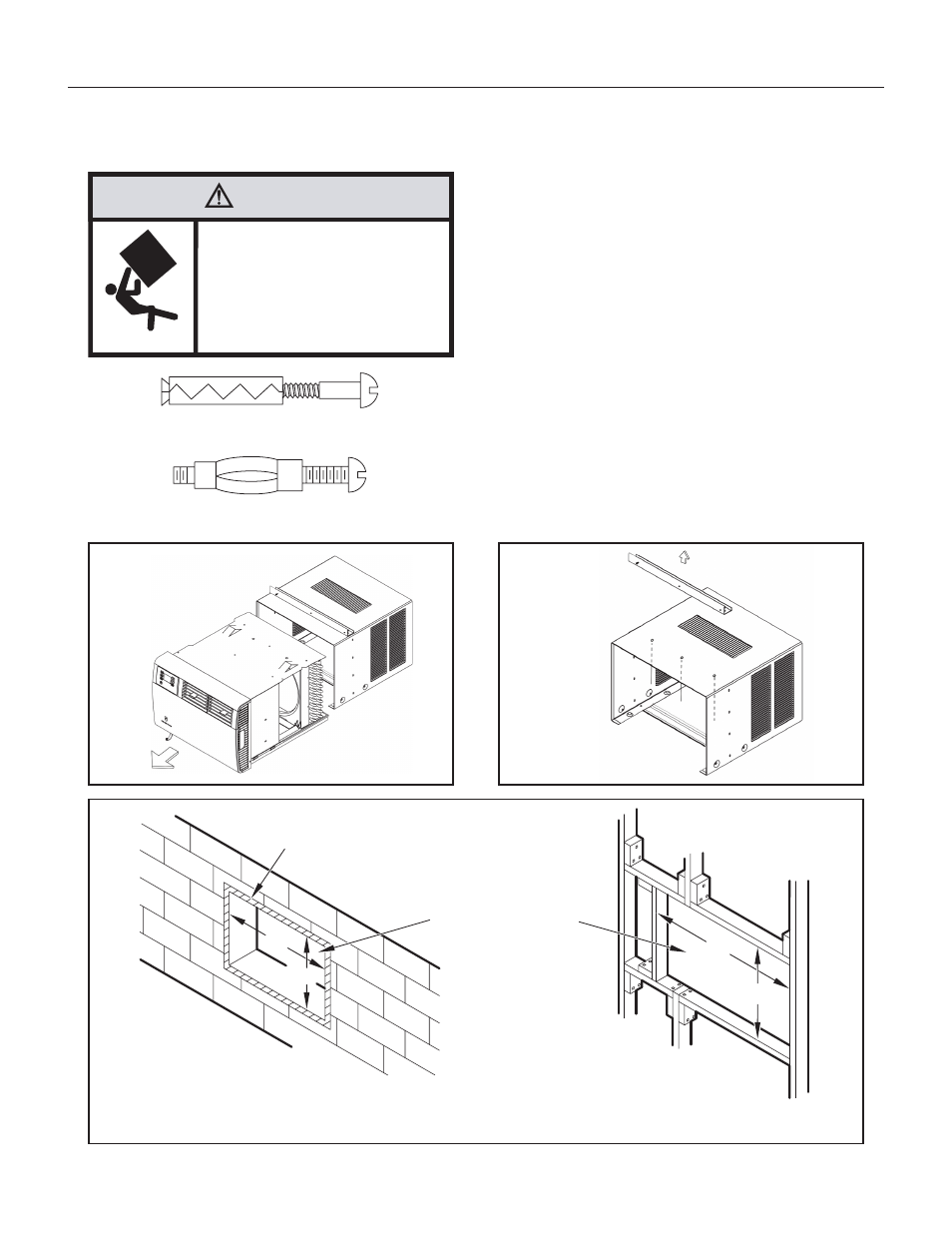

STEP 1. After removing the unit from shipping carton, slide chassis out
of sleeve (Figure 68).
STEP 2. Remove shell channel from top of the sleeve (Figure 69).
NOTE: Not applicable to heat pump models sold without quick
mounting sleeve.
STEP 3. Layout - Cut and frame-in an opening in the desired wall area
using the illustration as a guide (Figure 70).
STEP 4. Place the sleeve in the framed opening.
NOTE: Not applicable to heat pump models sold without quick mounting
sleeve.
STEP 5. Position the front edge to extend into the room 3 /
4
" minimum
at top of sleeve and 1" minimum at bottom (Figure 71).
STEP 6. Secure each side of the sleeve with supplied 1 ¼" screw
(F in parts list) or nails through the holes in the sides.
NOTE: Alternate fasteners which may be used for securing the unit
sleeve to a wall, including masonry walls, are not furnished
(available at local hardware stores).
2" x 8" FRAME
FINISHED OPENING SIZE
20"
14 1 /
4
"
20"
14 1 /
4
"
CONCRETE BLOCK CONSTRUCTION FRAME CONSTRUCTION
EXPANSION ANCHOR BOLT
MOLLY OR TOGGLE BOLT
FRR091
