32 33
A. B.

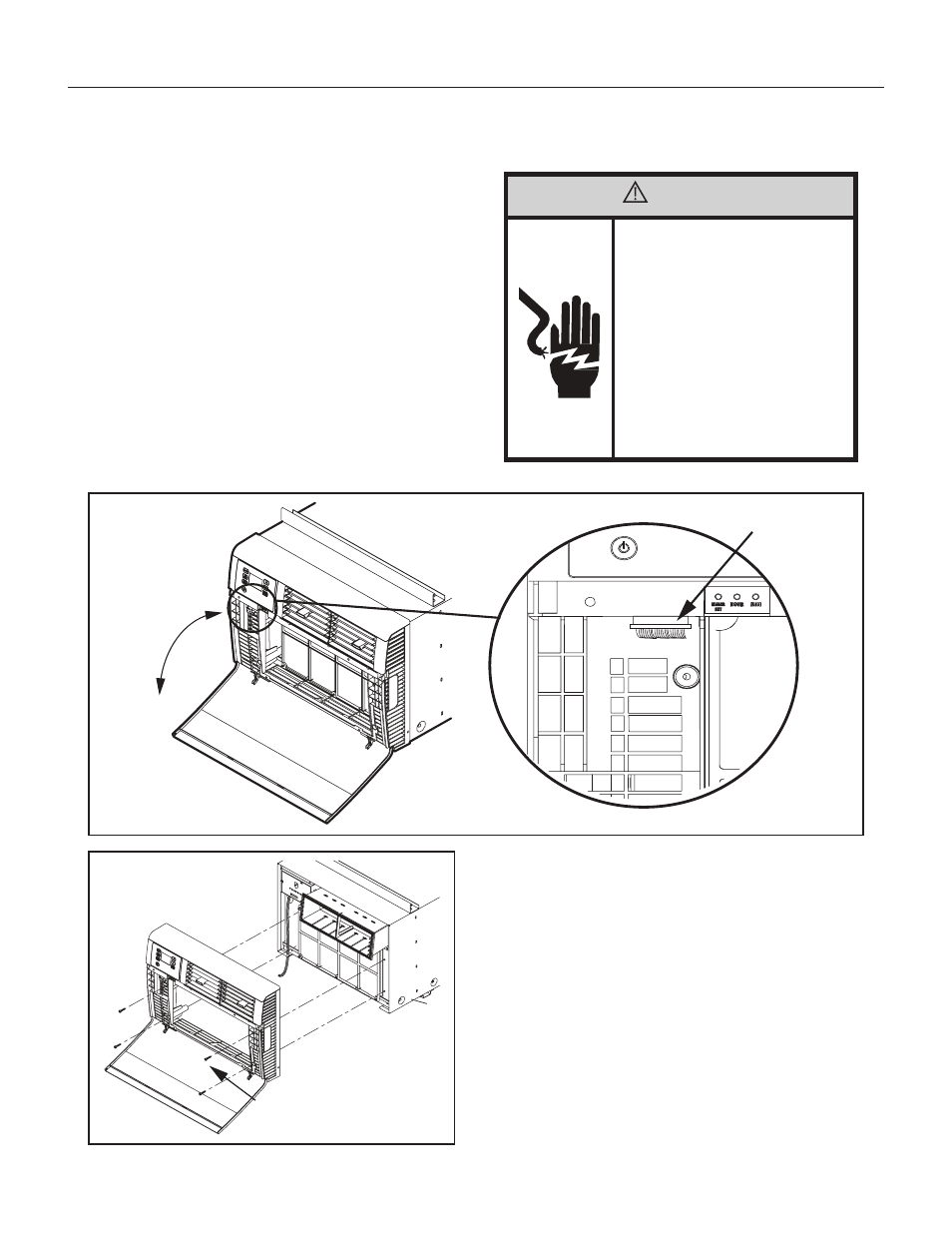

Cord Routing Change continued
Figure 64A
A.
Open the decorative front cover.
B. Locate and disconnect electronic control power cable harness.
C. Remove 4 screws attaching decorative front cover.
Save to reinstall later.
D. Remove decorative front cover. Store in a safe place to reinstall later.
Figure 64B
Standard Window Installation continued
STEP 1. Remove the decorative front cover. See A through D and
Figures 64A and 64B below.
STEP 2. Route the cord along bottom inside of the unit (see Figures 65
and 66), under the lower left mounting screw embossments and
exit the cord through right side cord opening (see Figure 66) of
the decorative front cover. Decorative front cover will keep cord
in place.
STEP 3. Reinstall the 4 screws removed earlier to secure decorative front
cover with cord exiting to the front bottom of the unit (4 screws
retained from Step 1 ).
C.
WARNING
Electrical Shock Hazard
Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.
Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.
Always plug into a grounded 3 prong outlet.
Failure to follow these instructions can result
in death, fire, or electrical shock.
