Standard Filter Cleaning / Installation Instructions

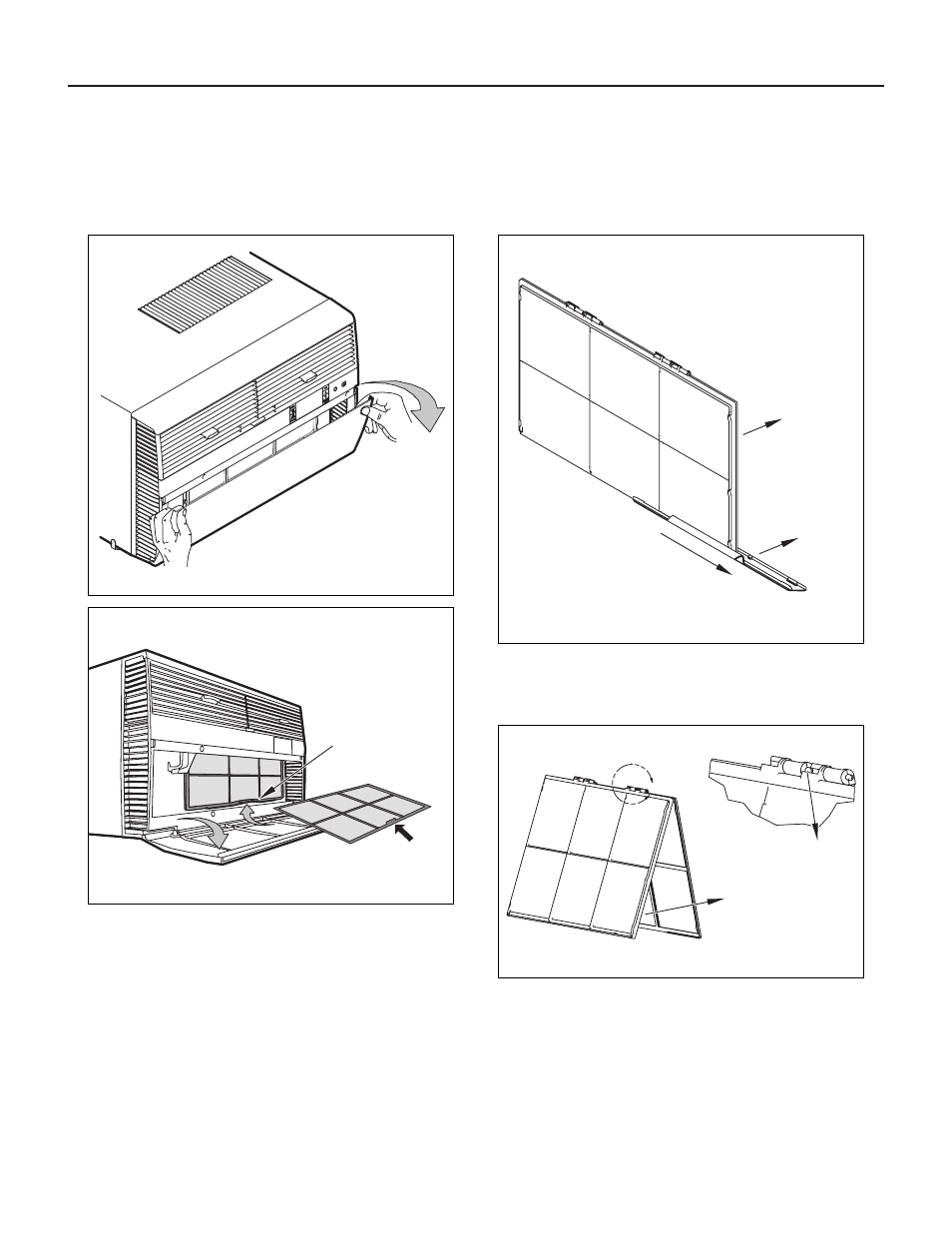

STEP 1. Swing the door open and remove the filter by grasping the filter
grip and pushing the filter holder upward and outward.
STEP 2. Slide the filter grip out from the filter as shown in Figure 4.
NOTE: Make sure the front frame with the mesh filter is facing you.
Figure 2
Figure 3
FRR052
Figure 4
FRR047
STEP 3. Swing the front frame open. Clean the front frame by washing
the dirt from the filter. Use a mild soap solution if necessary.
Allow filter to dry.
Figure 5
FRR048
STEP 4. Install the filter grip back into the filter by sliding it into the filter.
NOTE: The filter handle slides into the frame in only one direction. If the
tab in the frame stops the handle from sliding in, slide the handle
from the other direction. DO NOT FORCE THE HANDLE INTO
THE FRAME.
STEP 5. Install the filter back into the unit. Follow the instructions on the
inside of the front door.
