MAINTENANCE
Headlamp Adjustment
The headlamp should shine straight ahead of the
motorcycle. The top of headlamp high beam
should be just below the center of the lamp at a
distance of 25 feet (7.62 m). The low beam
pattern spreads farther right of center than the
high beam (U.S. & Canada).
1. Check and adjust the tire pressure (page 115)
2. Verify rear suspension ride height
measurement is 120mm (4--3/4 inch) (see
page 93) before adjusting headlight.
3. Straddle the motorcycle in an upright position
and sit in the operator’s seat.
4. Set the ignition switch to the ON position
and set the headlamp to High beam. Check
the headlamp for correct aim.
5. To adjust the headlamp vertically, loosen pivot nut (1) while holding
bolt. Aim headlight and hold in position while tightening nut.
Torque: 35 ft-lbs (47.5 Nm)
6. To adjust the lamp horizontally, loosen the nut (2), aim headlight and
hold in position while tightening nut.
Torque: 28 ft-lbs (38 Nm)
7. Verify proper headlamp adjustment and re-adjust if necessary.

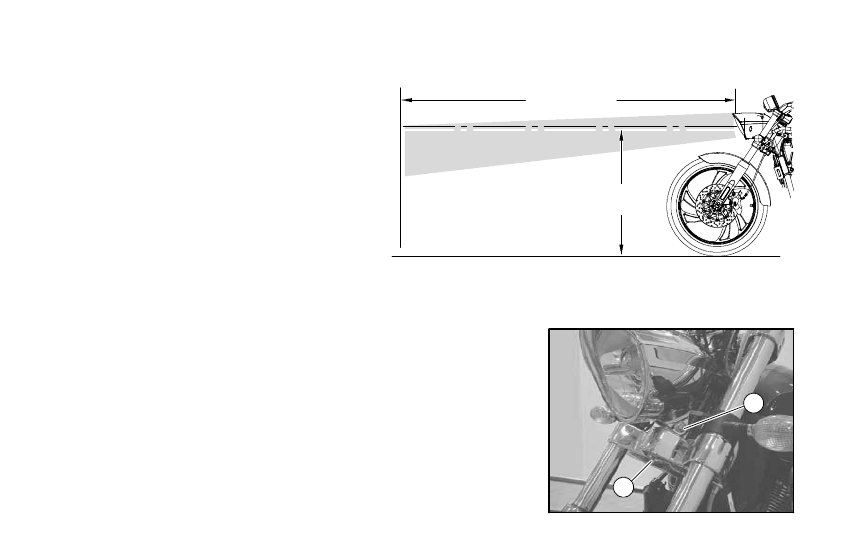

25 feet (7.62 m)
Center of Headlamp
1
2
