Chapter 3 - Viewfinders 165
14 cm viewfinder
THOMSON TTV 1657D
User manual
B1657D902C
Septembre 2000
3.2 - 14 CM VIEWFINDER
3.2.1 - Principal characteristics
• Passband: - 1 dB at 5 MHz.
• Input signal: 1 V p/p - 1 kOhm or 75 Ohms (switchable).
• Supply voltage: 11 Volts to 17 Volts.
• Consumption: approximately 12 W with video signal and "on air" indicator lights lit.
• Dimensions: 290 x 148 x 134 mm.
• Geometry and linearity: line < 3%, field < 2%.
CAUTION!
To prevent any risk of destruction, do not expose this viewfinder to rain or humidity.
Due to high voltages inside the viewfinder, the cover should be removed only by quali-
fied personnel.

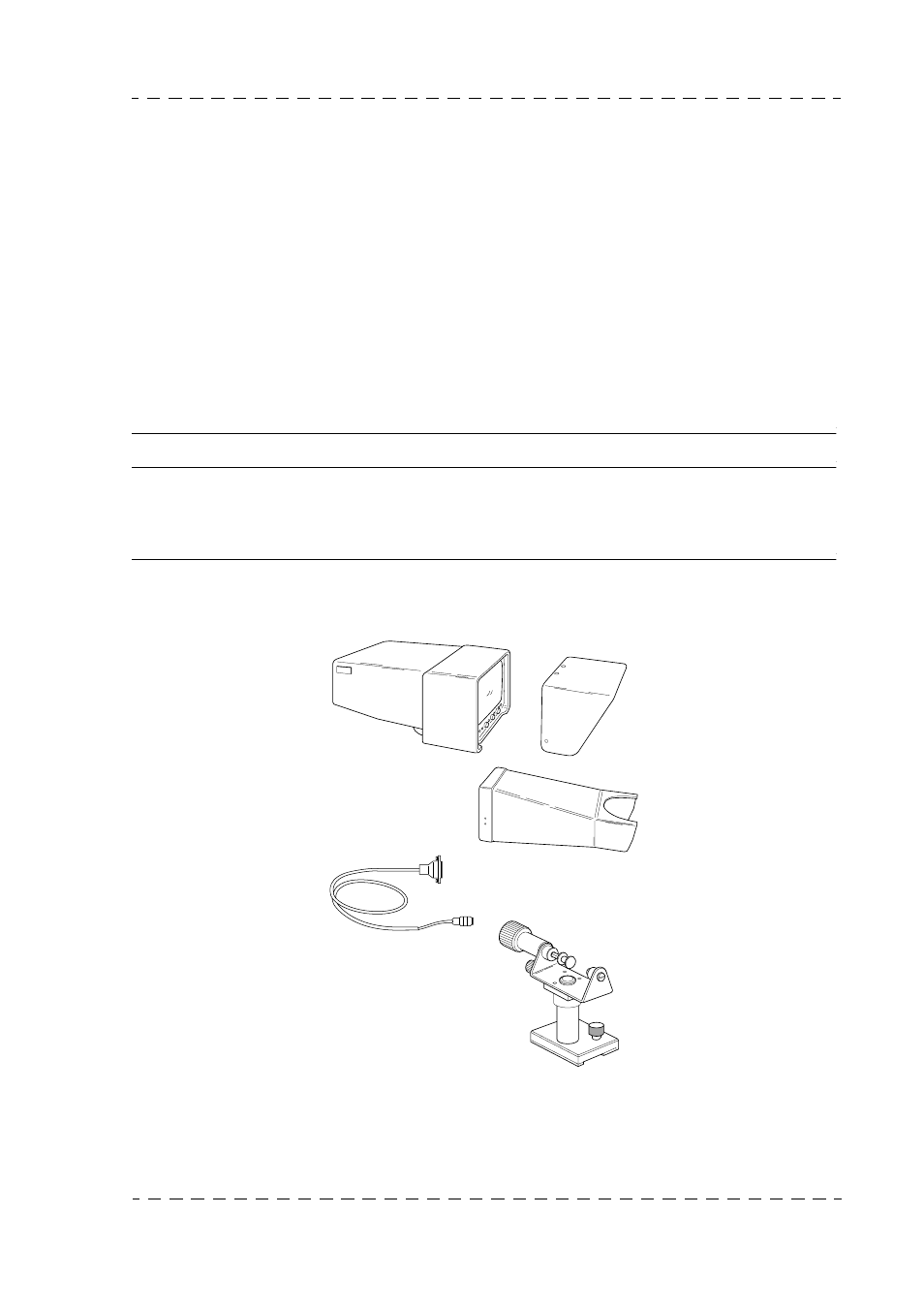

3.2.2 - Accessories
Camera interconnection cable
Pan and tilt mounting
Long visor
Short visor
