118 Chapter 2 - Camera
Description
B1657D902C
Septembre 2000
THOMSON TTV 1657D
User manual

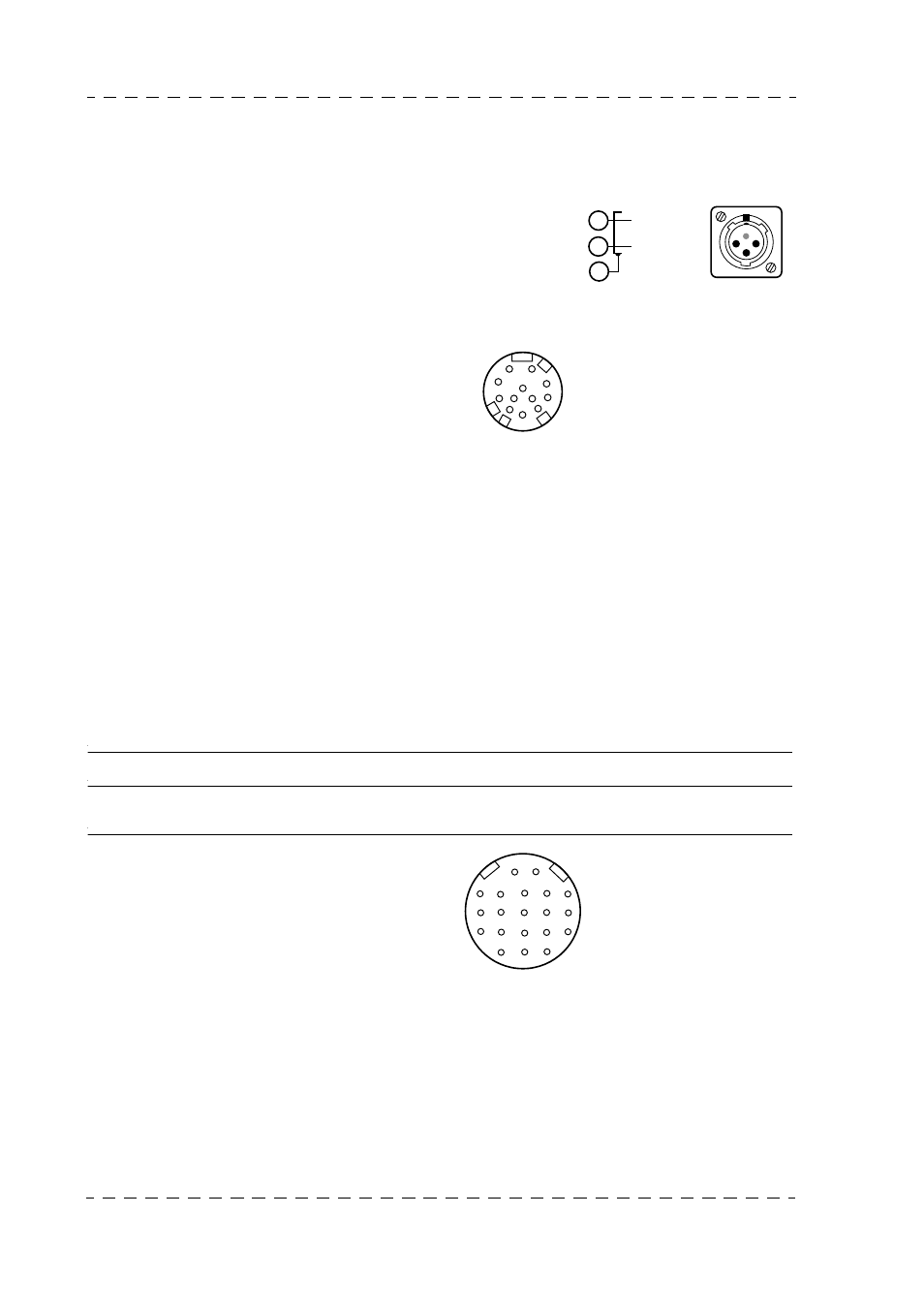

1 - Accessory attachment (mic, lamp, etc.)
2 - "MIC" connector
Microphone input (- 60 dB).
A phantom supply voltage of 12 V DC is provided on
this connector.
3 - "LENS" connector
Lens connection.
4 - "VIEWFINDER" socket
Viewfinder connection.
The video available on this socket may be: Y, R, G, B (R - G), (B-G) or external video
(level 1 V p-to-p/75 Ohms).
NOTE:R, G, B video are not available in bars pattern position (Y is displayed).
Refer to camera operation.
3
2
1
XL RNCF 30-V
1
2
3
10
12 11
5
6 4
3
2
1
9
8
7
1 : Lens video ext SW
2 : Lens start/stop.
3 : -BATT.
4 : 5v Auto Lens.
5 : Iris Ctrl.
6 : +BATT.
7 : Iris position.
8 : Iris Remote/Local.
9 : Extender On/Off.
10 : Zoom position .
11 : Focus position .
12 : On Air lens.
Socket
HR-10-10R-12S
Ref : 91.553.055
Corresponding plug
HR-10-10P-12P
Ref : 91.582.124
12
17
20 19 18
13
8
14 15 16
11 10 9
7
2 1
3 6 5 4
Female socket
DJ-211N-605 SPE.
Ref. 96.103.316
Corresponding plug
EJ-212J-610.
Ref. 96.103.314
1 : Video OUT
2 : Video GND
3 : +9.1v
4 : GND
5 : Ind +12v BATT
6 : Shield GND
7 : Audio cont VTR
8 : Not connected
9 : MISO
10 : MOSI
11 : SCK
12 : Tally Rec
13 : SS0
14 : SS1
15 : Not connected
16 : Not connected
17 : Video 2 OUT
18 : Video 2 GND
19 : Video 3 OUT
20 : Video 3 GND
