STEM DROP INSTALLATION INSTRUCTIONS
1) Pass fixture wire through long threaded pipe.
2) Screw end threaded pipe into coupling on top of fixture body.
3) Lower tube down over threaded pipe.
4) Pass hole in check ring over end of threaded pipe. Set
check ring on top of tube.
5) Thread coupling onto threaded pipe.
6) Pass wire from fixture through stem and screw stem to top
of fixture. NOTE: Thread locking compound must be applied
to all stem threads as noted with symbol (3) to prevent
accidental rotation of fixture during cleaning, relamping, etc.
7) Pass fixture wire through remaining stems and screw stems
together.
8) Thread one small threaded pipe into end of each small loop.
9) Attach small loop to end of last stem.
10) Pass threaded pipe at end of second small loop through
hole in canopy.
11) Slip lockwasher over threaded pipe protruding from inside of
canopy. Screw hexnut onto threaded pipe.
12) Attach chain link to small loop at end of stem and to loop on
canopy.
13) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF”
position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
14) Find the appropriate threaded holes on mounting strap.
Assemble mounting screws into threaded holes.
15) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
16) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
17) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy.
18) Secure fixture to ceiling with threaded balls.
19) Raise shade up to fixture. Align holes in bracket on shade
with holes in bracket on fixture body..
20) Thread screws down through holes in bracket on fixture
body and into holes in bracket on shade.
21) Thread ball knobs on to ends of screws. Tighten ball knobs
to secure shade in place.
SEMI FLUSH INSTALLATION INSTRUCTIONS
1) Screw end of threaded pipe into coupling on top of fixture
body.
2) Lower tube down over threaded pipe.
3) Pass hole in check ring over end of threaded pipe. Set
check ring on top of tube.
4) Pass hole in canopy over end of threaded pipe. Set canopy
on top of check ring.
5) Slip lockwasher over end of threaded pipe. Thread hexnut
onto threaded pipe. Tighten hexnut to secure canopy in
place.
6) Follow steps #13-21 in Stem Drop Installation Instructions.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 11/16/12 IS-65363-CB
MOUNTING STRAP
COLLIER DE FIXATION
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada

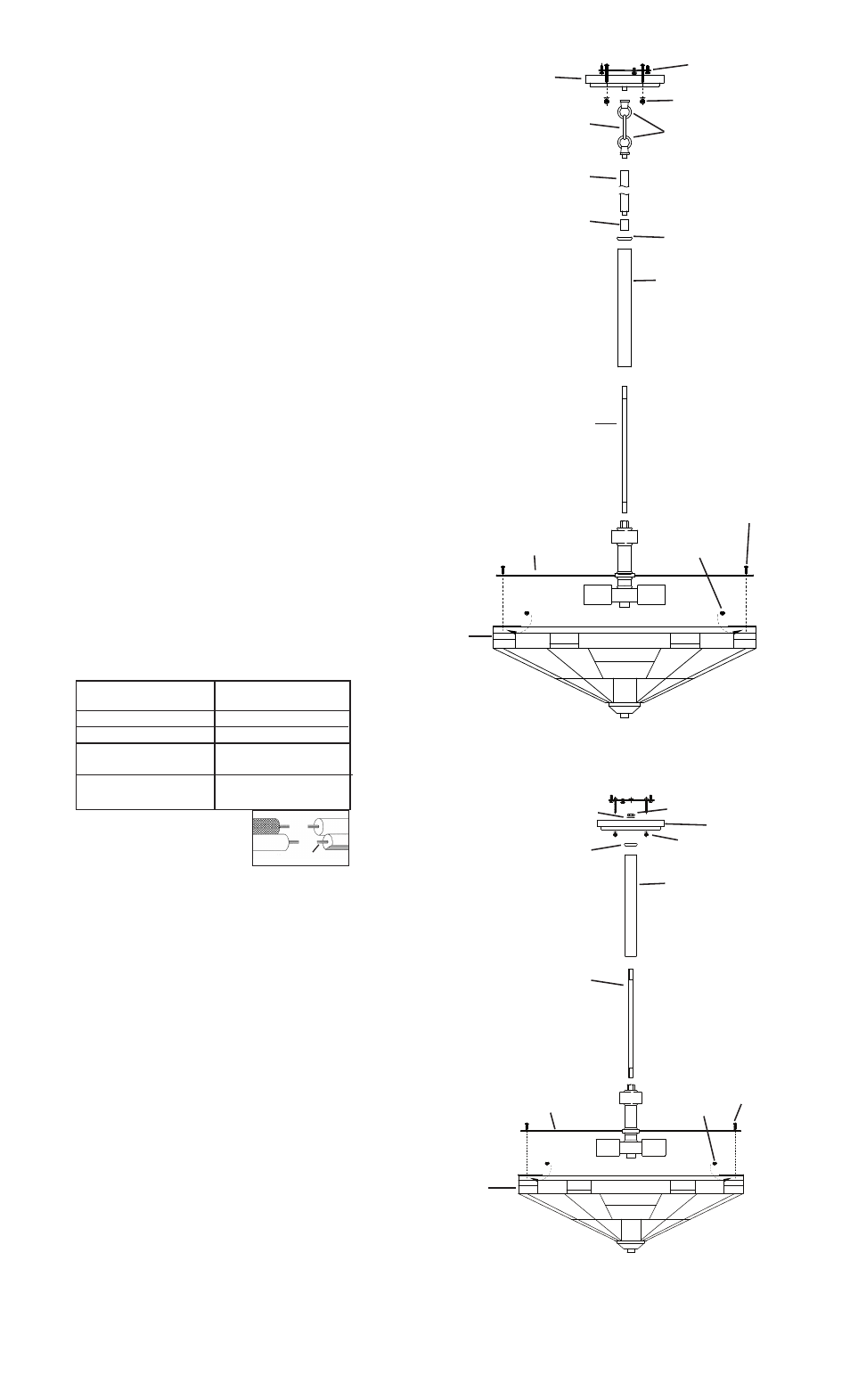

THREADED BALL
