IMPORTANT SAFETY INSTRUCTIONS

LIGHTED BULB IS HOT!

WARNING: To reduce the risk of FIRE or INJURY TO PERSON:
• Turn off and allow to cool before replacing bulb.
• Bulb gets HOT QUICKLY! Contact switch only when turning off.
• DO NOT remain in light if skin feels warm. (Light is intense,
may cause “sunburn”)
• DO NOT look directly at lighted bulb.
• Keep materials away from bulb that may burn.
• Use ONLY with wattage specified or lower.
• DO NOT touch bulb at any time, use a soft cloth. Oil from skin
may damage bulb.
• DO NOT operate fixture with missing or damaged glass.

1) Pass wire from fixture through stem and screw stem to top
of coupling.
NOTE: Thread locking compound must be applied to all
stem threads as noted with symbol (3) to prevent accidental
rotation of fixture during cleaning, relamping, etc.
2) Pass fixture wire through remaining stems and screw stems
together.
3) If using swivel for sloped ceilings, pass fixture wire through
swivel and thread swivel onto top of last stem.
4) Thread small threaded pipe into end of swivel.
5) Pass threaded pipe on end of swivel up through hole in
canopy.
6) Slip lockwasher over end of threaded pipe protruding from
inside canopy. Thread hexnut onto threaded pipe. Tighten
hexnut to secure swivel to canopy.
NOTE DIRECTION OF SWIVEL IN ACCORDANCE WITH
CEILING.
7) If not using swivel, thread small threaded pipe into end of
last stem.
8) Pass threaded pipe on end of stem up through hole in
canopy.
9) Slip lockwasher over end of threaded pipe protruding from
inside canopy. Thread hexnut onto threaded pipe. Tighten
hexnut to secure stem to canopy.
10) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

11) Find the appropriate threaded holes on mounting strap.
Assemble mounting screws into threaded holes.
12) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
13) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.

14) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy.
15) Secure fixture to ceiling with knurl knobs.
16) Raise glass up to fixture. Pass hole in glass over socket.
17) Thread socket ring onto socket. (DO NOT over tighten.)
18) Insert recommended bulb. CAUTION: DO NOT touch bulb
with bare hands. If this happens, clean bulb with denatured
alcohol and a lint free cloth.
19) Slip glass sleeve over bulb.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 12/28/12

IS-42016-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

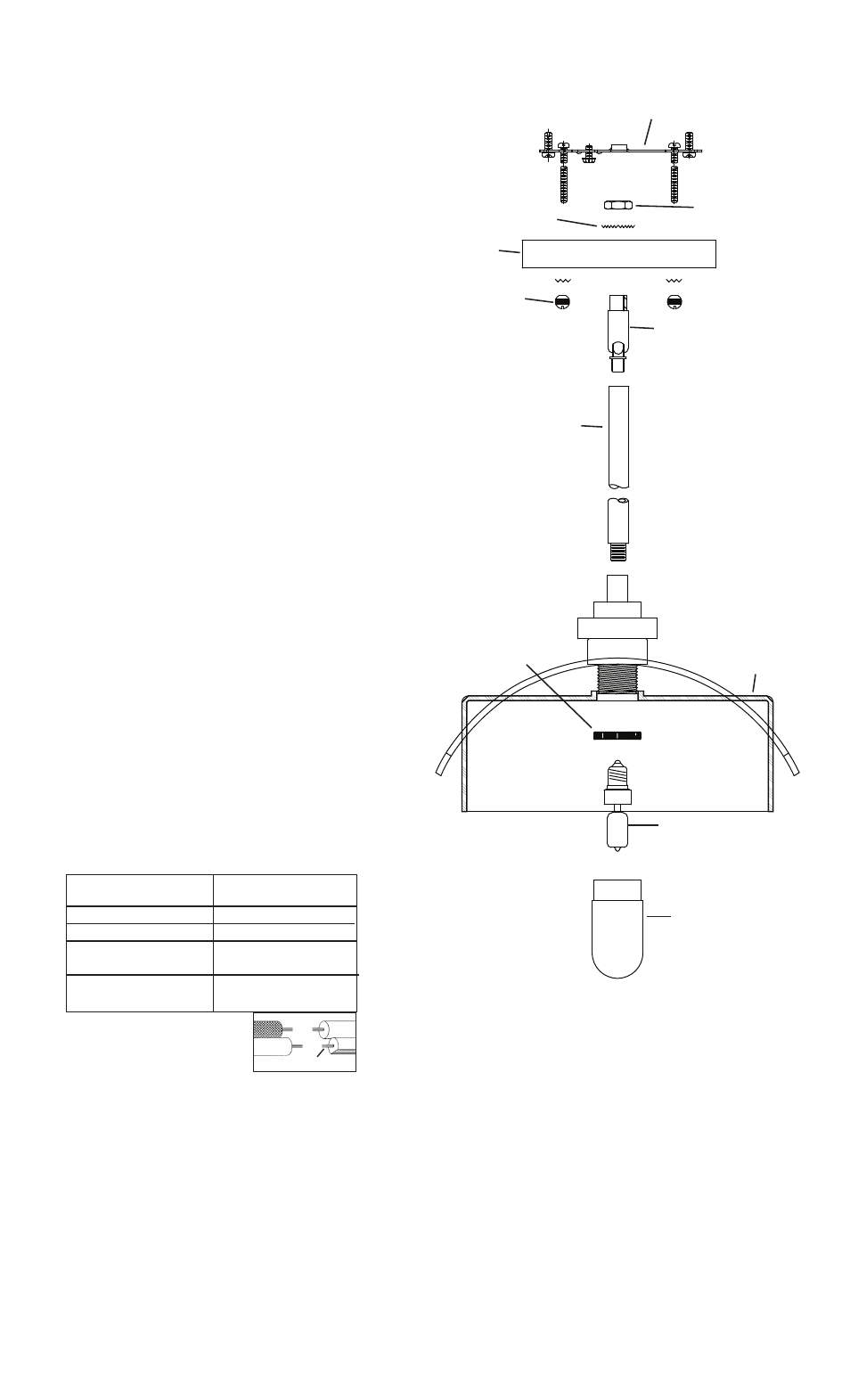

MOUNTING STRAP

PATTE DE FIXATION

CANOPY

CACHE

KNURL KNOB

BOUTON MOLETÉ

STEM

TIGE

3

SWIVEL

ROTULE

GLASS

VERRE

HEXNUT

ECROU HEXAGONAL

SOCKET RING

ANNEAU DE DOUILLE

BULB

L’AMPOULE

GLASS SLEEVE

MANCHON DE VERRE

LOCKWASHER

RONDELLE DE BLOCAGE
